Series F Intelli MESUR

F105_F305_F505_F505H

Advanced Test Frames

This family of force testers is designed for tension and compression force testing applications, with force capacities up to 500 lbF (2.2 kN). Select from vertical or horizontal orientations, along with a broad range of force sensor capacities and an expansive array of grips and fixtures.

Set up tests, record data, and analyze data via IntelliMESUR® software. From basic tests to multi-step sequencing, IntelliMESUR® is fully integrated with Series F systems. Select from a pre-configured tablet control panel or standalone software for your own Windows device.

Characterize and analyze material behavior with the optional Materials Testing Calculations Module , featuring a suite of common calculations such as tensile strength, Young’s modulus, yield point, and more.

Coefficient of Friction (COF) Measurment is also available through an optional module.

IntelliMESUR® software

Intelli Mesur® Software is an integrated solution running on Windows tablets and PCs. Select a pre-loaded 10.1” tablet with mounting bracket or use your own Windows device. With IntelliMESUR®, you can create and run a wide range of basic and multi-step tests, including:

Limit testing to a load, break, or distance
Height measurement
Load holding
Cycle testing
Multi-step testing, utilizing any combination of the above functions
Materials testing, including stress, strain, Young's modulus, yield point, and other common calculations via the optional Materials Testing Calculations module.

Run individual runs or batches, and view data in graphical format or results tables. Save or export data as needed, or generate a report.

For best performance with the Load Holding function, use a force sensor with a capacity as close as possible to the target load.

FEATURES

Rigid and precise by design

Exceptionally rigid frames feature custom extrusion designs, engineered for stiffness. Factory compensation of test frames and force sensors ensure position accuracy of ±0.002 in / 0.05 mm under any load, at any position.

Stepper motors and controllers drive a ballscrew and linear guideway for smooth, quiet operation, with virtually no speed variation under load.

Conveniently modular

Frame bases can be removed to accommodate column extensions and alternative mounting configurations. Most electronics are housed in a self-contained enclosure, easily accessed and replaced if needed. Integrated T-slots along the column accommodate add-ons.

External limit switches

Solid-state upper and lower limit switches may be used as test limits or as test exceptions. Dual-graduated rulers aid in switch placement.

Seamless force sensor interface

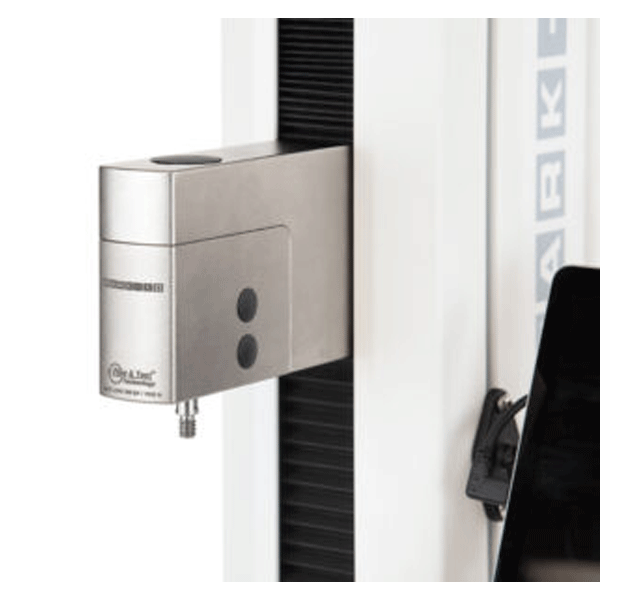

Series FS05 smart force sensors mount directly to the crosshead of models F105, F305, F505, and F505H, without any connection cables. Ranges available from 0.12 to 500 lbF [0.5 N to 2.5 kN]. Accurate to ±0.1% of full scale.

Series R07 S-beam type force sensors accommodate higher force ranges, also compatible with Plug & Test® technology. Ranges available from 50 to 1,500 lbF [250 N to 7.5 kN]. Accurate to ±0.15% of full scale.

Easy-to-service electronics

Most electronics are housed in an integrated module, easily replaced without special tools or processes.

Download Datasheet

seriesf_intellimesur_brochure

Gallery

Video

Standards

Models

Model Configuration

F105	F305	F505	F505H
*Load capacity:**	100 lbF [0.5 kN]	300 lbF [1.3 kN]	500 lbF [2.2 kN]
Maximum travel:	18.0 in [457 mm]
Speed range:	0.02 - 45 in/min [0.5 - 1,100 mm/min]
Load accuracy (% of full scale)	Test frame: ±0.1% Force sensor alone: Series FS05: ±0.1% \| Series R06: ±0.15% \| Series R07: ±0.15%
Peak sampling rate:	20,000 Hz
Data acquisition rate:	1,000 Hz
Speed accuracy:	±0.2% of setting, virtually no variation with load
Distance accuracy:	±0.002 in [0.05 mm], at any load or position, factory-compensated
Distance resolution:	0.0005 in [0.01 mm]
Limit switch repeatability:	±0.001 in [0.03 mm]
Overload protection:	Motor stops at 120% of full scale of the force sensor
Power:	Universal input 100-240 VAC, 50/60 Hz, 120W
Fuse type:	1.2 A, 250V, 3AG, SLO BLO
Weight (test frame only):	60 lb [27 kg]			70 lb [32 kg]
Shipping weight:	75 lb [34 kg]			85 lb [39 kg]
Environmental conditions:	Indoor use only Up to 6,500 ft [2,000 m] above sea level Temperature range: 40 - 95°F [5 - 35°C] Humidity range: up to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing Mains supply voltage fluctuations up to ±10 % of the nominal voltage Transient overvoltages up to the levels of Overvoltage Category II Use in environments up to Pollution Degree 2
Conformance:	CE, UKCA
Warranty:	3 years [see individual statement for further details]
