G1093

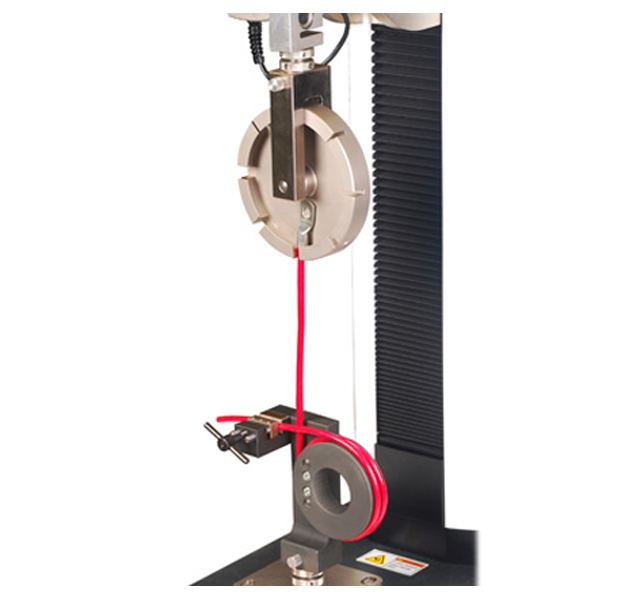

The grip secures wire terminals, cables, connectors, and other samples for high capacity wire terminal pull tests.

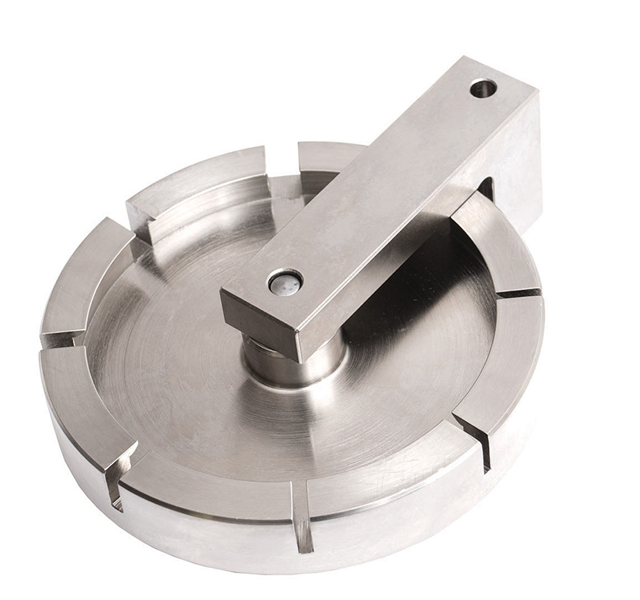

To operate, simply rotate the turret wheel to the desired size. For unique sample shapes and sizes, the wheel may be machined as required.
Integrated eye end mounting.
Features
-
Rotating turret with detents snaps to the desired slot width
-
Rugged design
Specifications
Groove sizes [IN(MM)]:
0.08 (2.0), 0.12 (3.0), 0.16 (4.0), 0.20 (5.0), 0.24 (6.0), 0.31 (8.0), 0.39 (10.0), 0.46 (11.8)
Capacity:
2,000 lbF [9 kN]
Weight:
6.4 lb [2.9 kg]
Optional Equipment
 |
Eye end adapters
Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges. |
Dimension
