Description

TABLE MODEL

CODE: E.200.TM

USAGE
To measure the compressive strength of board and corrugated board.

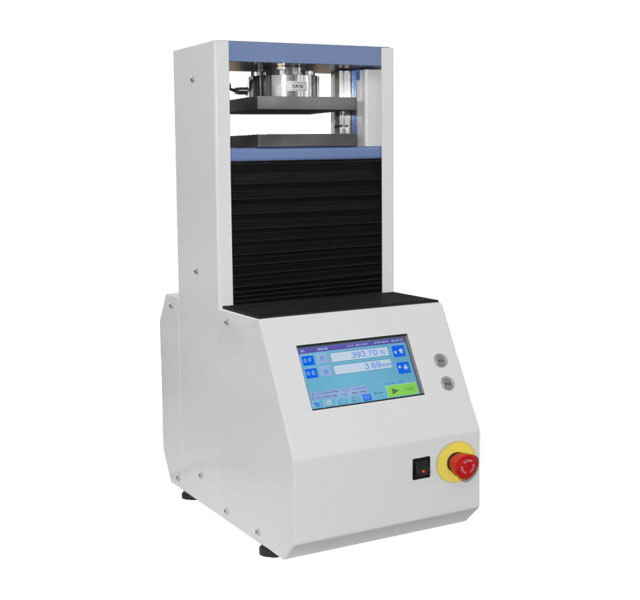

DEVICE DESCRIPTION
This device has an integrated touchscreen, which makes the operation easy and intuitive. All parts are built into a sturdy frame. The measuring ranges up to 5 kN with an accuracy of ±1% of the displayed value. The test cycle is fully automatic with break detection and return to initial position after break.

SAMPLE HOLDERS
Various sample holders are available for CCT, RCT, ECT and PAT.
For more information download the PDF file.

FEATURES
  • high quality materials and manufacturing
  • robust and sturdy construction
  • measuring range up to 5 kN with an accuracy of ±1% of the displayed value
  • intuitive and easy operation via touchscreen
  • display of the breaking force, values, graphs and statistic values
  • RS-232/USB port for data transfer and printing
  • Windows based software
  • setting of different breaking levels (e.g.: 20%, 15%, 10% of max. force)
  • graph of force/time
  • extra buttons for start and stop on the device next to touchscreen
  • emergency push button
  • CE certificate
  • additional sample holders for various crush tests available


Video

Standards

ISO 3035, 3037, 13805, 13192; TAPPI T808, T809, T811, T818, T821, T825, T893; FEFCO Nº 6-8 & 11; AFNOR 23035; etc.
