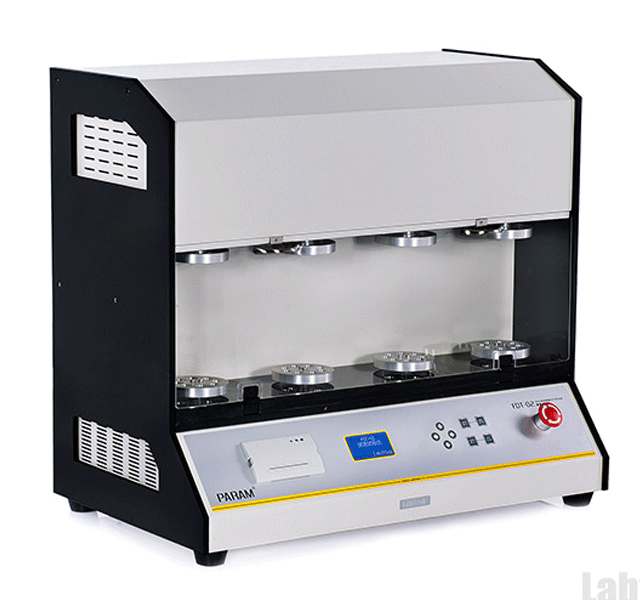

FDT-02 is professionally applicable to the determination of flex durability of flexible films, composite films, and coating films. The instrument can simulate the kneading and creasing behaviors of films happened during production, processing and transportation. The flex durability would be obtained by measuring the changes in number of pinholes or barrier properties after test, which could provide quantitative basis for package design and practical usage.
Technical Specification
|
Specifications
|
FDT-02
|
|
Flex Frequency
|
45 /minute
|
|
Tensile & Pressing Force
|
300 N
|
|
Torque
|
2 Nm
|
|
Specimen Thickness
|
≤2.5mm (Sample clamps are needed for other thickness specimen)
|
|
Flex Angle
|
440° or 400°
|
|
Horizontal Stroke
|
155 mm or 80 mm
|
|
Number of Stations
|
4
|
|
Number of Specimens
|
1 ~ 4Note
|
|
Specimen Size
|
280 mm x 200 mm
|
|
Instrument Dimension
|
715 mm (L) x 415 mm (W) x 645 mm (H)
|
|
Power Supply
|
220VAC 50Hz / 120VAC 60Hz
|
|
Net Weight
|
85 kg
|
Note: Multiple specimens share the tensile & pressing force and the torque.
Applications
This instrument is applicable to the determination of flex durability of:
|
Basic Applications
|
· Flexible Films, Composite Films and Coating Films
Including plastic films, sheets and composite films e.g. composite films, aluminized films, aluminum plastic composite films, nylon films and coating films for food or drug packages
|
|
· Paper Materials
Test the flex durability of paper materials
|
Features
-
5 standard test modes and 4 specimen stations support various combinations of test conditions
-
Quick switch between long and short strokes improves the test efficiency
-
Application of servo motor further ensures the accuracy of test results
-
Dual protection for hardware and software as well as auto reset provides a safe operating environment for customers
-
The instrument is controlled by micro-computer, with LCD, menu interface and PVC operation panel.
-
Equipped with micro-printer for convenient data transfer
