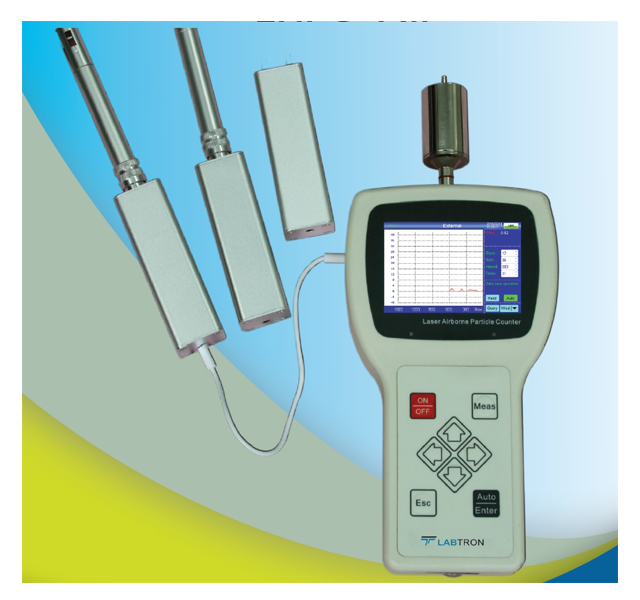

Handheld airborne particle counter LHPC-A11 is a six channel microcomputer controlled particle counter. It offers a provision of simultaneous particle counting in six different size ranges. Features like internal audible alarm and user-selectable alarm limits makes this device an ideal choice for clean room applications.
Features
-
High-resolution LCD screen for displaying particle count of all channels
-
Data conversion : ft3 and m3
-
Delay time and zero count
-
Large data storage capacity ( 260,000 records )
-
Real time error alarm and excess count limit warning
-
Battery status indication
-
Standard data communication software
-
Light weight ABS plastic body
-
External printer connectivity
-
Provision to export test results to Excel file
Applications
Used in clean room monitoring, indoor air quality testing, filter testing, tracking particle sources; monitoring of biosafety cabinets, clean benches, computer rooms and HVAC system performance.
Specifications
|
Particle size channels |
0.3 µm, 0.5 µm, 1.0 µm, 2.0 µm, 3.0 µm, 5.0 µm |
|
Flow rate |
0.1 CFM ( 2.83 L/min ) |
|
Test class |
Class 100 ∼ Class 300,000 |
|
Test period |
1 min ∼ 15 min ( 15 levels ) |
|
UCL calculation |
0.95 |
|
Light source and life |
Semiconductor laser
( ? 30,000 hours ) |
|
Self-clean time |
≤ 10 min |
|
Operating temperature range |
10 °C to 35 °C |
|
Operational humidity |
≤ 75 % RH |
|
Batteries |
Lithium battery |
|
Battery life |
? 8 hours of continuous usage |
|
Communication interface |
USB |
|
Dimensions |
245 x 130 x 45 mm |
|
Weight |
0.9 kgs |
