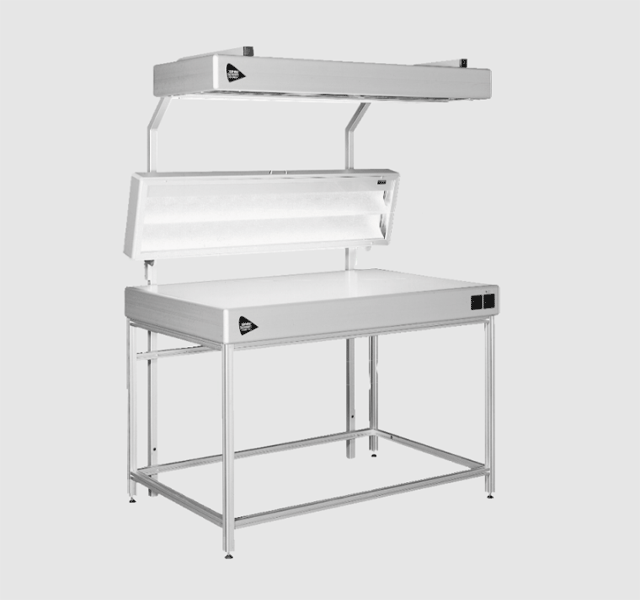

CODE: D.806.400
USAGE
For the visual examination of dirt specs in paper and board samples under different light sources.
SPECIFICATIONS
|
sturdy frame of light boxes made of silver anodized and brushed high quality aluminum
|
|
stand base made of high precision stainless steel
|
|
mounting height adjustment: 75 - 110 cm
|
|
quick start button
|
|
easy on eyes
|
|
flicker-free base
|
|
Main light box:
- outer dimension: 123 x 100 cm (W x D)
- illumination area: 116 x 93 cm (W x D)
- luminous density: 2 500 – 3 000 cd/m²
- illumination: 9 x 36 watts / 5 000 Kelvin
- continuously dimmable
|
|
Incident light with symmetrical light control:
- illumination: 4 x 26 watts / 5 000 Kelvin
|
|
Side light with asymmetrical light control:
- illumination: 2 x 36 watts / 5 000 Kelvin
|
CONNECTIONS
|
Electricity
|
230 V, 50 Hz AC
|
