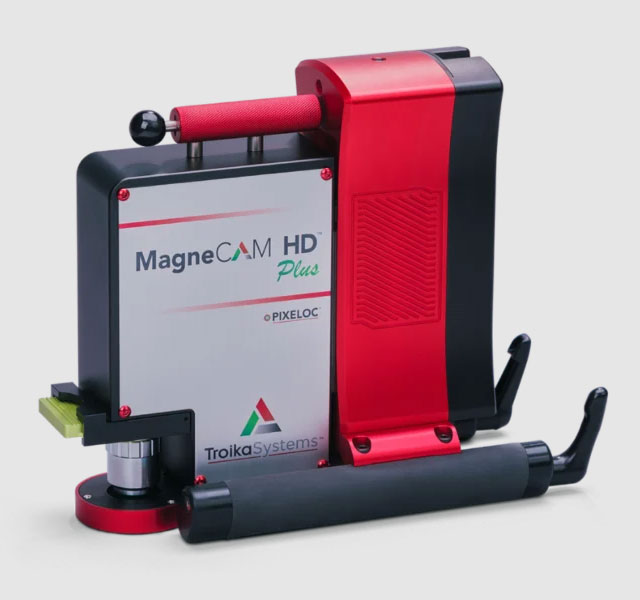

The MagneCAM HD™ Plus provides precise on-press measurements with switchable magnetic feet for placement at any angle.

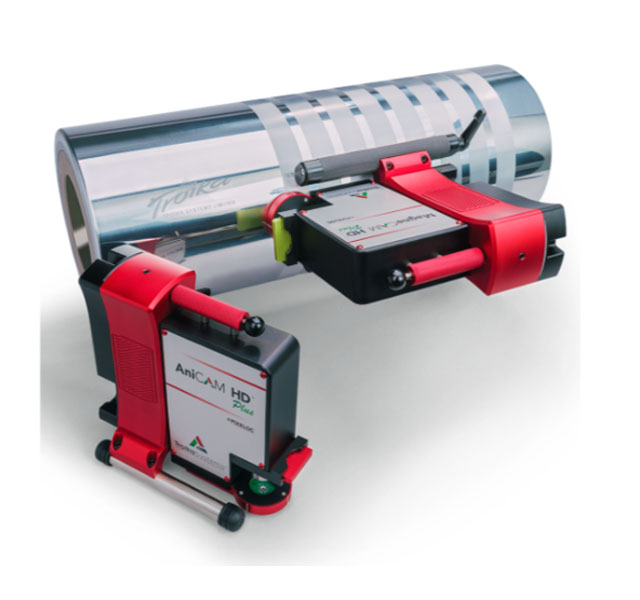

The MagneCAM HD™ Plus builds on the capability of the AniCAM and SurfaceCAM, adding a magnetic mounting system for even greater flexibility. With a precision HD sensor and switchable magnetic legs, it is designed to measure steel rolls and cylinders even in the most difficult-to-access positions.
The magnetic legs lock into place at any angle, even upside down. You can position and remove the device easily, without tools or extra handling.
It delivers the same accuracy and consistency you expect from Troika, now in places that were previously out of reach. It’s built for the pressroom, not the bench.
|
|
Magnetic Legs
Lock on. Let go. Stable From Any Angle.
The switchable magnetic legs hold firm at any angle, even upside down. Designed for mounted rolls and cylinders, they allow precise positioning directly on press or in confined spaces.
A quick flip of the patent-pending control levers locks or releases the hold. Every contact point has been carefully engineered in collaboration with roll and cylinder manufacturers to ensure a secure grip that is gentle on surfaces.
|
|
High-resolution image sensor
Sharper. Smarter. Every Pixel Counts.
MagneCAM HD™ Plus captures every detail with a precision-tuned 1024 x 768 sensor. From dot shape to engraving depth, the ultra-clear image reveals what others miss.
High-intensity LEDs enhance every scan for perfect contrast and clarity. See your anilox and plates like never before.
|
|
|
|
Quick change lenses
Easy to switch. Always precise.
Switch magnification in seconds with MagneCAM HD™ Plus quick-change lenses. Magnetic locking keeps every lens secure and perfectly aligned.
Make repeatable adjustments for perfect accuracy across the full 40 to 600 lpcm (100 to 1500 lpi) range, with depth measurements from 5 to 96 microns.
|
