Mark 10 Corporation / MESURgauge_MESURgauge Plus Load and Travel Analysis Software



MESUR™gauge and MESUR™gauge Plus expand the functionality of force and torque measuring instruments and test stands. Both programs share the ability to capture and display data in graphical format for load vs. time or load vs. travel vs. time. MESUR™gauge Plus adds the ability to control the motion of Mark-10 motorized test stands, coordinating motion control and data acquisition.

The programs include a set of tools to analyze test results, including statistical calculations, quick data export to Microsoft Excel, customizable reports, pass/fail indicators, and many others. Test setups are customizable and can be saved and recalled. The user can program test start and stop conditions, including load, time, distance, and sample break. Additional features include a large display screen for real time load and travel data and a utility to configure certain Mark-10 gauges from a PC.

Built-in simulated data generation allows MESUR™gauge or MESUR™gauge Plus to be evaluated without an instrument.

The software may be downloaded from the links below. The software is free for 90 days from date of installation, and may be activated at any time in the field.

  • Acquire continuous or single-point data from force and torque measuring instruments and test stands.
  • MESUR™gauge Plus starts and stops models ESM303, ESM303H, ESM750,ESM750S, ESM1500, and ESM1500S motorized test stands1, coordinating motion control and data collection with just one click.
  • Real time tabular and graphical data acquisition of load vs. time or load vs. travel vs. time.2
  • Configurable start and stop test triggers (time, load, number of samples, or distance).
  • Statistical calculations of acquired data. Automatically recalculates for custom data ranges.
  • One-click export to Excel.
  • Customize test setups for future recall.
  • Customize reports and report templates.
  • Configure certain Mark-10 gauges and indicators through a simple interface.

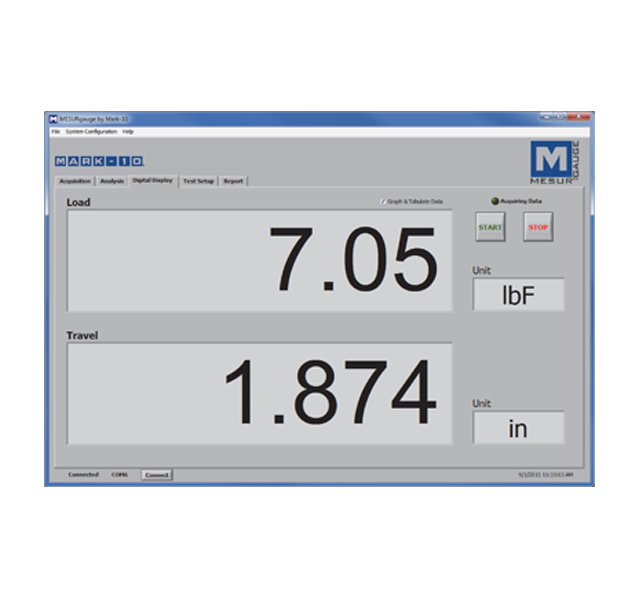

  • View real time data on a large simulated instrument display.

1. Minimum required test stand controller firmware versions:
ESM303 / ESM303H: Front: 2.02.04, Main: 2.02.04
ESM750 / ESM1500: Front: 2.02.02, Main: 2.02.02
Firmware versions are displayed at power-up. Firmware update may be done at our factory at no charge. Contact Mark-10 for details.

2. Various cables are available to connect Mark-10 gauges and test stands to a PC. Click here for more information.

Maximum data input rate depends on the equipment used, and other factors, with approximate values as follows:
- Most gauges, indicators, testers, and test stands: up to 50 Hz
- Gauge / test stand + Mitutoyo travel display: up to 2 Hz
