Advanced Energy's Trek and Monroe resistivity meters stand as epitomes of accuracy and reliability, offering precise and repeatable measurements for surface resistivity, volume resistivity, or resistance to ground. Their versatility extends to a wide range of materials, affirming their broad utility in diverse applications. These advanced meters come equipped with unique features and capabilities, ensuring superior performance and contributing to dynamic and robust operations.

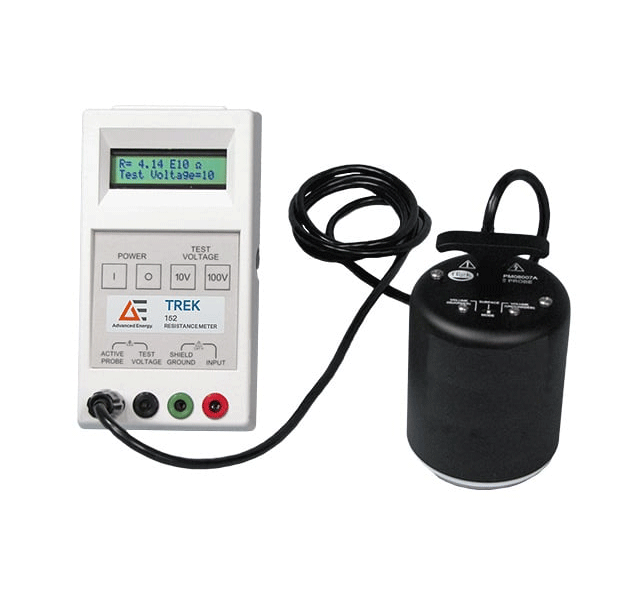

Trek 152-1 Series
Resistance Meter Designed for Precise Surface or Volume Resistance Measurements
The Trek® 152-1 resistance meter precisely measures surface or volume resistance. It features exceptional measurement accuracy and wide measurement ranges. The instrument provides consistent ease of operation even at very high resistance values. The Trek 152-1 is lightweight, portable, and operable via batteries or an AC line power source with a battery eliminator.
Features
-
Optional concentric ring probe for eliminating interferences
-
NIST-traceable Certificate of Calibration provided with each unit
Benefits
-
Realize exceptional accuracy, stability, and repeatibility
-
Complies to ANSI/ESD Association Standards
-
Gain excellent surface contact with elastomer electrode
Specifications
-
Operational temperature range (°C): 15 to 35
-
Measurement Range: 10e3 to 10e14 Ω
-
Measurement Accuracy (%): ±5%, ±8%
