CODE: P.105.XXX and P.106.XXX
USAGE
For the fast and practical pneumatic preparation of paper or board samples.
DEVICE DESCRIPTION

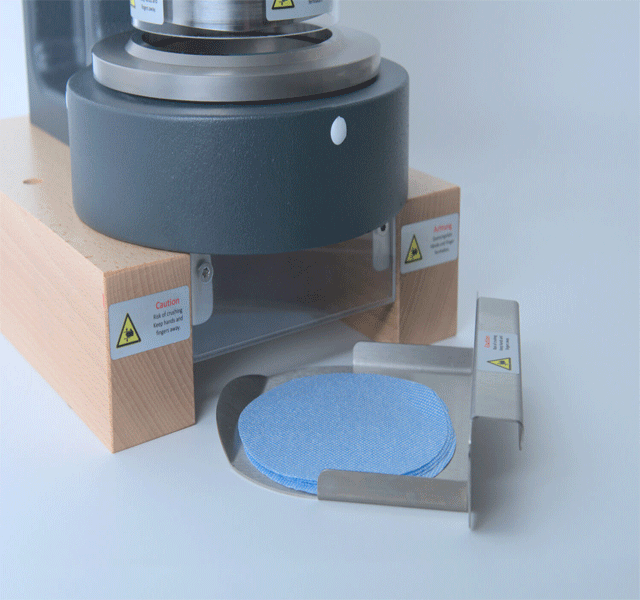

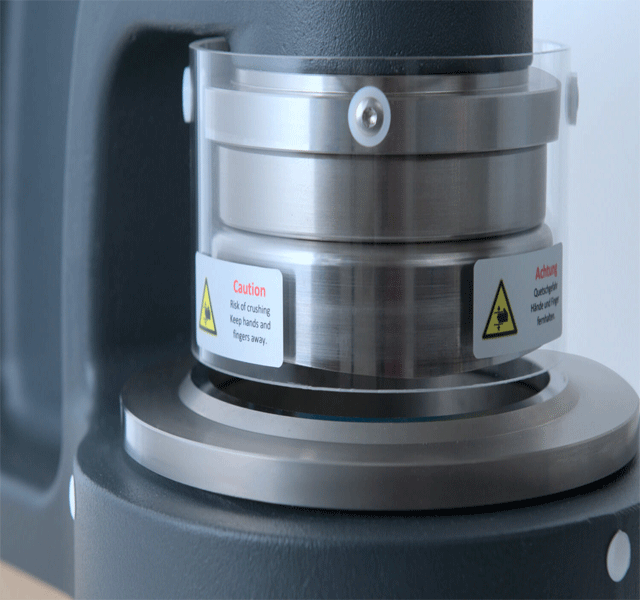

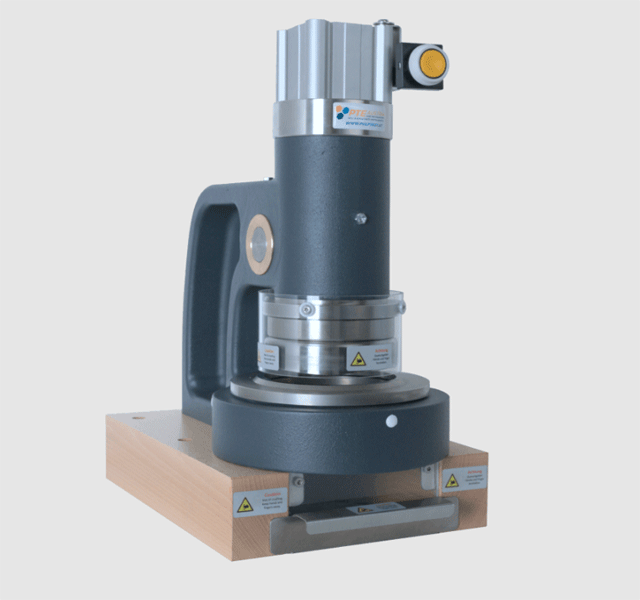

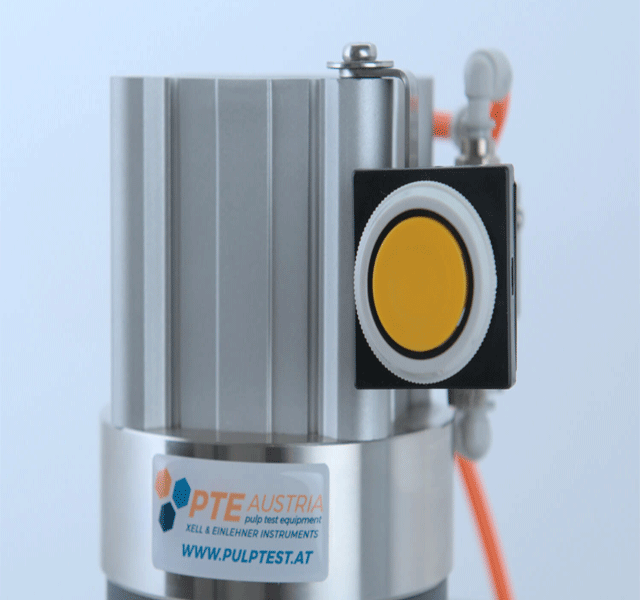

Sturdy sample punch for easy and rapid preparation of square or circular test pieces, either used for grammage determination or as sample preparation for bending stiffness, Elmendorf tear or for twin folding tests. The Grammage ranges from 30 up to 1 000 g/m² and thickness up to 4 mm. The device is equipped with a hand button and protection glass to ensure safe operation.
CONNECTIONS
|
Air
|
6 mm diameter pneumatic tube for compressed air connection (400 – 600 kPa).
|
