CODE: P.207.XXX
USAGE
To determine the tensile resistance in dry or wet state, elongation and tensile energy absorption (TEA) in paper or tissue.
DEVICE DESCRIPTION

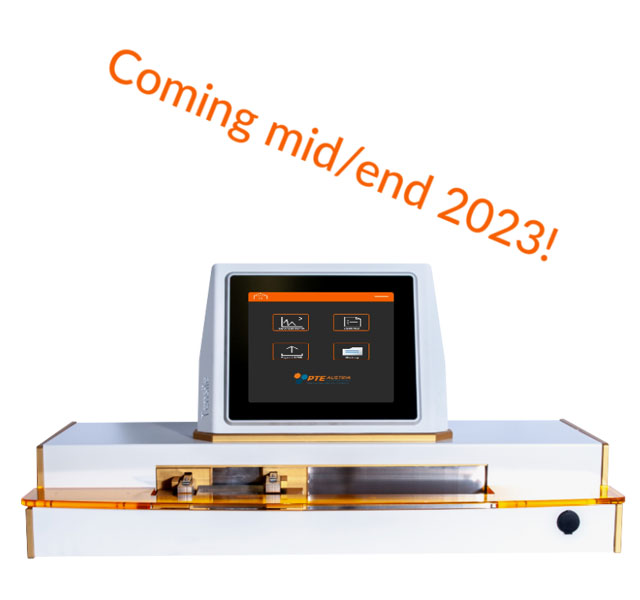

This sturdy machine is operated via touchscreen and is equipped with an easy to operate and intuitive user interface. The software has many pre-installed tests e.g. standard 100 mm tensile test for 15 mm stripes or the wet tensile test with 50 mm stripes for tissue. In the delivery included is one load cell according to customer’s choice. The pneumatically driven clamps have an automatic sample detection or can be started manually by a start button directly on the clamp holder. This is useful for transparent sample tests. The maximum distance of the clamps is 300 mm. It has an RJ 45 interface and a USB connector for maintenance and a printer connection. The device comes with different sample supports e.g. wet paper basket and a support for tensile tests (180 mm/100 mm). The test speed is adjustable from 0.2 to 330 mm/min.
FEATURES
-
easy operation via touchscreen
-
sample detection and return into initial position automatically
-
multiple safety installations (limit switch, photocell barrier, emergency switch)
-
RJ 45 and USB interface
-
water or standard tensile tests
