Description

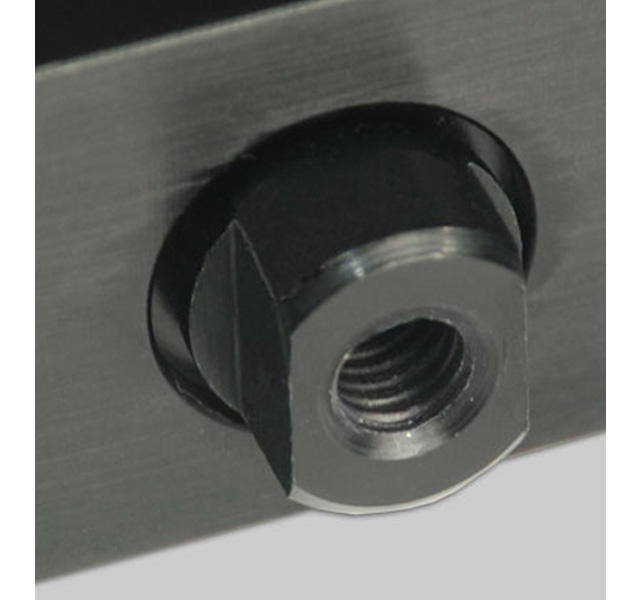

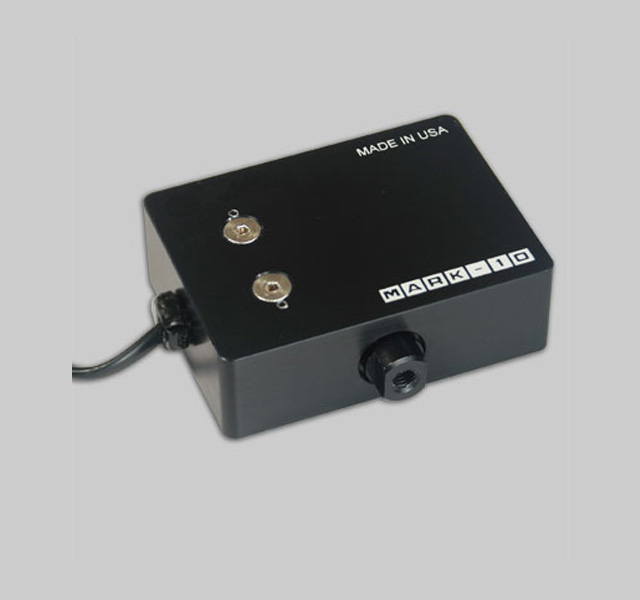

Series R03 smart sensors are designed for tension and compression measurement applications in virtually every industry. Threaded holes on two sides can accept a variety of hooks and implements, making this sensor particularly well suited for inline tests.

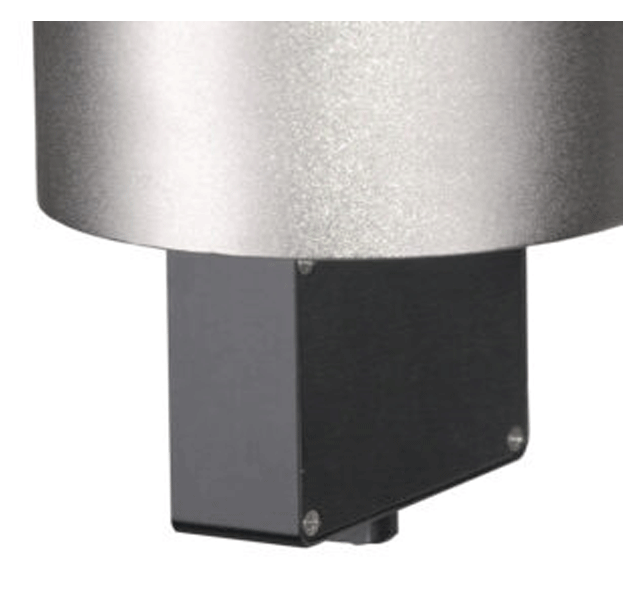

A shortened cable is available for mounting to an ESM1500LC test stand*. Capacities available from 0.25 to 100 lbF [1 to 500 N]. Compatible with Mark-10 indicators (sold separately) through unique Plug & Test™ technology.

Features :

Member of the Plug & Test® family of interchangeable sensors and indicators
Rugged aluminum housing
Measures tensile and compressive forces
NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
Warranty: 3 years

Specifications :

Accuracy: ± 0.15% of full scale + indicator
Weight:0.4 lb [0.2 kg]
Shipping weight:3 lb [1.4 kg]
HS code:MR03 (all models): 9024900000

AC1018, AC1062: 9024800000

ECCN : EAR99
Country of origin:USA

Download Datasheet

DataSheetR03

Gallery

Video

Standards

Models

Capacity x Resolution with Models 7i and 5i Indicator

Capacity x Resolution ?
Model	lbF	ozF	gF	kgF	N	mN
MR03-025	0.25 x 0.0001	4 x 0.002	100 x 0.05	-	1 x 0.0005	1000 x 0.5
MR03-05	0.5 x 0.0002	8 x 0.005	250 x 0.1	-	2.5 x 0.001	2500 x 1
MR03-2	2 x 0.001	32 x 0.02	1000 x 0.5	1 x 0.0005	10 x 0.005	-
MR03-5	5 x 0.002	80 x 0.05	2500 x 1	2.5 x 0.001	25 x 0.01	-
MR03-10	10 x 0.005	160 x 0.1	5000 x 2	5 x 0.002	50 x 0.02	-
MR03-20	20 x 0.01	320 x 0.2	10000 x 5	10 x 0.005	100 x 0.05	-
MR03-50	50 x 0.02	800 x 0.5	25000 x 10	25 x 0.01	250 x 0.1	-
MR03-100	100 x 0.05	1600 x 1	50000 x 20	50 x 0.02	500 x 0.2	-

Capacity x Resolution with Models 3i Indicator

Capacity x Resolution ?
Model	lbF	gF	kgF	N
MR03-025	0.25 x 0.0002	100 x 0.1	-	1 x 0.001
MR03-05	0.5 x 0.0005	250 x 0.2	-	2.5 x 0.002
MR03-2	2 x 0.002	-	1 x 0.001	10 x 0.01
MR03-5	5 x 0.005	-	2.5 x 0.002	25 x 0.02
MR03-10	10 x 0.01	-	5 x 0.005	50 x 0.05
MR03-20	20 x 0.02	-	10 x 0.01	100 x 0.1
MR03-50	50 x 0.05	-	25 x 0.02	250 x 0.2
MR03-100	100 x 0.1	-	50 x 0.05	500 x 0.5
