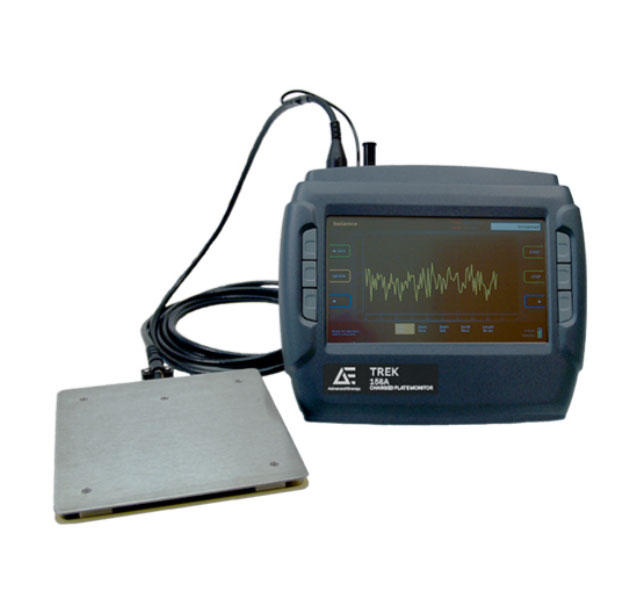

The Trek® 158A charged plate monitor is the premier instrument to evaluate the performance of air ionization systems. It features a user-friendly large 7-inch screen that is active through either touch-screen control or corresponding function keys. The data is displayed in color and may be stored internally or can be easily transferred to a USB flash drive or another USB device. A charged plate assembly is required and is sold separately (6-inch charged-plate shown).
Features
-
User-friendly compact design with superior data collection and storage capability
-
0.1 V plate voltage resolution
-
Compliance to IEC 61340-5-1 and ANSI/ESD STM3.1
-
NIST-traceable Certificate of Calibration provided with each unit
Benefits
-
Use either the 7 in touch screen or function keys for control
-
Program start and stop voltage for + and - decay time ionizer tests
-
Realize more than six hours of continuous operation with the battery-operated instrument
-
Use the PC memory card port for ample data storage and easy data transfer
Specifications
-
Operational temperature range (°C): 5 to 35
-
Measurement Range: 0 to ±1100 V
-
Measurement Accuracy (%): 0.001
-
Communications Interface: USB
