VP_1000 vertical load tester

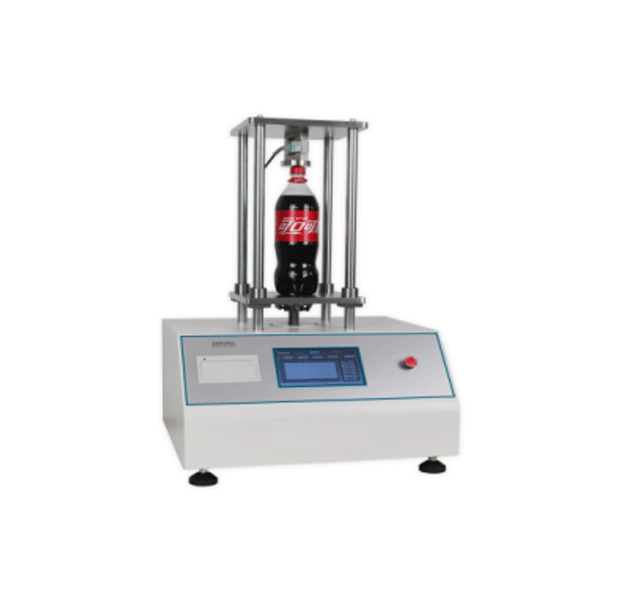

                VP_1000 vertical load tester is used to detect the top pressure strength, top pressure deformation, flat pressure and side pressure strength of PET bottles or metal cans. The test results can be used as an important basis for controlling and improving product quality; And a number of international test standards; the optimized design of the instrument makes operation and maintenance easier.
Test principle
                The plastic bottle is clamped between the two chucks of the vertical load tester fixture, and the two chucks move relative to each other. The force value sensor on the moving chuck and the displacement sensor built in the machine are used to collect the force during the experiment Value change and displacement change, thereby calculating the compressive strength performance index of the sample.
Technical index
  • Measuring range: 0-1000 / 0-3000 / 0-5000 / 0-10000 N (customized according to requirements)
  • Resolution: 0.001N
  • Displacement accuracy: 0.5 level
  • Test speed: 1-500mm / min (stepless speed regulation)
  • Division: 1N (measurement range below 5000N) / 10N (measurement range above 10000N)
  • Sample size: diameter 0-150mm, height: 80-300mm (other sizes can be customized)
  • Dimension: 500mm (L) x 450mm (W) x 750mm (H)
  • Net weight: 70kg
