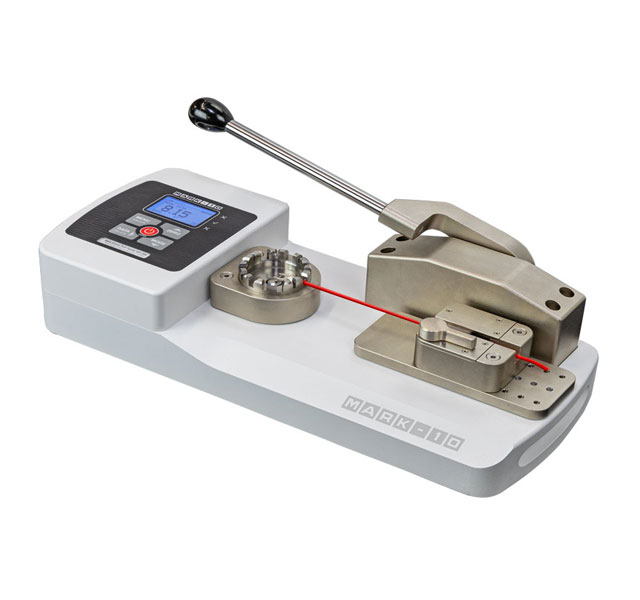

Measure wire crimp pull forces accurately and efficiently with the portable and customizable WT-205 tester. Easily apply up to 200 lbF (1,000 N) of force via an ergonomic lever. The tester's standard adjustable terminal fixture contains multiple slots for diameters up to AWG 3 (0.25 in [6.3 mm]), while the self-tightening wedge grip securely clamps the free end of the cable.
A backlit graphic LCD displays real-time force, peak force, unit of measurement, and pass/fail indicators. Green and red pass/fail indicators may also be used. A load bar on the display shows when an overload is approaching.
Transfer data to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. The WT-205 stores up to 1,000 readings and calculates statistics. Upon sample break, the tester can automatically save and output the peak force and auto-zero in preparation for the next test, increasing testing efficiency.
Features
-
Measures real-time and peak force values
-
Ergonomic lever operation produces 200 lbF [1,000 N]
-
USB, RS-232, Mitutoyo (Digimatic), and analog outputs
-
Automatic output / data storage / zeroing upon sample break helps automate testing processes
-
1,000-point data memory with statistics and outputs
-
Password protection prevents unauthorized changes
-
Programmable set point indicators and outputs for pass/ fail determination
-
High-speed 7,000 Hz sampling rate accurately captures peak force values
-
Configurable audio alarms and key tones
-
Mounting holes for bench mounting
Optional Functions
Any of these optional functions may be purchased at time of order or may be enabled in the field at a later date through a simple activation process. A complete options package is also available, including all of the listed features at a discounted price. The tester is shipped in Demo Mode, during which time all available functions are enabled for 160 hours of operation.
|
Feature |
Part No. |
Description |
|
Profiles |
WF010 |
Save and recall sets of test parameters, such as speed, pass/fail limits, unit of measurement, etc.
Maximum of 500 profiles may be stored. |
|
Date and time stamp |
WF013 |
A date and time stamp is applied to each saved data point. |
|
Complete options package |
WFCOMP-205 |
Includes all optional functions listed above. |
