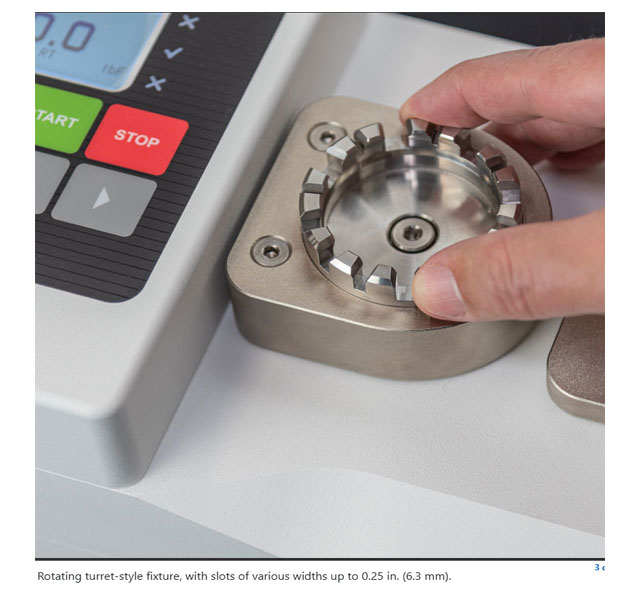

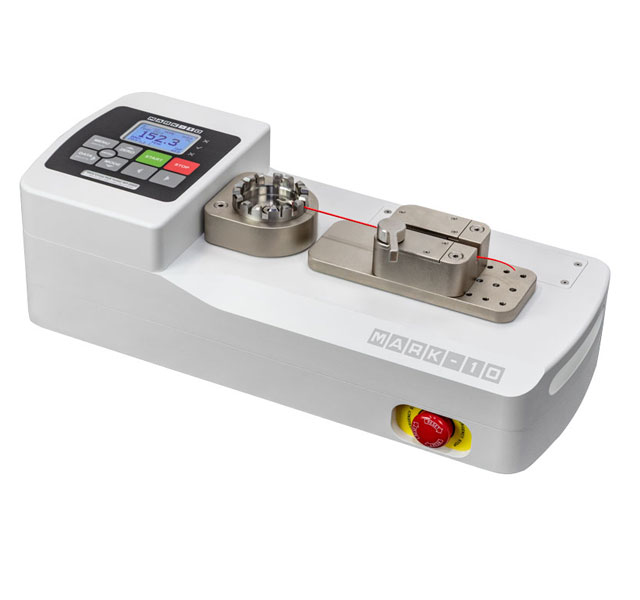

Measure wire crimp pull forces up to 200 lbF [1 kN] accurately and efficiently with the WT-205M motorized pull tester. Portable and customizable, the tester conforms to numerous UL, ISO, ASTM, SAE, MIL, and other requirements for destructive and non-destructive testing. Pull to break, pull to load, or maintain a load for a specified period of time (optional functions), as per the requirements of UL 486A/B. Programmable pass/fail limits with red and green indicators and audio alerts help identify non-conforming samples. The tester's standard adjustable terminal fixture contains multiple slots for diameters up to AWG 3 (0.25 in [6.3 mm]), while the self-tightening wedge grip securely clamps the free end of the cable. To accommodate a wide range of materials, optional and interchangeable alternative grips are available. Samples can be sent to Mark-10 for evaluation and recommendation prior to purchase. The WT-205M stores and calculates statistics for up to 2,000 readings, with available date and time stamps for each saved data point. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. Upon sample break, the tester can auto-reverse, save and output the peak force, and auto-zero in preparation for the next test, increasing testing efficiency. The available Profiles function allows the user to create and save test setups for quick recall. The WT-205M includes MESUR® Lite data acquisition software. MESUR® Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.
Features :
-
Measures real-time and peak force values
-
Selectable test speed, w/high speed approach and reverse
-
Auto-reverse at sample break or load
-
USB, RS-232, Mitutoyo (Digimatic), and analog outputs
-
Automatic reverse / output / data storage / zeroing upon sample break helps automate testing processes
-
2,000-point data memory with statistics, output, and date and time stamp (date and time stamp is optional)
-
Password protection prevents unauthorized changes
-
Pass / fail indicators, audio alerts, and outputs
-

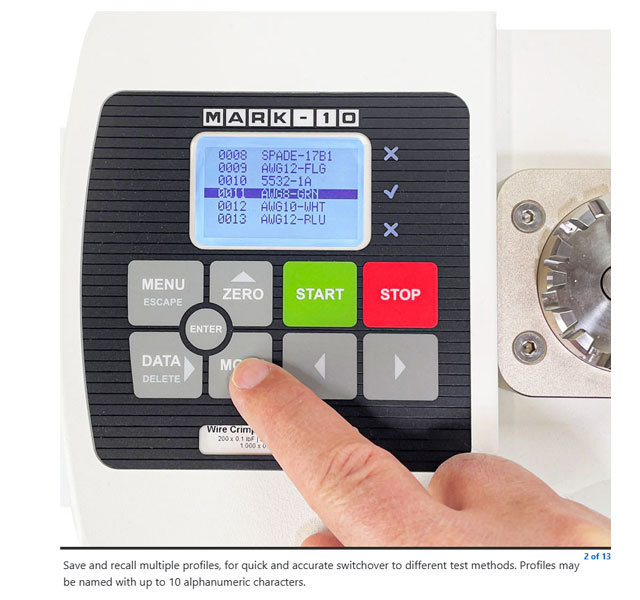

Save and recall up to 500 profiles for various test requirements (optional function)
-
Pull to a specified load or maintain load for a specified period of time, as per UL 486A/B (optional functions)
-
Date / time stamp for all saved data (optional function)
Optional Functions :
Any of these optional functions may be purchased at time of order or may be enabled in the field at a later date through a simple activation process. A complete options package is also available, including all of the listed features at a discounted price. The tester is shipped in Demo Mode, during which time all available functions are enabled for 160 hours of operation.
|
Feature |
Part No. |
Description |
|
Profiles |
WF010 |
Save and recall sets of test parameters, such as speed, pass/fail limits, unit of measurement, etc.
Maximum of 500 profiles may be stored. |
|
Pull to load |
WF011 |
The tester will stop when the specified load has been reached. |
|
Load holding |
WF012 |
The tester will stop and maintain a specified load for a specified period of time. |
|
Date and time stamp |
WF013 |
A date and time stamp is applied to each saved data point. |
|
Complete options package |
WFCOMP-205M |
Includes all optional functions listed above. |
