Description

Model WT-205

Wire Crimp Pull Tester

Measure wire crimp pull forces accurately and efficiently with the portable and customizable WT-205 tester. Easily apply up to 200 lbF (1,000 N) of force via an ergonomic lever.

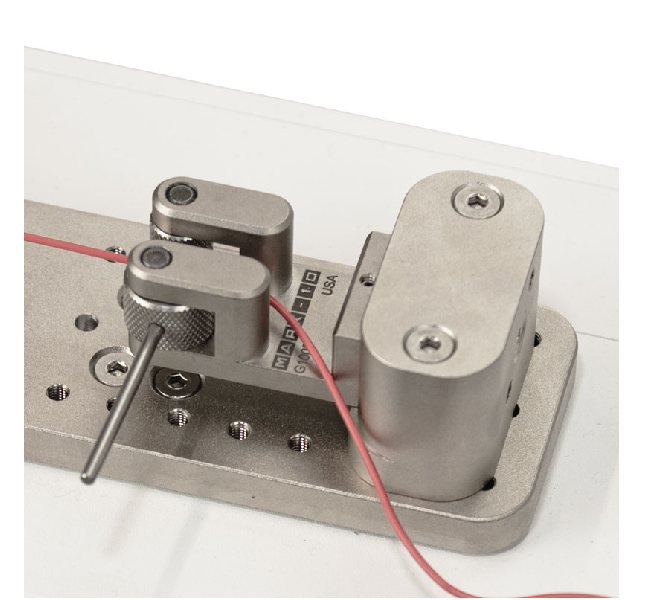

The tester's standard adjustable terminal fixture contains multiple slots for diameters up to AWG 3 (0.25 in [6.3 mm]), while the self-tightening wedge grip securely clamps the free end of the cable.

A backlit graphic LCD displays real-time force, peak force, unit of measurement, and pass/fail indicators. Green and red pass/fail indicators may also be used.

A load bar on the display shows when an overload is approaching.

Transfer data to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. The WT-205 stores up to 1,000 readings and calculates statistics.

Upon sample break, the tester can automatically save and output the peak force and auto-zero in preparation for the next test, increasing testing efficiency.

Features

Measures real-time and peak force values
Ergonomic lever operation produces 200 lbF [1,000 N]
USB, RS-232, Mitutoyo (Digimatic), and analog outputs
Automatic output / data storage / zeroing upon sample break helps automate testing processes
1,000-point data memory with statistics and outputs
Password protection prevents unauthorized changes
Programmable set point indicators and outputs for pass/ fail determination
High-speed 7,000 Hz sampling rate accurately captures peak force values
Configurable audio alarms and key tones
Mounting holes for bench mounting

Specifications

Capacity x Resolution: 200 x 0.1 lbF, 3200 x 2 ozF, 100 x 0.05 kgF, 1000 x 0.5 N, 1 x 0.0005 kN
Accuracy: ±0.2% of full scale
Wire gauge range*: AWG30 - AWG3*
Wire diameter range: 0.01 - 0.25 in [0.3 - 6.3 mm]
Minimum sample length: 2.1 in [53.3 mm], excluding termination
Maximum sample elongation: 1.70 in [43.2 mm]
Power: AC adapter: 100-240VAC, 50-60 Hz, 0.3A, Battery: Rechargeable 8.4V NiMH Low battery indicator appears when battery level is low, and tester powers off automatically when power reaches critical stage.
Battery Life: Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Sampling rate: 7,000 Hz
Outputs: USB / RS-232: Configurable up to 115,200 baud. .
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible Devices.
Analog: ±1 VDC, ±0.25% of full scale at capacity.
Set points: Three open drain lines, 40 VDC max., 100 mA DC max.
Safe overload: 150% of full scale (display shows "OVER" at 110% and above)
Weight: 16.1 lb [7.3 kg]
Shipping weight: 24.5 lb [11 kg]
