Series TT03C Digital Torque Gauges

Force & Torque Measurement

Series TT03C digital cap torque gauges are quick and economical solutions for basic handheld cap torque testing. These portable instruments eliminate the need to secure closures in a fixture or more elaborate testing system. A dedicated remote torque sensor with Jacobs chuck is supplied with a

Request Quote Download Datasheet

Ask a question →

Full Description

universal grip for caps from 0.65 - 1.55 in (16.5 - 39.4 mm) diameter.

The gauges include MESUR™ Lite data acquisition software, for tabulation of continuous or individual data points. One-click export to Excel allows for further data manipulation.

Series TT03C gauges consist of a Series TT03 torque gauge and G1053 cap grip.

Features

Ergonomic torque sensor with Jacobs chuck
Peak torque values saved and displayed
High-speed 2,000 Hz sampling rate

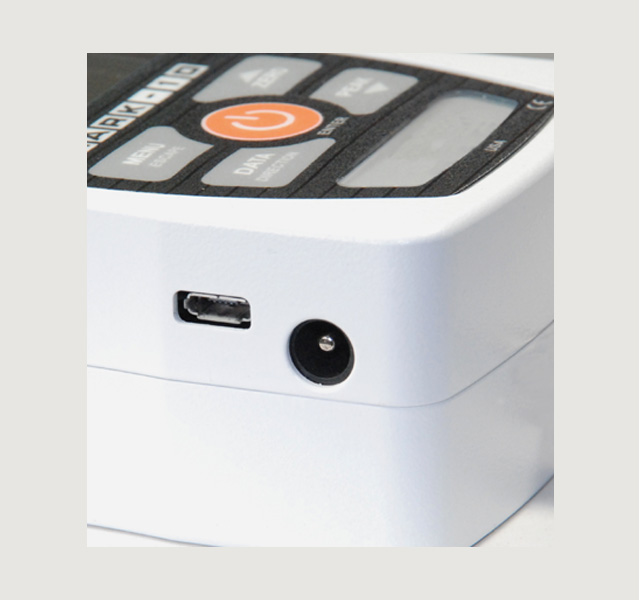

USB data output of continuous or individual data points
Programmable set points with pass/fail indicators

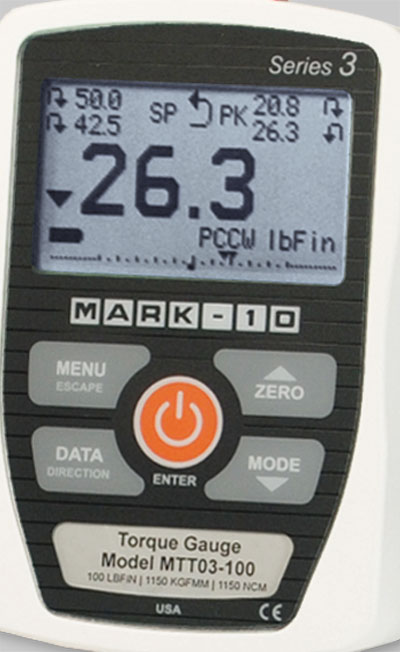

Live load bar graphs with set point markers
Peak memory for clockwise and counter clockwise readings
Set points always displayed
Configurable audio alarms and key tones
MESUR™ Lite data collection software included
Battery or AC operation
Safe overload: 150% of capacity

Specifications

Accuracy:	±0.5% of full scale
Cap dia. range	0.65 - 1.55 in [16.5 - 39.4 mm]
Sampling rate:	2,000 Hz
Power:	AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery life:	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Measurement units:	lbFin, ozFin, Ncm
USB output:	Configurable to 115,200 baud.
Safe overload:	150% of full scale (display shows “OVER” at 110% and above)
Weight:	2.2 lb [1.0 kg]
Shipping weight:	4 lb [1.8 kg]

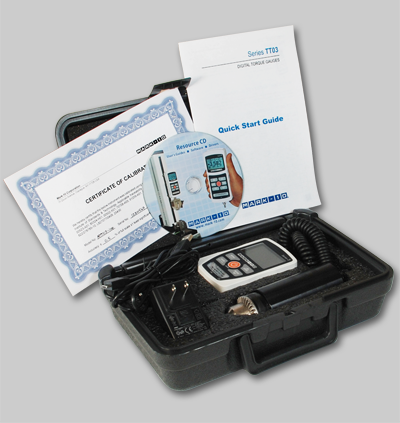

Included items:	Carrying case, universal voltage AC adapter, battery, chuck key, quick-start guide, USB cable, resource CD (USB driver, MESUR ® Lite software, MESUR ® gauge and MESUR ® gauge Plus 90-day trial, and user's guide), NIST-traceable certificate of calibration (data is available for an additional charge).
Environmental requirements:	40°F – 100°F [5°C – 45°C], < 96% humidity (non-condensing)
Warranty:	3 years (see individual statement for further details)
HS code:	Model no.	HS code:
MTT03C (all models)	9024100000
CERT 15-1004 AC1111 AC1118 AC1030 AC1031 AC1032 AC1035 AC1123	9024800000
ECCN:	EAR99
Country of origin:	USA
