Trek 520 Series Active Hand-Held Electrostatic Voltmeters
Hand-Held Electrostatic Voltmeters for ESD Applications.
Full Description
The Trek® 520 voltmeters are not your typical hand-held field-meter. Their measurement technology provides surface voltage measurements that are essentially independent of the sensor probe-to-measured surface spacing. The Trek® 520 is available in two versions: 520-1 and 520-2. The Trek® 520-1 has a digital meter to display the measured voltage. On the other hand, the Trek® 520-2 has an analog output monitor in addition to the digital display. This analog output monitor can be used to record the measured voltage or to view it on an oscilloscope.
Features
- Chopper stabilized for drift-free operation in ionized environments
- NIST-traceable Certificate of Calibration provided with each unit
Benefits
- Accurately measure surface voltage at a wide range of spacings
- No need to maintain a fixed spacing
Specifications
| Measurement Range: | 0 to ±20000 V |
|---|---|
| Measurement Accuracy (%): | ±5% |
| Speed of Response (ms): | 400 |
More from Trek Inc / Monroe Electronics
View all Trek Inc / Monroe Electronics products →
Resistivity Meters
Advanced Energy's Trek and Monroe resistivity meters stand as epitomes of accuracy and reliability, offering precise…
Electrostatic Fieldmeter Static Monitor model 177A
Multi-point Fieldmeter and Alarm System. Detect static buildup before it becomes a problem.
Monroe 288C Series Charge Plate Monitor
Easy-to-Use Charge Plate Monitor For Manual or Automated Testing
Trek 156A Series Charge Plate Monitor
Charge Plate Monitor for Evaluating the Performance of Air Ionizers Used to Neutralize Static Charges
Trek 157 Series Charged Plate Monitor
That Offers Better Accuracy, Stability, and Bandwidth Than Conventional Designs
Trek 158A Series Compact Charged Plate Monitor
The Trek® 158A charged plate monitor is the premier instrument to evaluate the performance of air ionization systems.
Monroe 282 Series Portable Fieldmeter and Voltmeter
Non-contacting Static Meters for Consistently Accurate Readings. The MonroeTM 282 series StatArcTM fieldmeters are…
The Monroe 287B Ionizer Performance Analyzer
Performs manual or automatic decay and balance tests for periodic verification of ionization equipment.

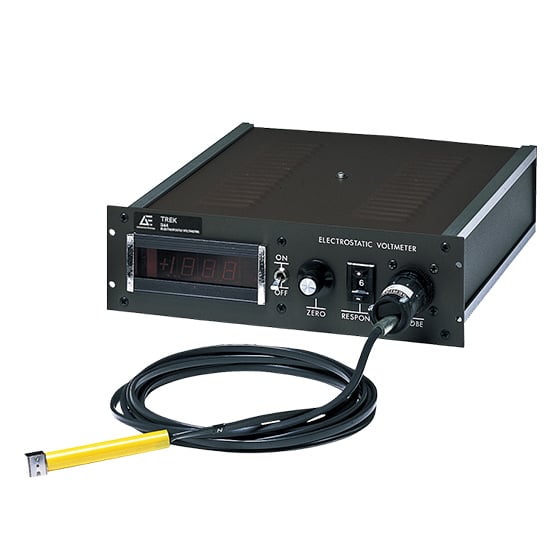

Trek 344 Series Precision Electrostatic Voltmeter
Precision, Non-Contacting Electrostatic Voltmeter for Surface Voltage Measurements 0 to ±2 kV DC or Peak AC
Trek Non-Contacting Voltmeter Probes
We offer an assortment of probes with multiple views, shapes, and aperture sizes available.

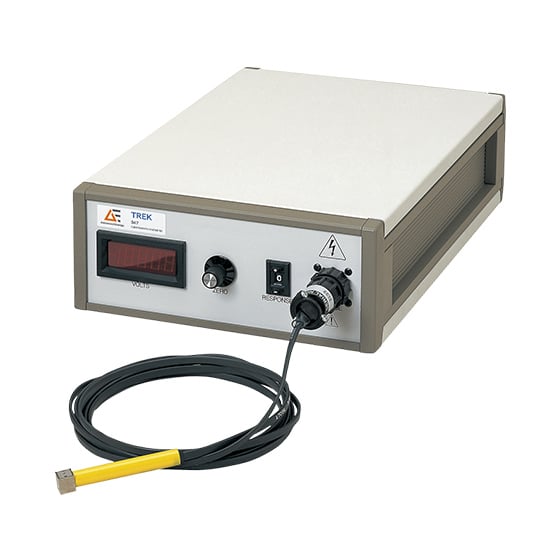

Trek 347 Series Non-Contacting, Economical Electrostatic Voltmeter
