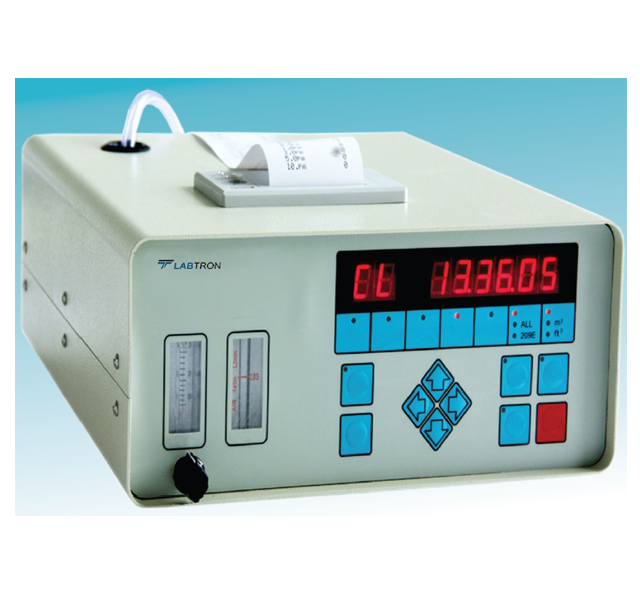

Dual Flow Particle Counter LDPC_A10
Dual flow particle counter LDPC-A10 is a six channel microcomputer controlled unit. It employs dual flow rate and a built-in air pump. It features a provision of simultaneous counting of six different size ranges with real time monitoring.
Full Description
Dual flow particle counter LDPC-A10 is a six channel microcomputer controlled unit. It employs dual flow rate and a built-in air pump. It features a provision of simultaneous counting of six different size ranges with real time monitoring. The particle count data can be conveniently viewed, downloaded or printed directly using the in-built printer.
Features
- Data conversion : ft3 and m3
- Data display modes : Counts, Counts/m3, Counts/ft3
- Built-in air pump
- UCL calculation
- Built-in printer with multiple print-mode
- Large data storage capacity
- Date and time display
- Rechargeable battery
Applications
Used in clean room monitoring, indoor air quality testing, HEPA filter performance testing, tracking particle sources, detects environmental purification levels; monitoring of biosafety cabinets, clean benches, computer rooms, HVAC system performance, food and beverage packing, hospitals: pharmacy and surgery, medical device assembly, aerospace assembly, paint spray booths, etc.
Specifications
| Particle size channels | 0.3 µm, 0.5 µm, 1.0 µm, 3.0 µm, 5.0 µm, 10.0 µm 0.3 µm, 0.5 µm, 1.0 µm, 2.0 µm, 3.0 µm, 5.0 µm |
| Flow rates | 2.83 L/min 50 mL/min |
| Sensitivity | 0.3 µm |
| Test class | Class 100 ∼ Class 300,000 |
| Test period | 1 min ∼ 10 min ( 10 levels ) |
| Life of light source | ? 30,000 hours |
| Self-clean time | ≤ 10 min |
| Operating temperature range | 10 °C to 35 °C |
| Operational humidity | ≤ 75 % RH |
| Power | 220 V ± 10 %, 50 Hz ± 2 Hz |
| Power dissipation | 15 W |
| Dimensions | 215 x 255 x 110 mm |
| Weight | 2.6 kgs |
