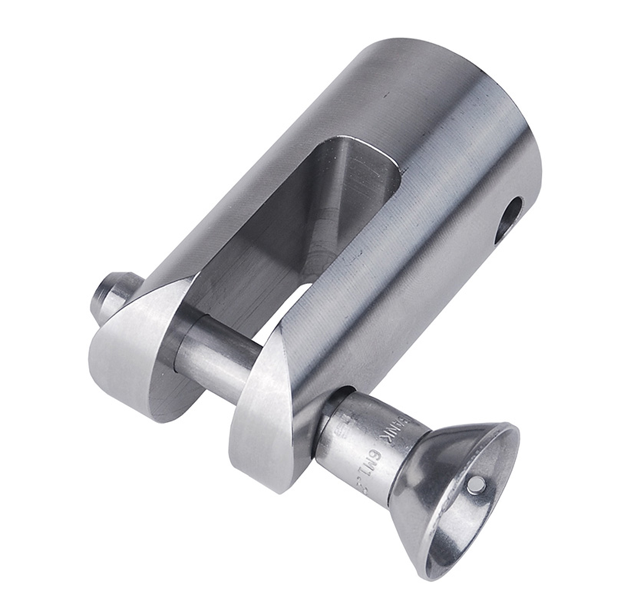

High Capacity Clevis Grip

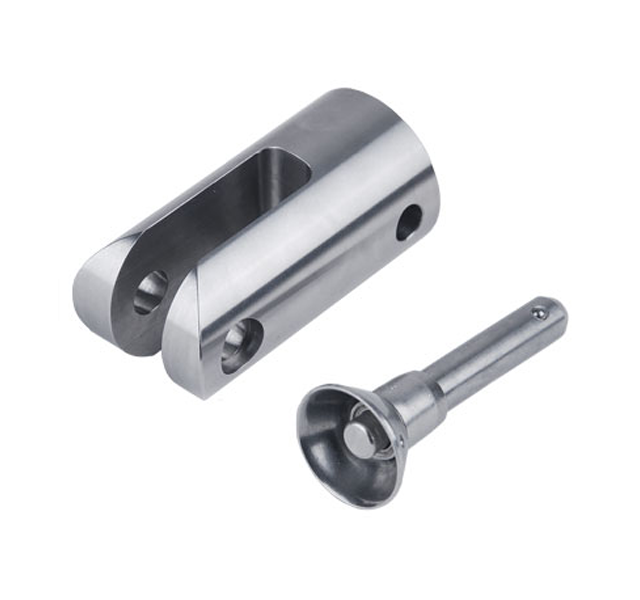

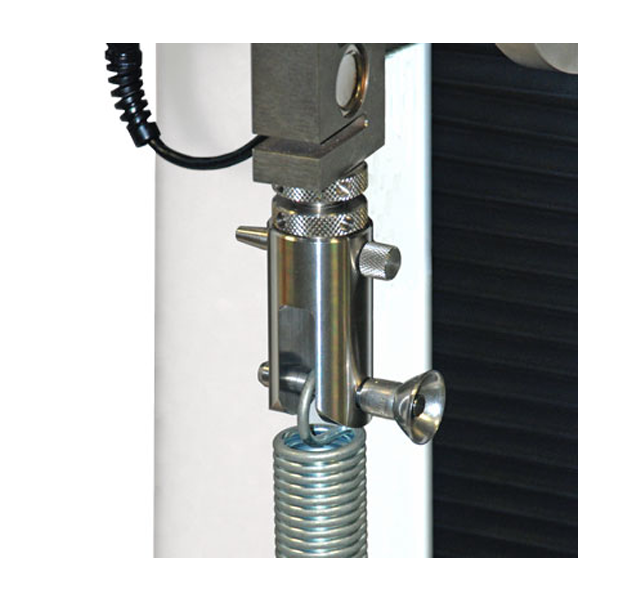

This grip is designed for various pull testing applications, including extension spring testing, chain link break force testing, and other applications. A spring loaded pin with ball plunger locks into place, for added safety during testing.
Also searched as: high capacity clevis grip mark-10 corporation grips and attachments
Full Description
G1090
This grip is designed for various pull testing applications, including extension spring testing, chain link break force testing, and other applications. A spring loaded pin with ball plunger locks into place, for added safety during testing.
Includes integrated eye end mounting, and requires an eye end adapter to mount to Mark-10 force gauges or force sensors, and test stands.
Specifications
Capacity:
2,000 lbF [9 kN]
Weight:
0.78 lb [0.35 kg]
Shipping weight
2 lb [0.9 kg]
Optional Equipments
Eye end adapters Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges.
Models
| A | B | C | ØD | E | F | ØG | ØH | ØI |
|---|---|---|---|---|---|---|---|---|
| 2.77 [70.4] | 1.80 [45.7] | 0.55 [14.0] | 1.40 [35.6] | 2.32 [58.9] | 0.87 [22.1] | 0.63 [15.9] | 0.32 [8.0] | 0.38 [9.7] |
