Myometer Kit Series EKM5

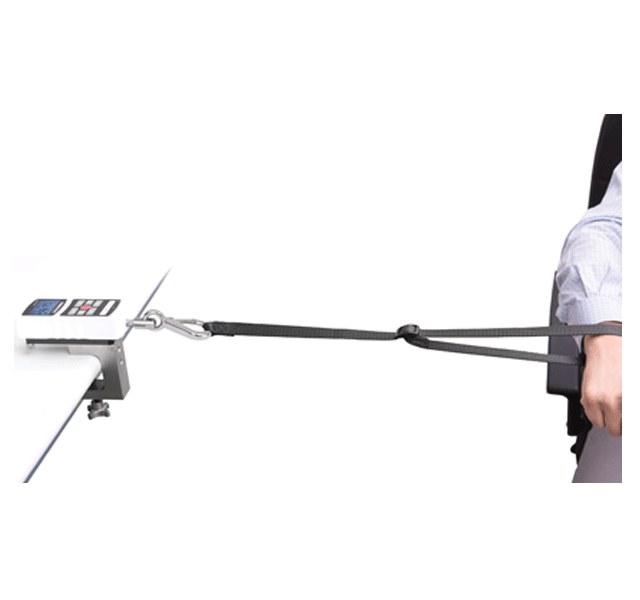

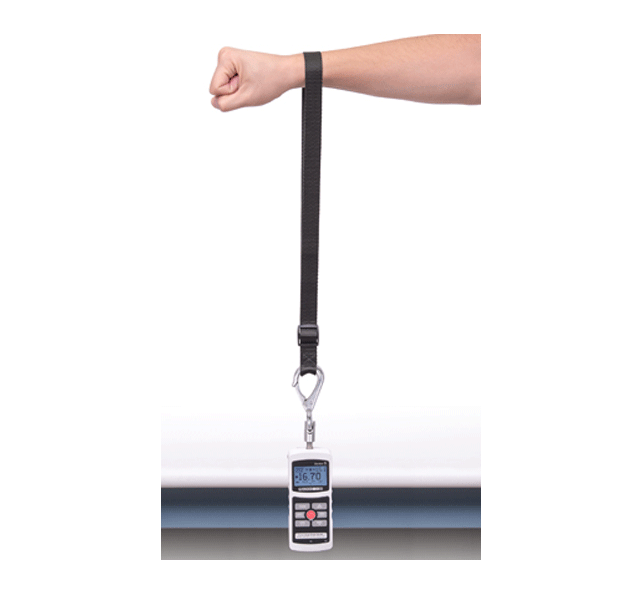

The Model EKM5-200 Myometer Kit facilitates a wide range of strength assessments and ergonomics studies. Featuring a Series 5 force gauge with 200 lbF (1,000 N) range, tabletop mount, strap, and accessories, this kit is ideal for ergonomists and other professionals.
Full Description
The Model EKM5-200 Myometer Kit facilitates a wide range of strength assessments and ergonomics studies. Featuring a Series 5 force gauge with 200 lbF (1,000 N) range, tabletop mount, strap, and accessories, this kit is ideal for ergonomists and other professionals.
Force Gauge Features
- Measures real time, average, and peak pull and push forces
- 200 lbF (1,000 N) force capacity
- Accuracy of ±0.1% of full scale
- Sampling rate of 7,000 Hz
- USB, RS-232, and analog outputs
- High / low limit indicators, for pass / fail and minimum force testing
- 1,000-point data memory with statistical calculations. Data may be bulk downloaded to included MESUR® Lite data collection software.
- Force gauge is compatible with other Mark-10 grips and attachments
Force Gauge Specifications
| Accuracy: | ±0.1% of full scale |
| Sampling rate: | 7,000 Hz |
| Power: | AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low. |
| Battery life: | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
| Capacity x Resolution: | 200 x 0.05 lbF, 3200 x 1 ozF, 100 x 0.02 kgF, 1000 x 0.2 N, 1 x 0.0002 kN |
| Outputs: | USB / RS-232: Configurable up to 115,200 baud. Automatic output available up to 250 Hz. Includes Gauge Control Language 2 for full computer control. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1 VDC, ±0.25% of full scale at capacity General purpose: Th |
| Safe overload: | 200% of full scale (display shows “OVER” at 110% and above) |
| Warranty: | 3 years (see individual statement for further details) |
