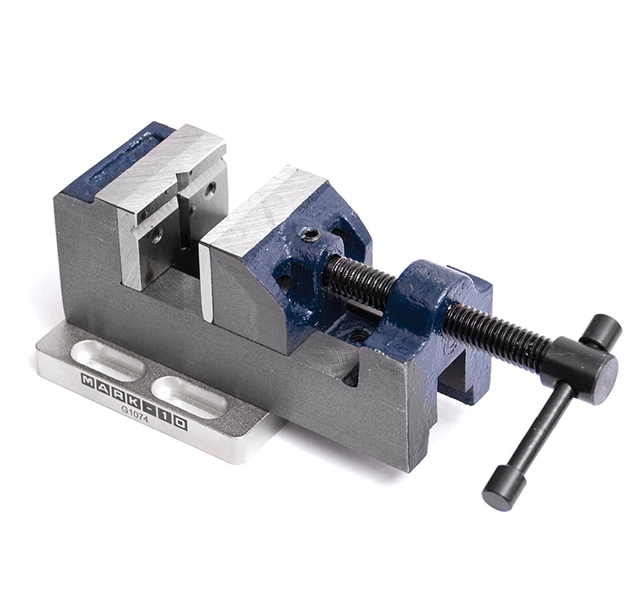

Vise Grip_ Standard
This general purpose vise can be used in a wide range of tension and compression testing applications. Wide opening range accommodates large and unique samples. Rugged design permits testing up to 500 lbF (2,500 N).
Also searched as: vise grip standard mark-10 corporation grips and attachments
Full Description
G1074
This general purpose vise can be used in a wide range of tension and compression testing applications. Wide opening range accommodates large and unique samples. Rugged design permits testing up to 500 lbF (2,500 N).
The G1106 self-centering vise grip offers smooth removable jaws can be field-modified to improve sample gripping characteristics as required for pull testing applications.
Features
- For general tension and compression testing applications

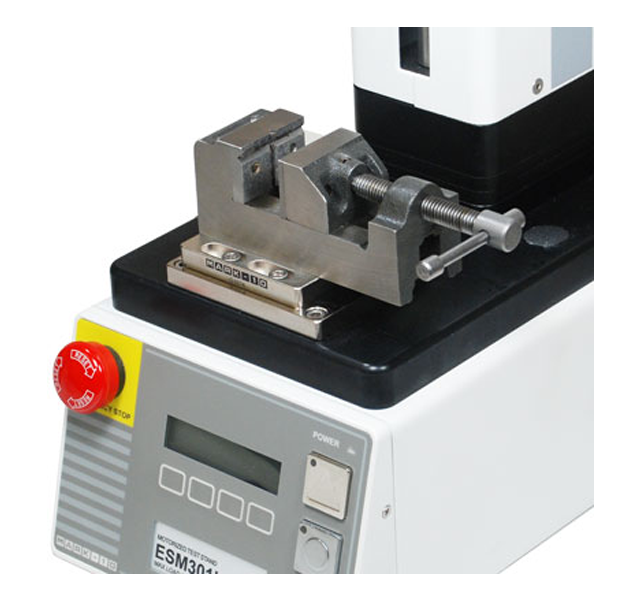

- Mounts directly to the following test frames: F105, F305, F505 , F755, and F1505 . ESM303 , ESM750 , ESM1500 , ES30 , TSC1000 , and TSF .
- Also compatible with models ES10/ES20 when ordered with optional AC1060 mounting plate. A motorized test stand is recommended.
Specifications
Maximum Tension Force:
500 lbF [2,500 N]
Weight:
2.0 lb [0.9 kg]
Dimensions
IN[MM]
| A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|
| 1.00 [25.4] | 0.50 [12.7] | 1.50 [38.1] | 2.00 [50.8] | 2.50 [63.5] | 0 – 1.50 [0 – 38.1] | 1.00 [25.4] |
