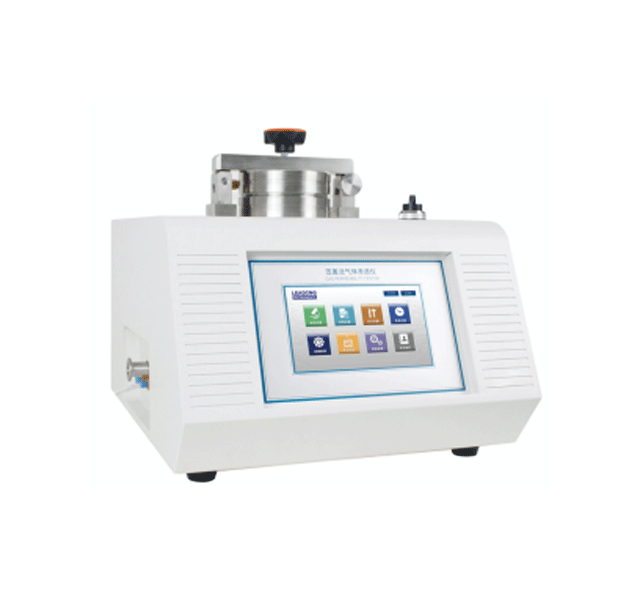

ISOBARIC-401 Oxygen Transmission Rate Tester

Packaging Testing Equipment

The ISOBARIC-401 Oxygen Transmission Rate Tester is designed and manufactured according to ASTM D3985 and other standards, and is suitable for testing the oxygen transmission rate of high and medium oxygen and air barrier materials.

Full Description

Applications

It is suitable for testing the oxygen transmission rate (OTR) of films, sheets, containers and other related materials. It is widely used in the food, pharmaceutical, medical device, daily chemical, photovoltaic, electronics and industrial product industries.

Characteristics

  • High-Precision Oxygen Sensor: Equipped with a high-precision coulometric oxygen sensor to improve testing accuracy and stability.
  • 7-Inch HD Touchscreen: Features a 7-inch HD LCD touchscreen for intuitive operation and convenient navigation.
  • Independent Single-Chamber Testing: Supports independent testing of one sample at a time.
  • Wide Testing Range and High Accuracy: Offers a wide measurement range, high accuracy and automated temperature control to accommodate various testing conditions.
  • Flexible Data Storage and Output: Supports multiple data storage and output formats, including Excel export and cloud sharing.
  • GMP Compliance: Supports multi-level user access management for improved operational control.
  • Statistical Analysis: Provides individual and group statistical analysis of test results.
  • Remote Control and Upgrades: Supports ISP online control, system upgrades and remote modification of test functions upon request.
  • Specialised Computer Software: Includes dedicated communication software for real-time test monitoring, data analysis and storage.

Testing Principle

The pre-treated test specimen is securely clamped onto the test chamber. Oxygen or air flows on one side of the specimen, while high-purity nitrogen flows on the opposite side.

Oxygen molecules permeate through the specimen into the high-purity nitrogen stream. The flowing nitrogen carries the permeated oxygen to the coulometric oxygen sensor, which measures the oxygen concentration.

Once permeation equilibrium is achieved, the instrument analyses the sensor readings and generates the oxygen transmission rate (OTR) test results.

Specifications

Measurement Range0.1–200 cc/(m²·day) (standard test area: 50 cm²)
Resolution0.1 cc/(m²·day)
Temperature Range20–50°C (optional)
Temperature Resolution0.1°C
Number of Test Chambers1
Specimen Size97 mm × 97 mm
Custom Specimen SizesAvailable on request
Specimen Thickness≤ 3 mm
Standard Test Area50 cm²
Test Gas99.5% Oxygen (user supplied)
Carrier Gas99.999% High-Purity Nitrogen
Test Pressure7.2 PSI / 50 kPa
Connection Size1/8-inch Metal Tube
Power SupplyAC 220V, 50Hz

Applicable standards

ASTM D3985, ASTM F1307, ASTM F1927, GB/T 19789, GB/T 31354, DIN 53380-3, JIS K7126-2-B, YBB 00082003-2015
