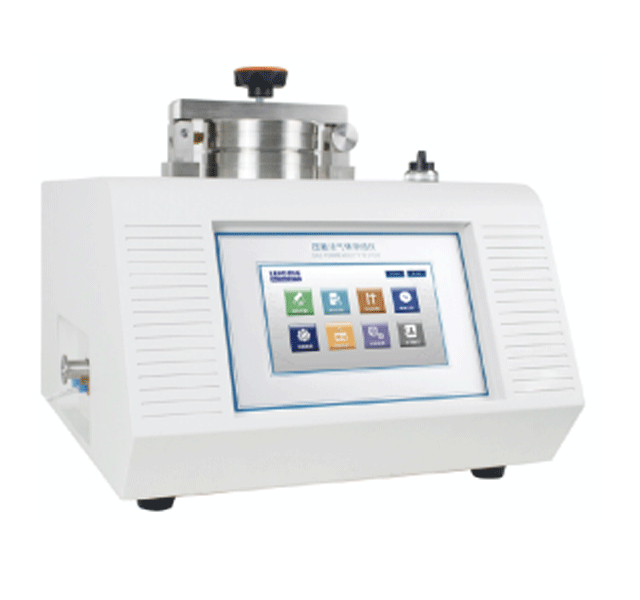

LD-GPT 01 Gas Permeability Tester
LD-GPT-01 Gas Permeability Tester is applicable in the measurement of gas permeability rate, solubility coefficient, diffusion coefficient and permeability coefficient at various temperature of plastic films, laminated films, high barrier material, sheets, foils, and etc.
Full Description
Characteristics
- Simultaneous determination of gas permeability and gas permeability o f samples
- Wide range, high precision temperature and humidity control, to meet the test under various test conditions
- Provide three test process judgment modes: proportional, fuzzy mode and time mode
- The test range can be expanded as needed to meet the requirements of high transmittance testing
- Support the test of toxic gas and flammable and explosive gas (customized)
- Pneumatic clamping sample, convenient and fast
- The system adopts electronic intelligent control, and the whole test process is completed automatically
- Provide standard film for quick calibration to ensure the accuracy and versatility of test data
- Products comply with GMP multi-level authority
- Micro-printer, a note to print test statistical results at any time
- Special computer communication software, which can perform real time display of the test, analysis and processing of data, and data storage
- Equipped with USB universal data interface, convenient for data transfer
Principle
Put the pre-conditioned specimen between the upper chamber and chamber, clamp it tightly. First vacuumize the low-pressure chamber (lower chamber), and then the whole system. When the specified degree of vacuum is achieved, shut off the lower test chamber and feed test gas to the upper test chamber (high pressure chamber) until certain pressure is reached. Ensure that a consta nt differential pressure (adjustable) is maintained across the specimen. Hence under the gradient of differential pressure the test gas permeates from the high-pressure side to the low-pressure side. By monitoring and measuring the pressure in the low-pressure side we can get various barrier parameters of the tested specimen.
Configuration
Standard configuration: host, professional software, communication cable, special sampler, vacuum
grease, fast quantitative filter paper, vacuum pump, temperature control device, micro printer
Optional parts: sampling blade, vacuum pump oil, humidity generator
Remarks: The air source inlet of the machine is Ф6mm polyurethane pipe; the air source and distilled water are provided by the user
Specifications
| Test Range | 0.1 ~ 10,000 cm³/m²•24h •0.1MPa (Routine) |
|---|---|
| Temp. Control Range: | room temperature~50ºC |
| Temp. Control Accuracy: | ±0.5ºC |
| Vacuum Resolution: | 0.05Pa |
| Vacuum Degree: | <20Pa |
| Specimen Size: | Φ95mm |
| No. of Specimens: | 1 pieces |
| Transmission Area: | 33.18cm² |
| Test Gas: | O2, N2 and CO2, etc.(Users provide gas source themselves) |
| Pressure of Gas Source | 0.4MPa~0.6MPa |
| Inlet Size: | Φ6mm polyurethane pipe |
| Dimensions: | 400mm (L)×475mm (B)×450mm (H) |
| Power: | AC 220V 50Hz |
| Net weight: | 75kg |
Applicable standards
ASTM D1434, ISO 2556, ISO 15105-1, JIS K7126-A
