Bendtsen Tester

Pulp, Paper, Cardboard & Tissue

For determining roughness and air permeability using the Bendtsen method. The Gurley porosity values are calculated from the measured values.

Request Quote Download Datasheet

Ask a question →

Full Description

Roughness and Air Permeability

Code: E.205.xxx

Device description

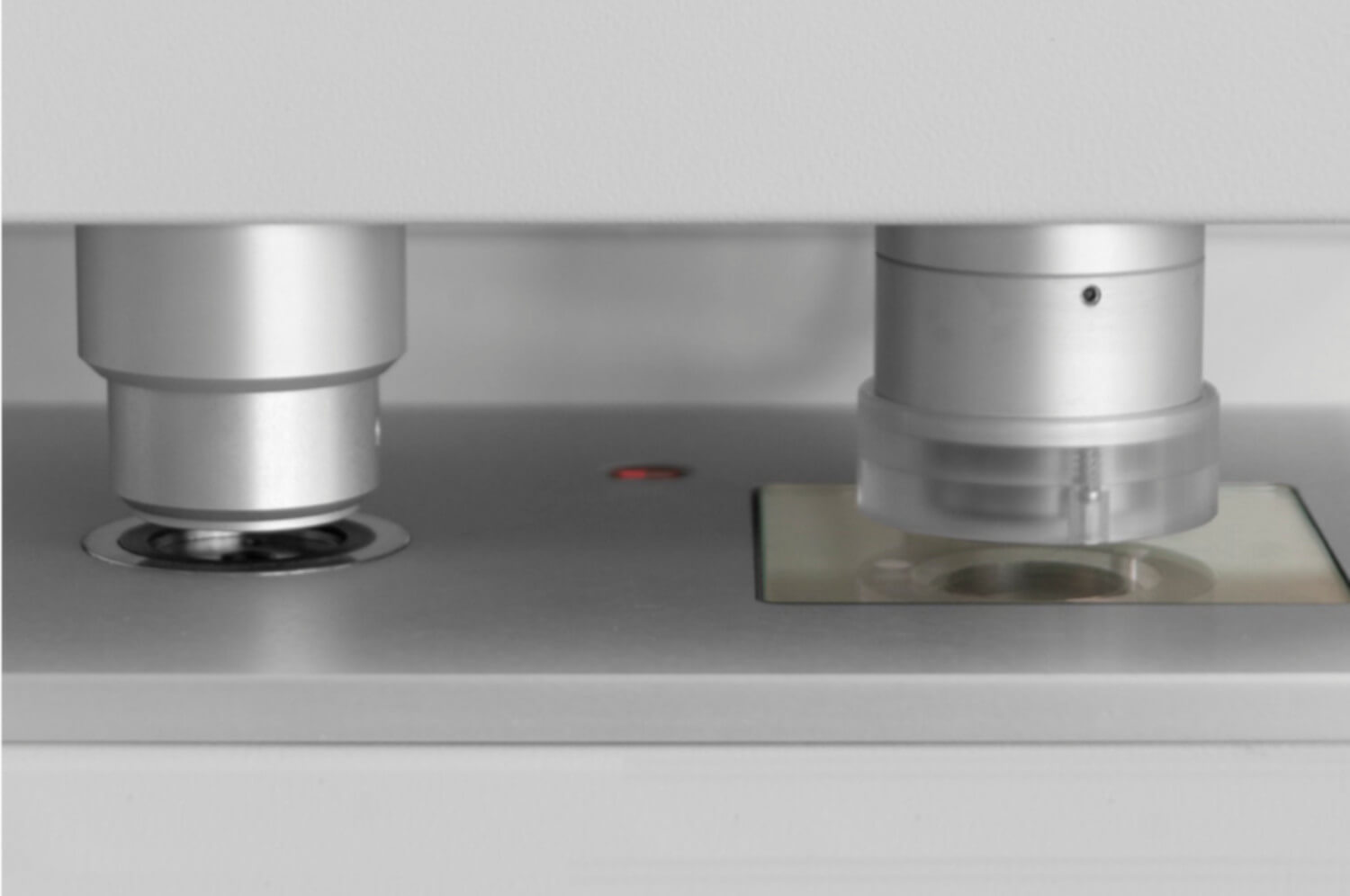

The specially developed robust aluminum housing, which is equipped with a user-friendly touchscreen, provides an excellent basis for the high-precision measuring mechanism of the Bendtsen. This consists of up to two pneumatic measuring cylinders with corresponding measuring heads for measuring surface roughness and/or porosity, the control circuits and precise measuring sensors. To protect the touchscreen, the start button attached separately to the device can be used instead of the start button. The flow rate is 25-5000 ml/min. Other flow ranges are available on request.

Features

Simple & user-friendly operation via touch display
Fully automatic measuring process
up to two measuring heads: roughness and air permeability
Statistics with diagrams, maximum, minimum, mean value, standard deviation
Sample detection by photocell, automatic measurement start
Automatic equalization of atmospheric pressure
High-quality acrylic sample alignment holder
Calculation of Gurley values in seconds (only for porosity measuring devices)
Windows-based software
RS232 and USB interface
CE certified

Specifications

Measurement	Roughness and air permeability
Measuring pressure selectable according to standard	0.74 kPa; 1.47 kPa; 2.20 kPa
Stabilization time selectable	1 – 40 sec.

Models

code	Description
E.205.100	1 Measuring head – Bendtsen tester for roughness measurements
E.205.200	1 measuring head – Bendtsen tester for air permeability measurements (with Gurley value calculation)
E.205.300	2 measuring heads – Bendtsen tester for roughness and air permeability measurements (with Gurley value calculation)
