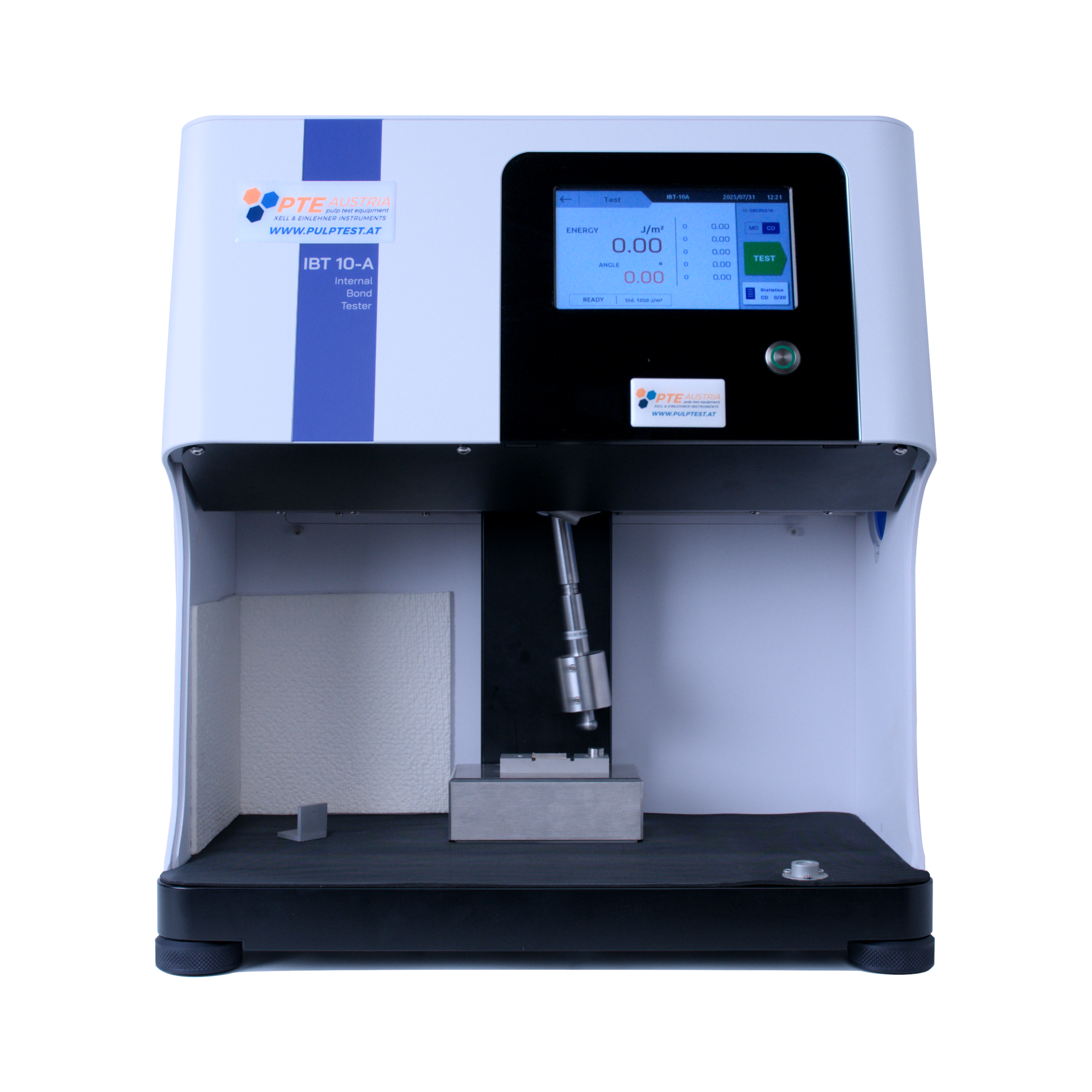

Internal Bond Structural Strength Tester
For determining the internal adhesive force of paper.
Full Description
CODE: E.201.X
Device description

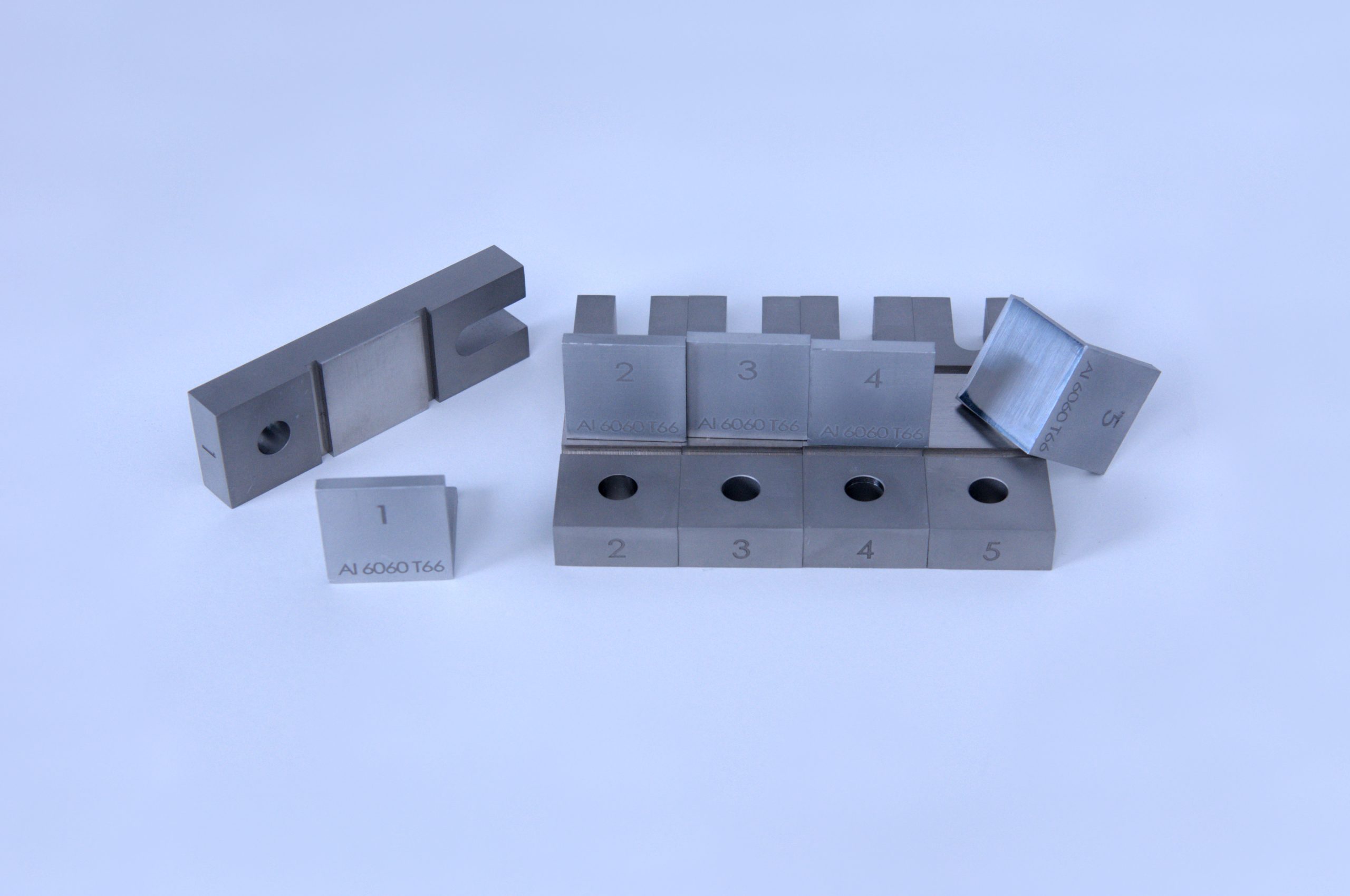

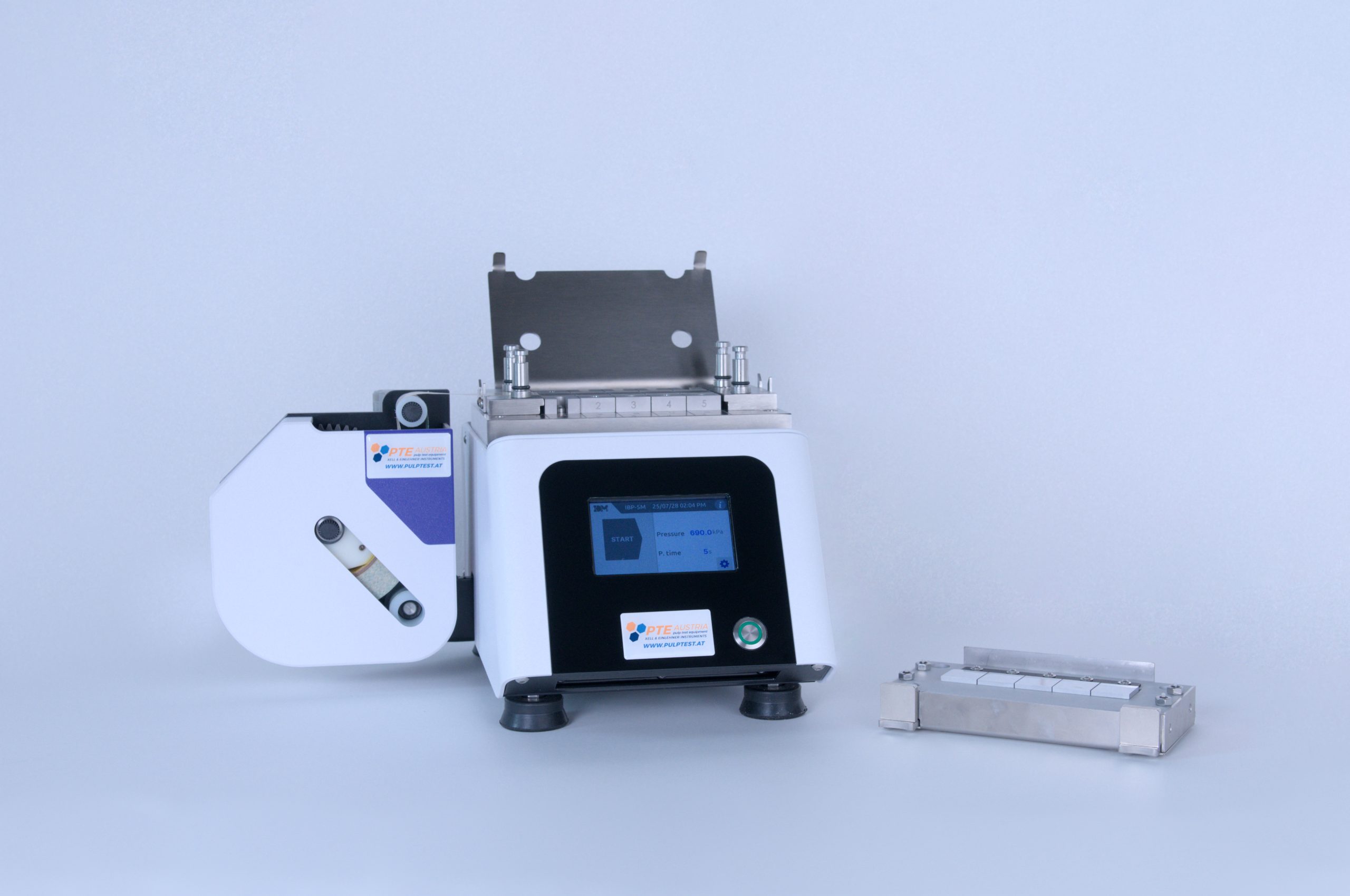

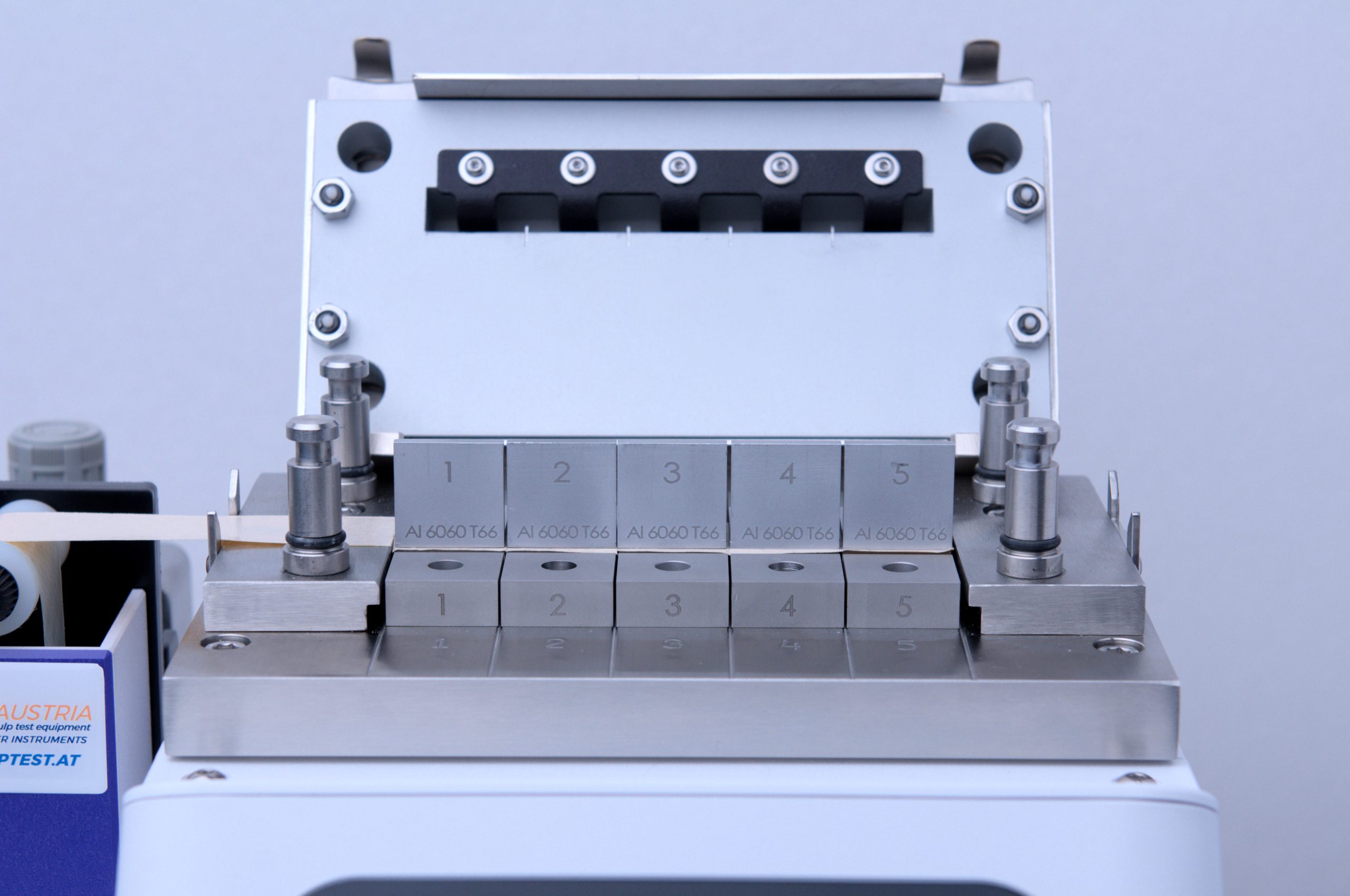

The internal bond tester has a built-in digital display and is microprocessor-controlled. All components are built into a sturdy steel frame. A pendulum mechanism pulls the pendulum back to the starting position after the test and a special specimen holder allows the base plate with the specimen and the aluminum angle to be changed quickly and easily.
Features
- Digital display, integrated microprocessor
- Automatic pendulum return
- Easy insertion of the sample plate thanks to a quick-change system
Connections
| Voltage | 110 – 230 V, 50/60 Hz AC |
|---|---|
| Compressed air | 600 kPa |
Specifications
| Delamination angle of the pendulum to the sample surface | 90° |
|---|---|
| Sample area | 25.6 x 25.6 mm |
| Selectable display of measured values | J/m², kg/cm, ft. Ib/in² |
Models
| code | Article |
|---|---|
| E.201.L.MAN | Internal Bond Tester incl. pendulum with low weight (525 J/m²) and manual sample station |
| E.201.M.MAN | Internal Bond Tester incl. pendulum with medium weight (1 050 J/m²) and manual sample station |
| E.201.H.MAN | Internal Bond Tester incl. pendulum with high weight (2 100 J/m²) and manual sample station |
| E.201.L.AUT | Internal bond tester incl. pendulum with low weight (525 J/m²) and automatic sample station |
| E.201.M.AUT | Internal Bond Tester incl. pendulum with medium weight (1 050 J/m²) and automatic sample station |
| E.201.H.AUT | Internal Bond Tester incl. pendulum with high weight (2 100 J/m²) and automatic sample station |
Applicable standards
TAPPI T569 om-09; TAPPI T833
More from PTE Pulp Test Equipment GmbH
View all PTE Pulp Test Equipment GmbH products →
Abrasion Tester AT 1000 TS (Einlehner)
Einlehner abrasion tester for determining the abrasiveness of pulp and stock suspensions.
Universal Thickness Gauge
For determining the thickness of paper, tissue, cardboard, leather and other materials.
BENDING STIFFNESS TESTER
To determine the bending resistance and stiffness of paper and paperboard.
Bendtsen Tester
For determining roughness and air permeability using the Bendtsen method.
Burst Pressure Tester
For determining the bursting strength and bursting energy absorption (BEA) of paper and cardboard.
STATIC FRICTION TESTER
For fast and reproducible sorting and classification of wood chips.
Tensile tester – Horizontal
For determining the tensile strength in dry or wet condition, the elongation and the tensile force absorption (TEA) of…
AT 1000 wear parts set
for (original Einlehner) abrasion tester
Tensile Tester – Vertical
For determining the force, tensile resistance, elongation and tensile force absorption (TEA) in paper, cardboard…
Double / Twin Folding Endurance Tester
Determines the folding resistance of paper according to the Louis Schopper method.
Elmendorf Tear Tester
For determining the tensile strength of paper and similar materials.

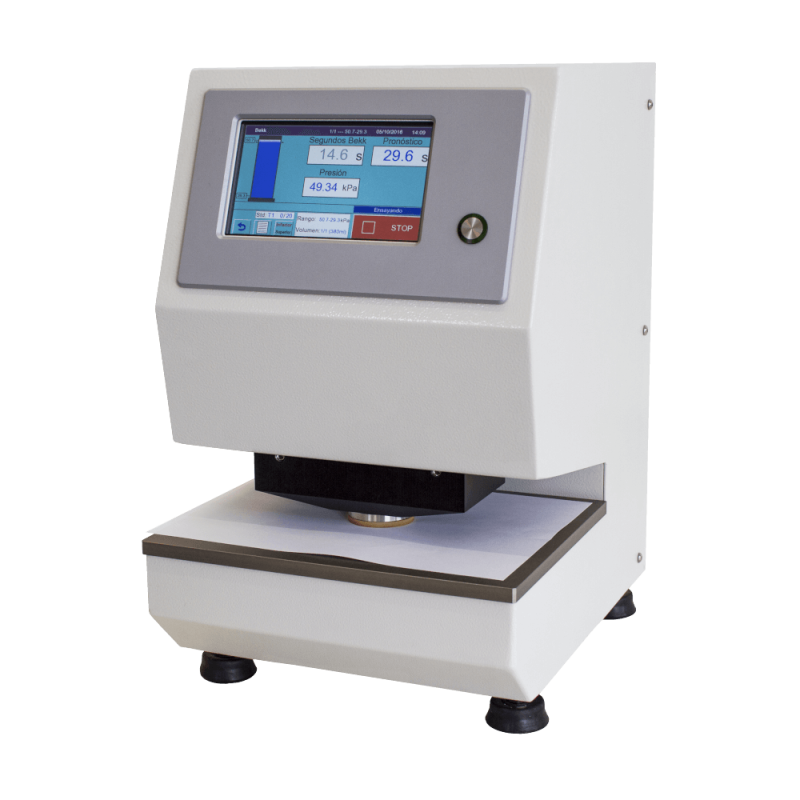

BEKK Smoothness Tester
