Elmendorf Tear Tester
For determining the tensile strength of paper and similar materials.
Also searched as: Elmendorf, tear tester, tear strength, tear resistance, upsetting press, crush tester, ECT, RCT, 1974, 53128, 21974, P11
Full Description
CODE: E.208.XXX
Device description

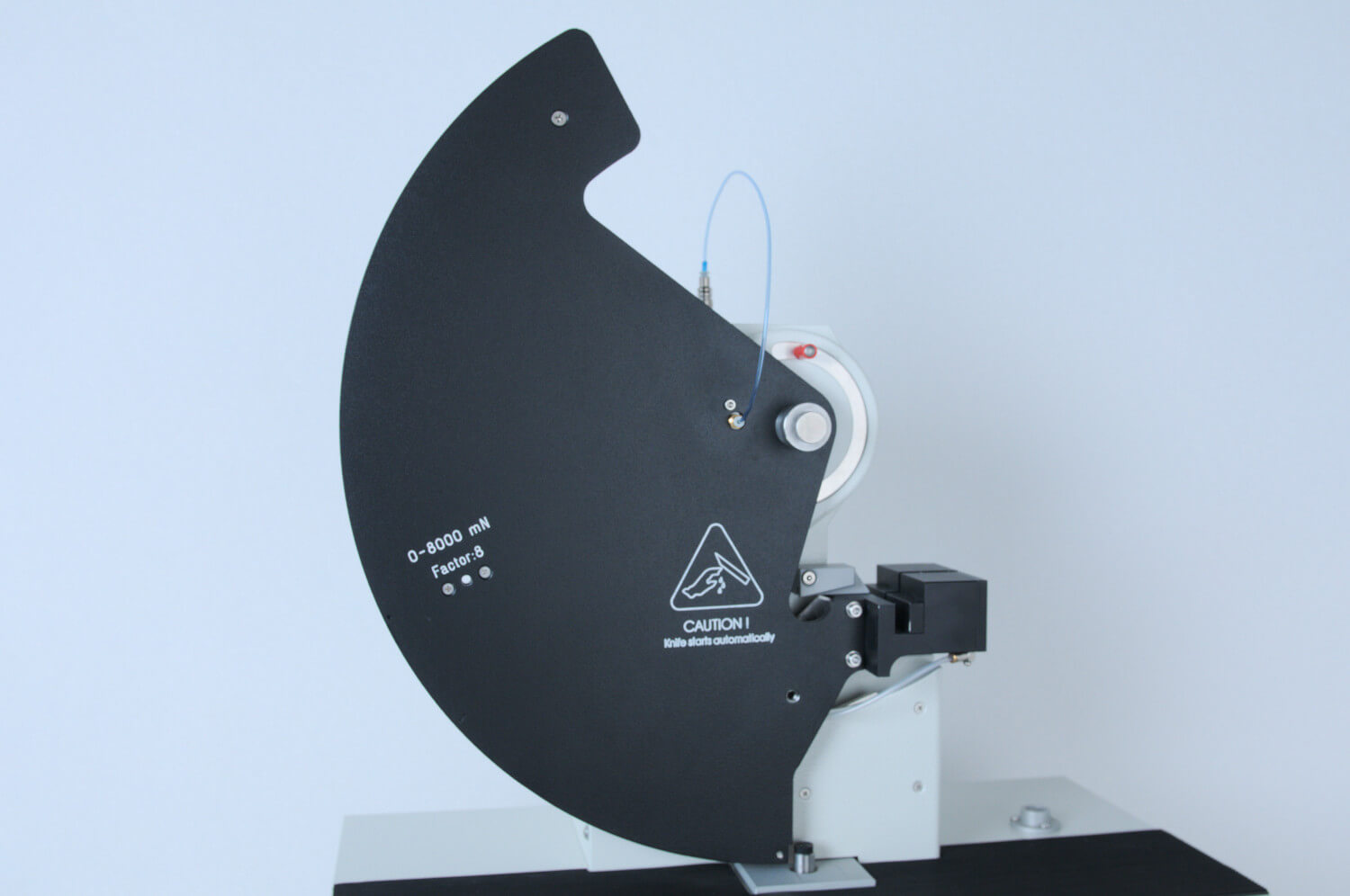

The Elmendorf tear tester has been specially developed for the paper industry. A pendulum is included in the standard delivery. Recognition of the pendulum and the test cycle is fully automatic and the integrated touchscreen makes operation intuitive and simple. After the measuring process, the pendulum automatically returns to its starting position and opens the clamps to change the samples.
Features
- Pendulum easily replaceable

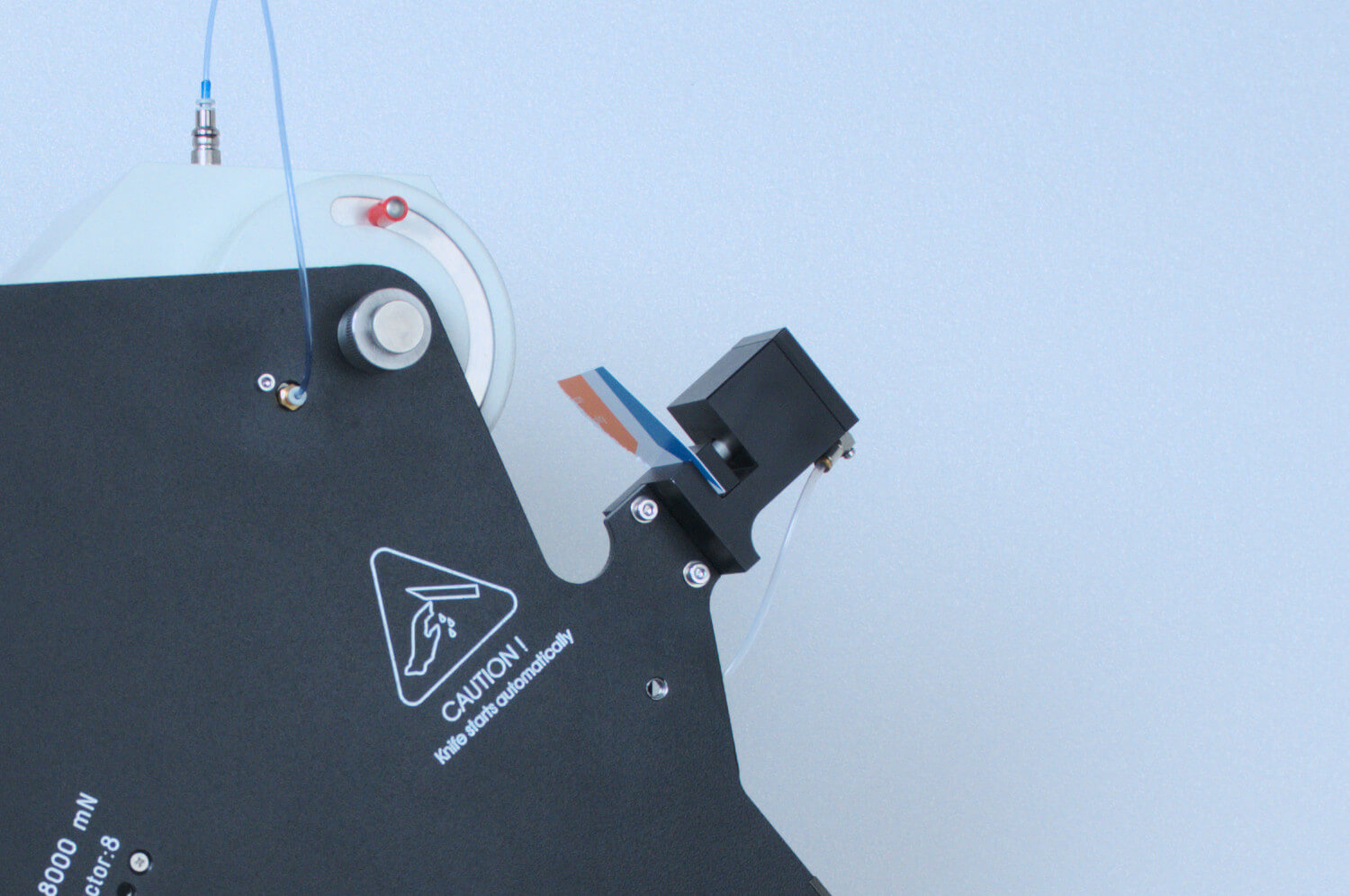

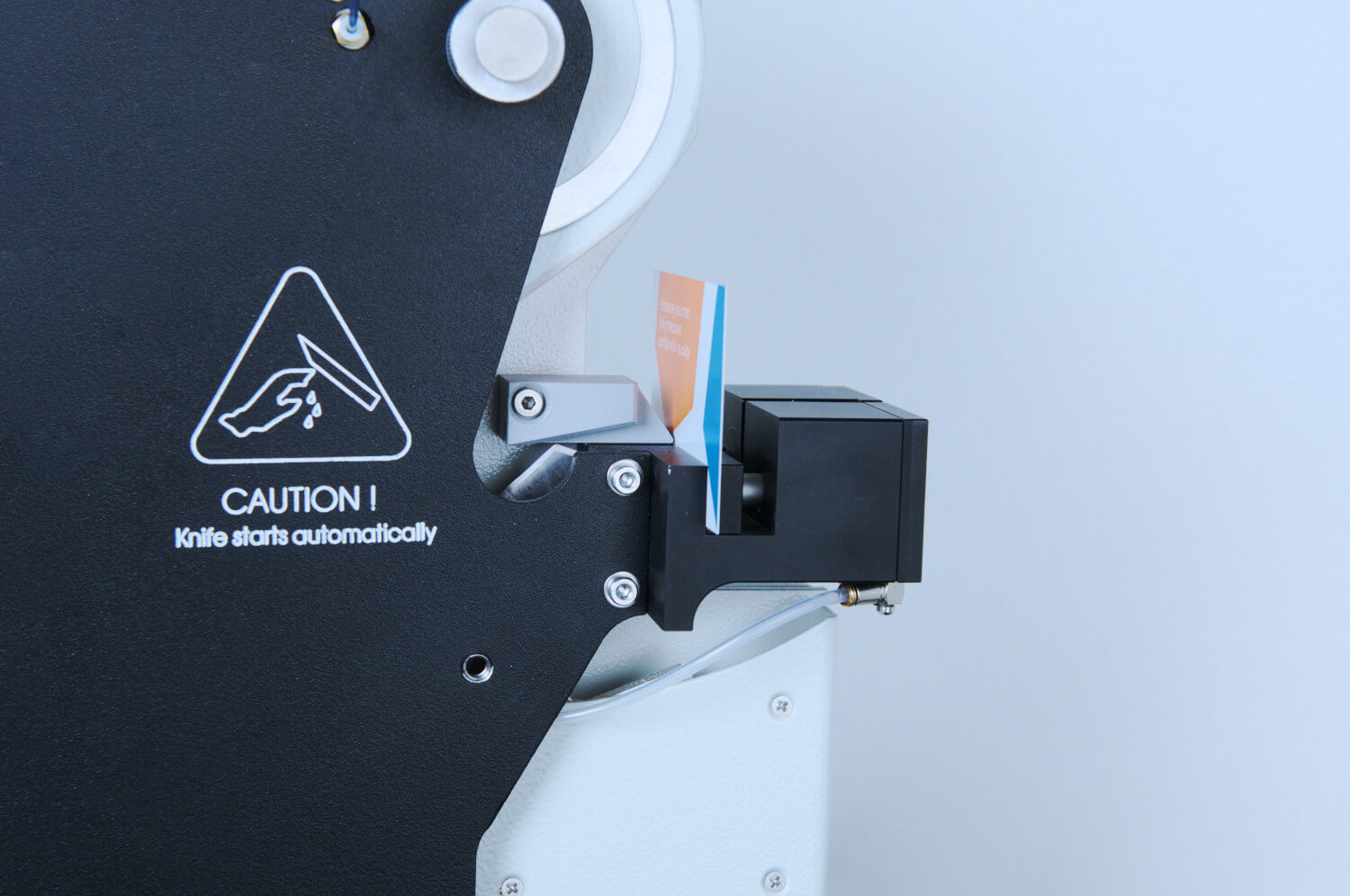

- Pneumatic sample clamping

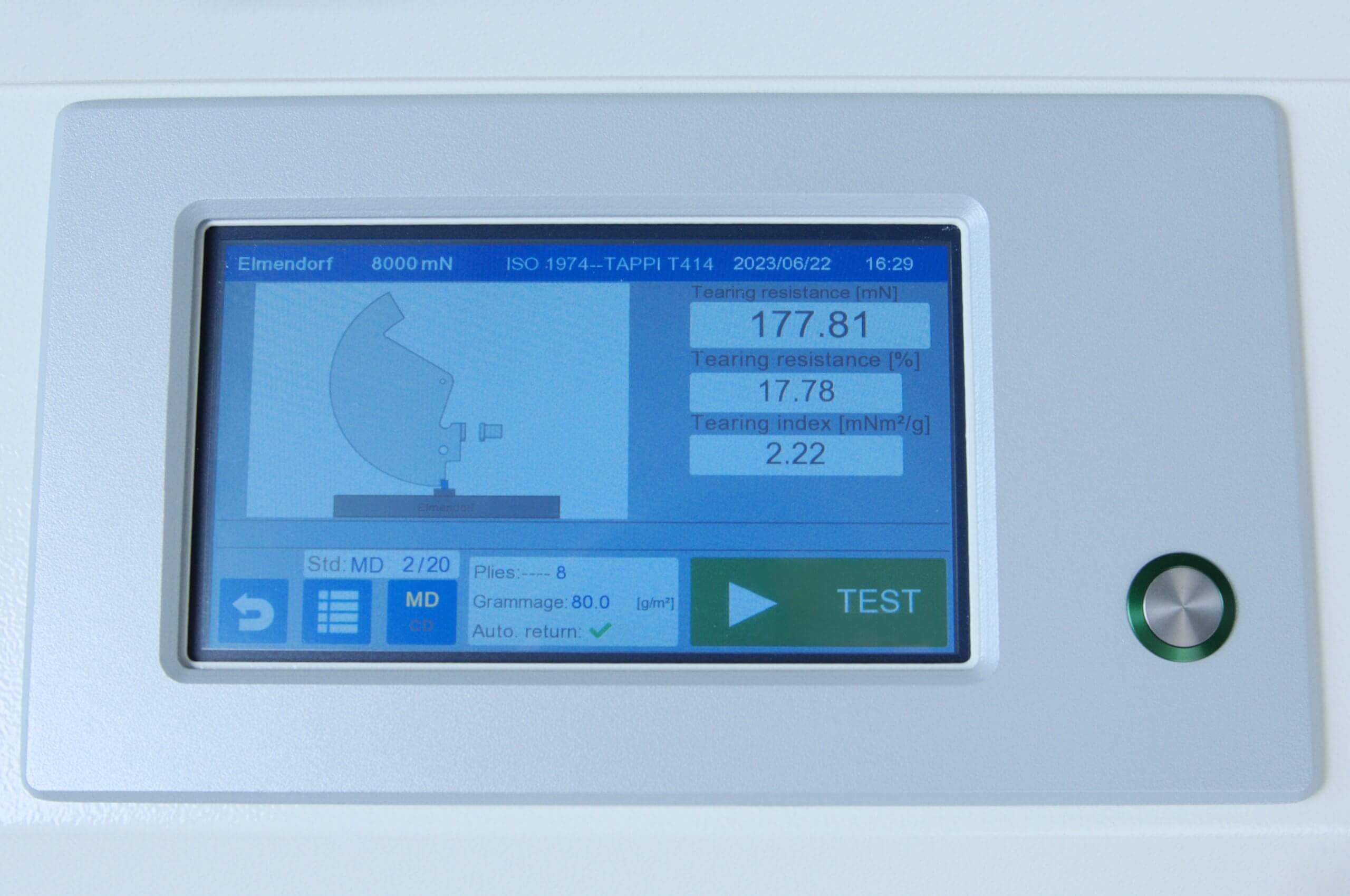

- Intuitive and user-friendly operation via touch display
- Fully automatic measuring process and pendulum return

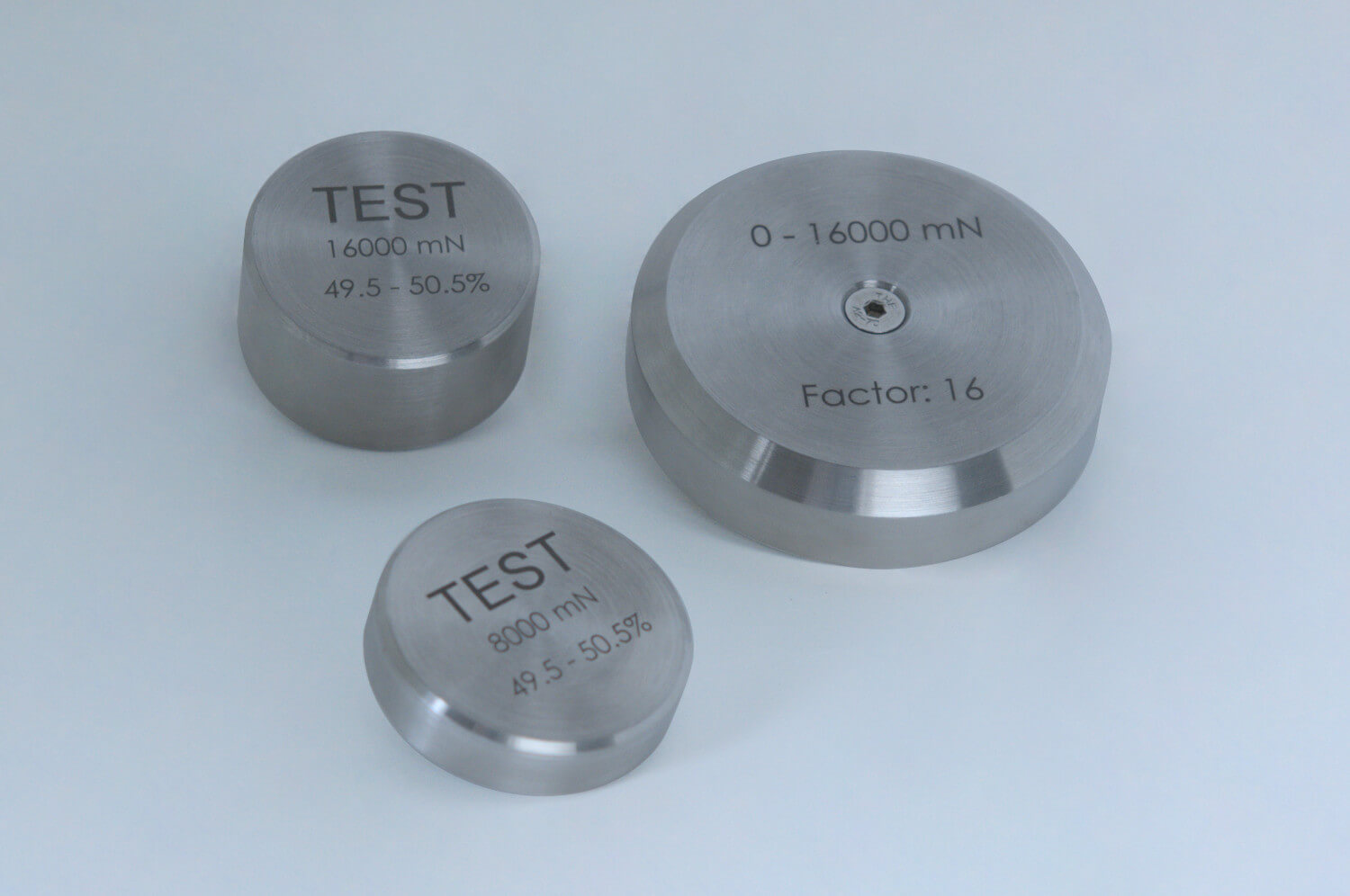

- Control weight for checking the pendulum
- Complete statistics functions
- RS-232 and USB interface and Ethernet output
- multiple language selection
- CE certified
Connections
| Voltage | 110 – 230 V, 50/60 Hz AC |
|---|---|

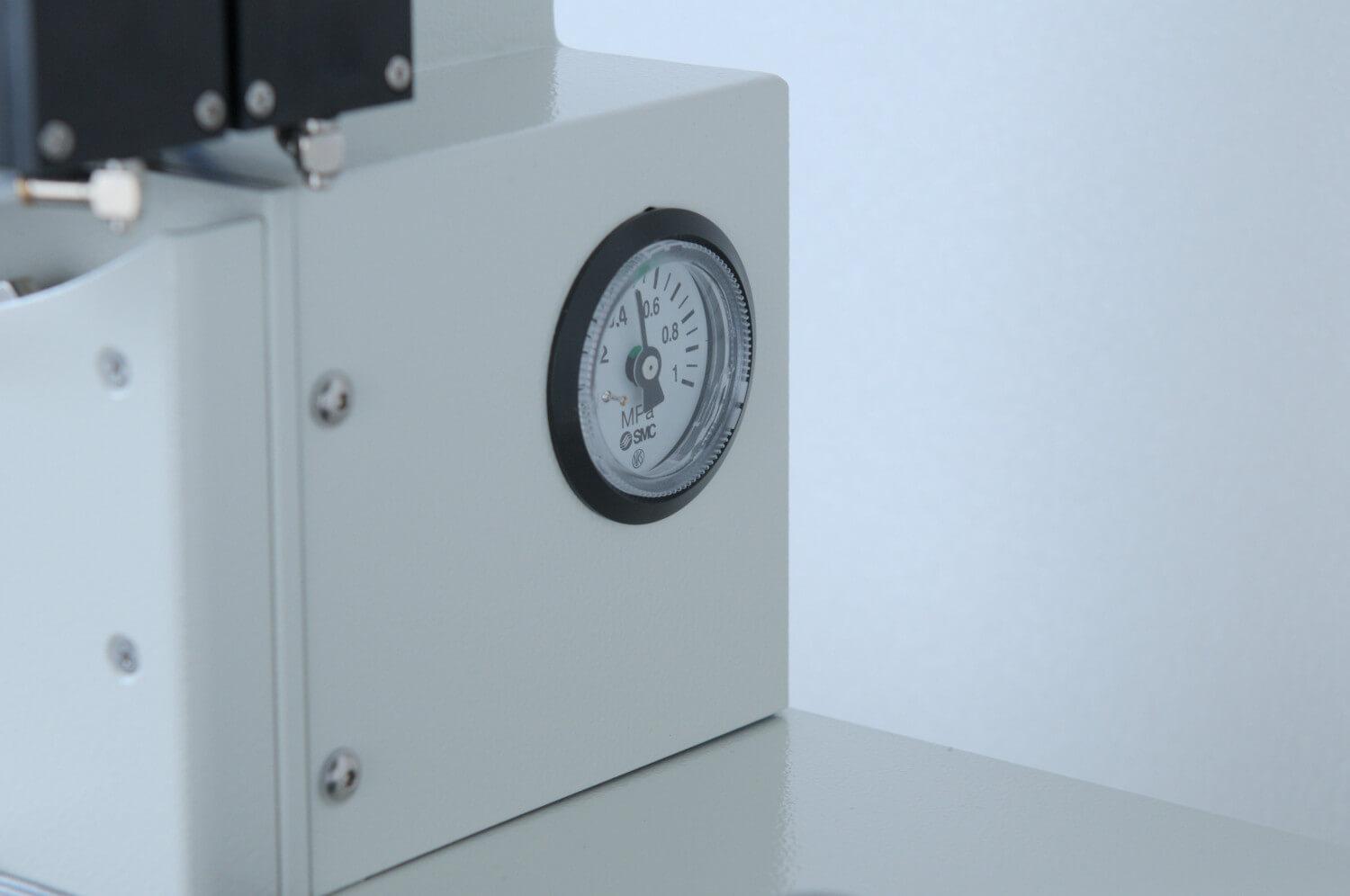

| Compressed air | 600 kPa |
Additional pendulum
| code | Description |
|---|---|
| E.208.Z008 | 8 000 mN Pendulum |
| E.208.Z016 | Balance weight & verification weight 16 000 mN |
Specifications
| Method | Elmendorf pendulum |
|---|
Models
| code | Description |
|---|---|
| E.208.008 | Device with 8 000 mN pendulum |
| E.208.016 | Device with standard pendulum 8 000 mN & counterweight 16 000 mN |
Applicable standards
ISO 1974; DIN 53128; EN 21974; SCAN P11; TAPPI T414; BS 4468
