Universal Thickness Gauge
For determining the thickness of paper, tissue, cardboard, leather and other materials.
Full Description
For paper, tissue, cardboard, leather and other materials.
Code: E.203.xxx
Device description

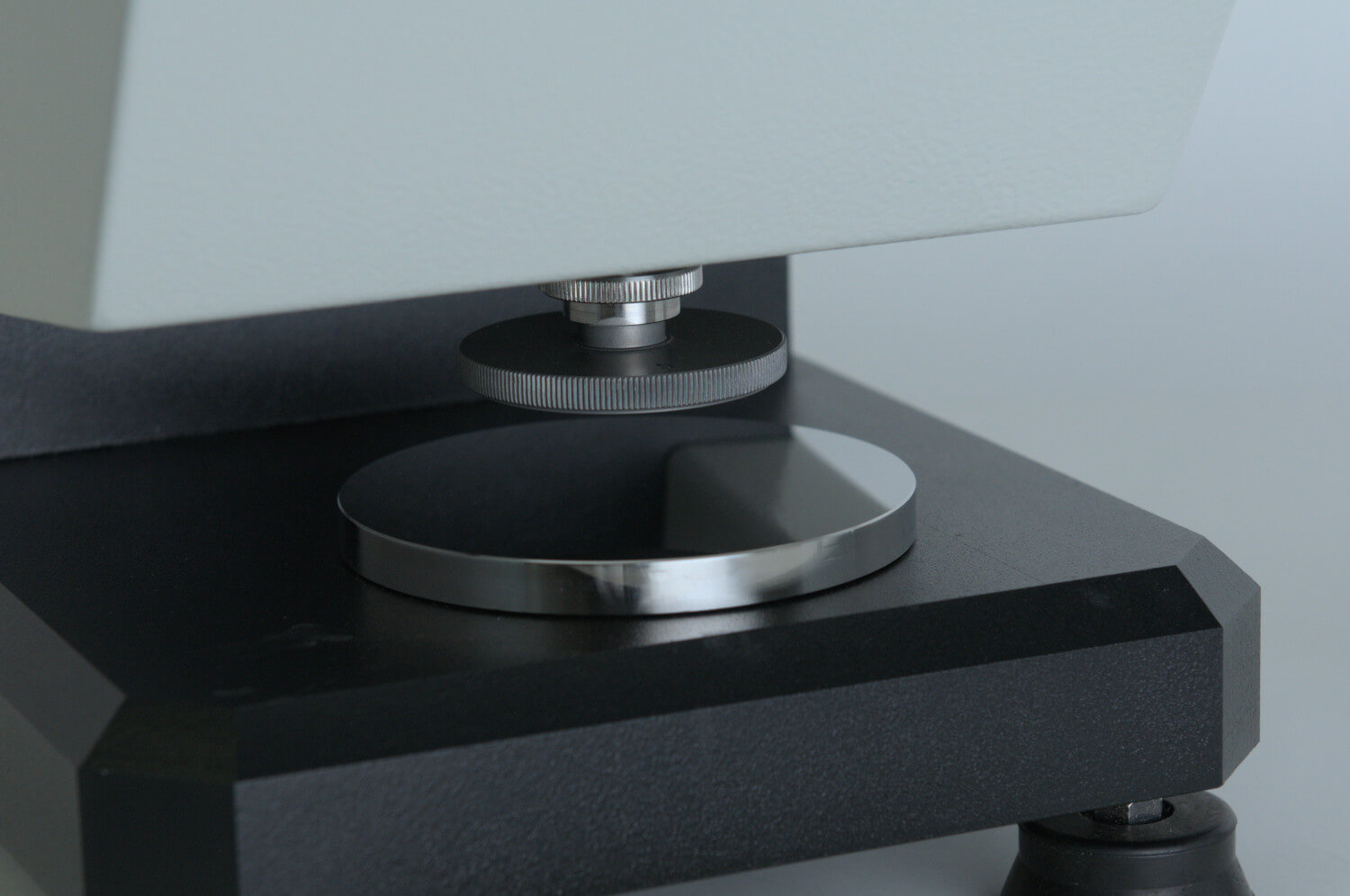

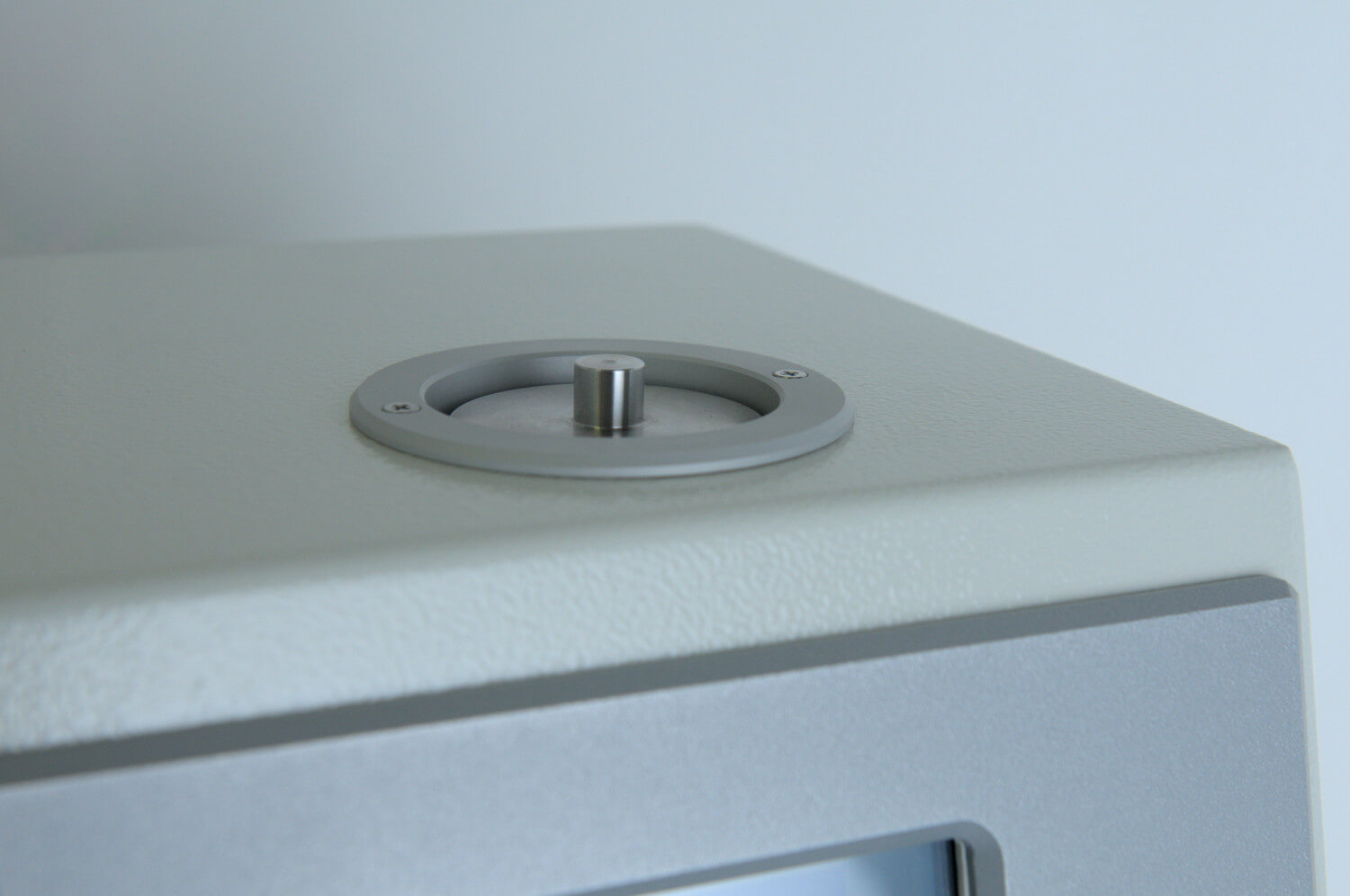

The universal thickness gauge consists of a sturdy frame that ensures exact positioning of the measuring pin on the sample. It can be operated easily and intuitively via the integrated touchscreen. The lifting and lowering of the measuring pin is motorized. Several measuring pins and weights are available according to the different standards for testing paper, cardboard, tissue, leather, etc.
Features
- High-quality materials and workmanship

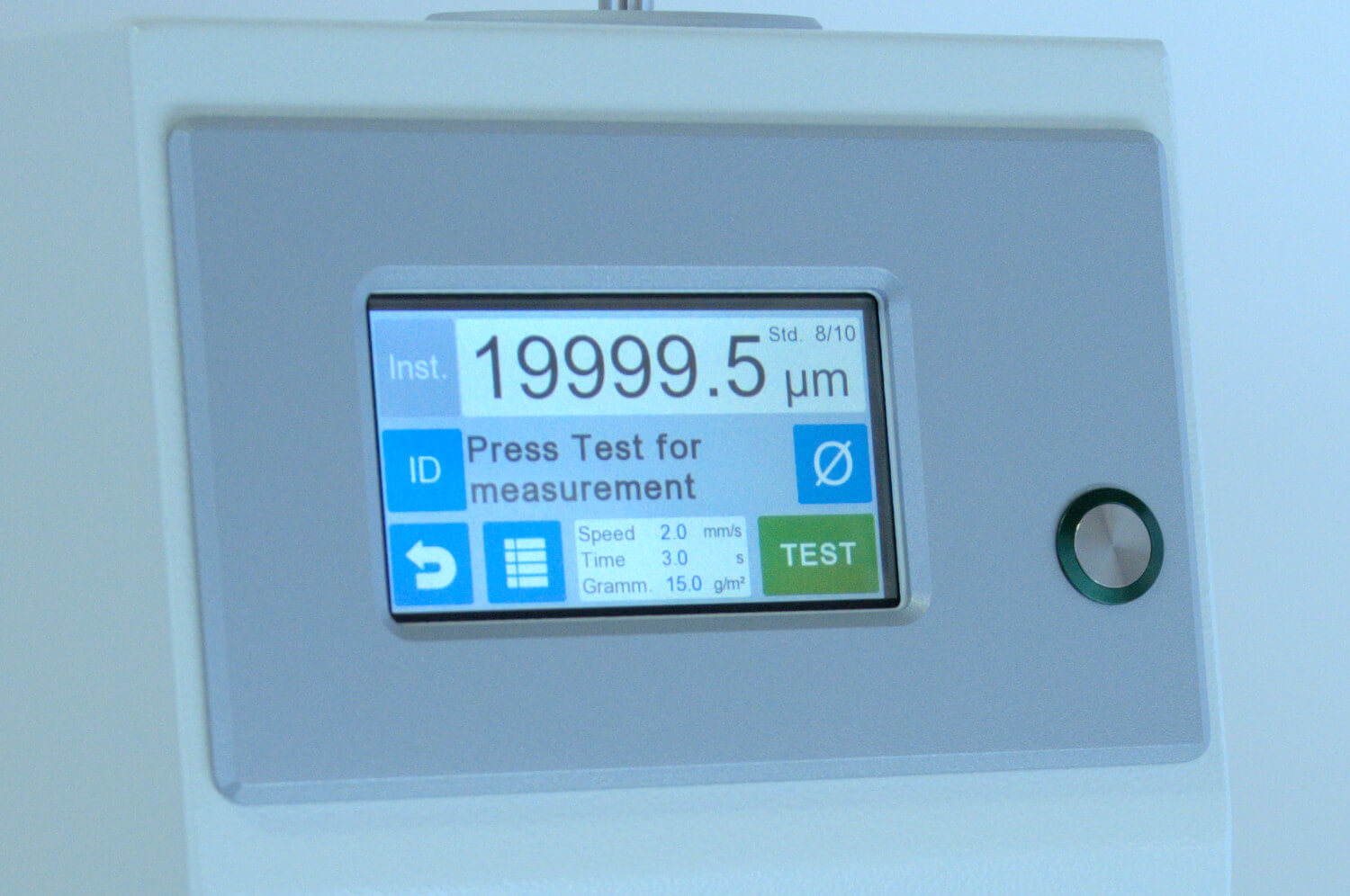

- Intuitive and user-friendly operation via touch display
- Motorized measuring pen

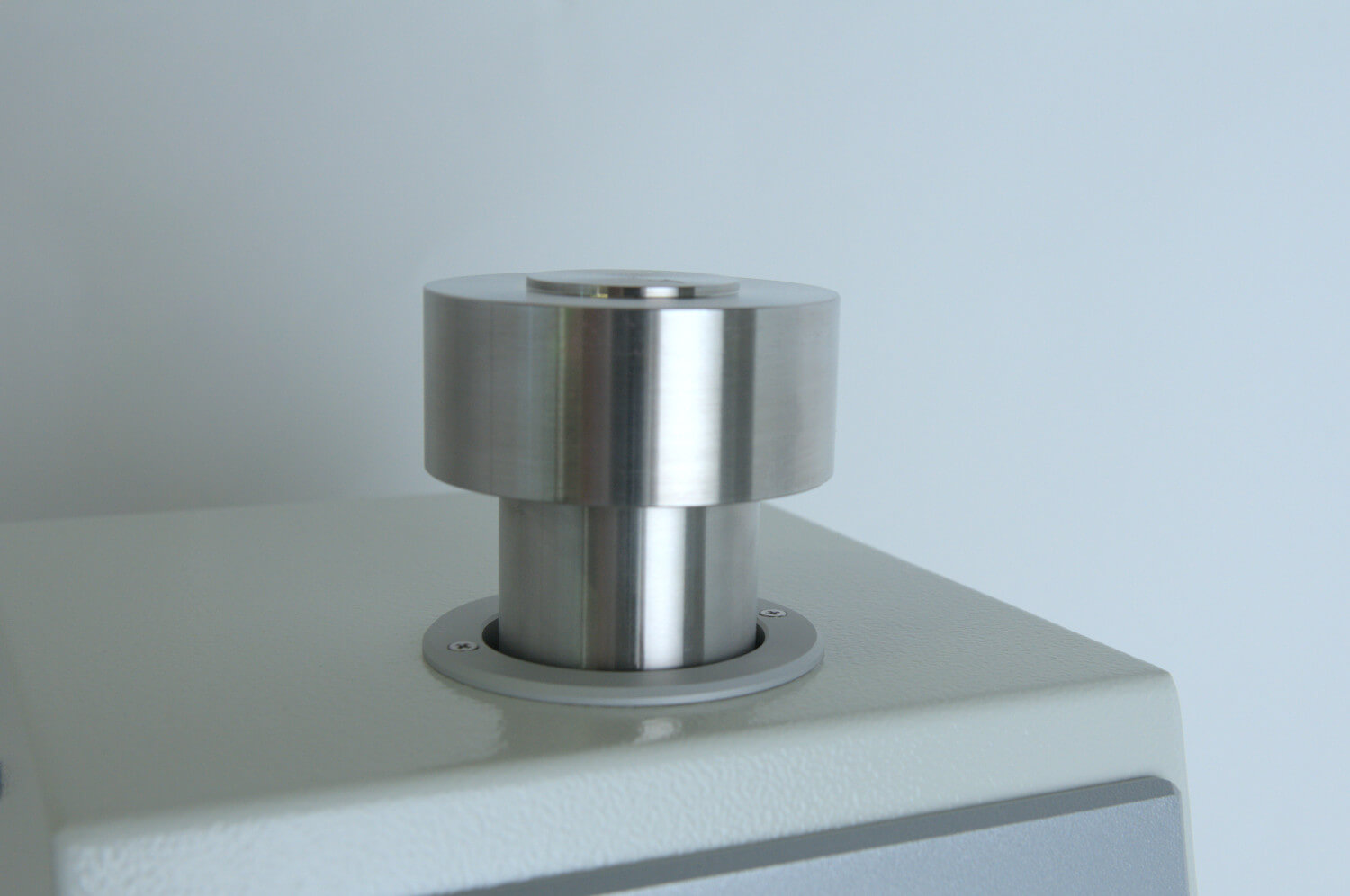

- Various measuring pins and weights for tissue, cardboard, paper, leather, etc.
- Adjustable test speed
- Statistics for multiple measurements
- Two operating modes
- Manual operation for single measurement or automatic operation for test cycles
Specifications
| Adjustable lowering speed | 1 – 11 min/sec |
|---|---|
| Resolution | 1 µm |
| Adjustable dwell time | 0 – 999.9 sec |
| Measuring range | 0 – 25 mm |
Models
| Models | |
| code | Test material |
| E.203.25P | Paper |
| E.203.25PT | Paper according to TAPPI T411 |
| E.203.25C | Cardboard box |
| E.203.25T | Tissue |
| E.203.20NV | Non-woven fabric |
| E.203.10PFL | Plastic film flat |
| E.203.10PFR | Rounded plastic film |
| Additional sets | |
| code | Set for |
| E.203.P.KIT | Paper |
| E.203.PT.KIT | Paper according to TAPPI T411 |
| E.203.C.KIT | Cardboard box |
| E.203.T.KIT | Tissue |
| E.203.NV.KIT | Non-woven fabric |
| E.203.PFL.KIT | Plastic film flat |
| E.203.PFR.KIT | Plastic film – radius |
Applicable standards
ISO 534; ISO 12625-3; TAPPI T411; SCAN P7; EN 20534; DIN 53105
