Burst Pressure Tester
For determining the bursting strength and bursting energy absorption (BEA) of paper and cardboard.
Full Description
For Paper and Cardboard
CODE: E.204.XXX
Device description

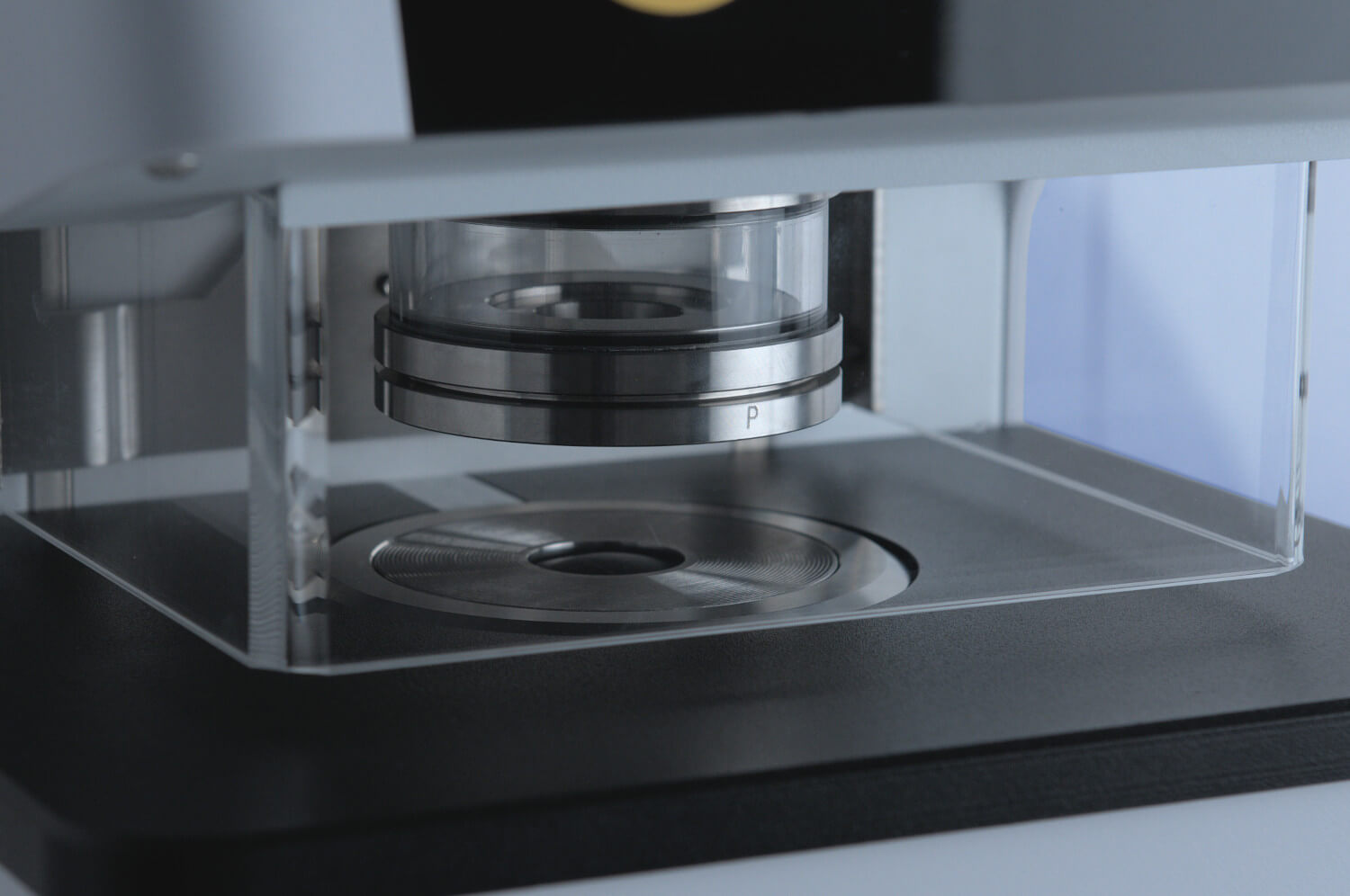

The specially developed housing, which is equipped with a user-friendly touch panel as standard, provides an excellent basis for the high-precision measuring mechanism of the burst pressure tester. This essentially consists of a clamping bell and the diaphragm, as well as high-precision pressure and force sensors. To protect the touchscreen, the start button attached separately to the device can also be used instead of the start button.
Features
- High-quality materials and workmanship
- Motorized hydraulics (glycerine)
- Safety cover lowers in front of the clamping bell
- Simple and intuitive operation via touch display
- Display of breaking force, values in diagrams, statistical values and BEA
- Upper and lower values can be saved separately and the duration can be calculated
- compatible with the NOVILOG software
- RS232 and USB interface
Connections
| Voltage | 110 – 230 V, 50/60 Hz AC |
|---|---|
| Compressed air | 600 kPa |
Specifications
| Measurement | Bursting strength |
|---|---|
| Measuring range | for paper: 50 – 5 000 kPafor cardboard: 50 – 8 000 kPa |
| Configurable flow rate | 96 ± 6 ml/min for paper170 ± 5 ml/min for cardboard |
| Pneumatic sample clamping force adjustable | up to 7 000 N |
Models
| Code | Device |
|---|---|
| E.204.PAP | Burst Tester for paper |
| E.204.BOARD | Burst Tester for cardboard |
Applicable standards
For paper: ISO 2758; TAPPI T403, T807; PAPTAC D19P; SCAN P24; etc. For cardboard: ISO 2759; TAPPI T810, T807; PAPTAC D29P; SCAN P25; FEFCO No. 4; etc.
