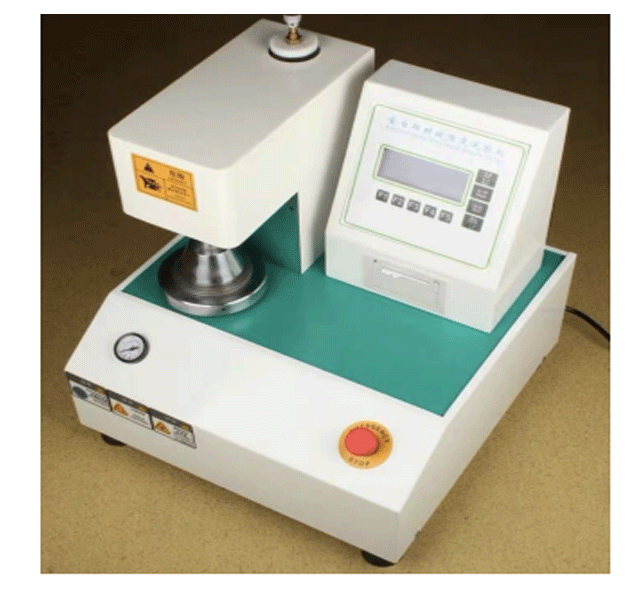

BST-01 Burst Strength Tester

Packaging Testing Equipment

BST-01 Burst Strength Tester is the basic instrument used to test the strength performance of paper and paperboard. It is a kind of international universal Mullens instrument.

Full Description

This instrument is easy to operate, has reliable performance, and advanced technology. It is an ideal testing equipment for scientific research units, paper mills, packaging industry, quality inspection department.

PRODUCT FEATURES

  • Computer control system, open architecture, highly automatic program.

  • High accuracy and convenience to operate.

  • Automatic measurement, intelligent calculating functions.

  • Equipped with micro-printer, convenient to get the test result.

  • Mechatronics modern design concept, hydraulic system, compact structure, nice appearance, easy maintenance.

  • Self-developed software, having automatic measure, statistics, print test results, data save function.

Specifications

Measuring Range:10–6000 kPa
Pressure Between Plates:≥690 kPa
Transmit Hydraulic Volume170 ± 15 ml/min
Diaphragm Resistance:Protruding 10 mm, 170–220 kPa
.Protruding 18 mm, 250–350 kPa
Accuracy:1 grade (Resolution: 0.1 kPa)
Value Accuracy±0.5% FS
Hydraulic System Leak:In the measurement of upper limit value, 1 min pressure drop ≤10% Pmax
Sample Clip Ring Size:Upper and lower clamp ring aperture Ø31.5 ± 0.05 mm
Motor Power90 W
Power:220V ±10%, 50Hz
Dimension:530 mm × 360 mm × 550 mm
Weight75 kg

Applicable standards

ISO2759, ASTM D774
