Leading Instruments Co Ltd

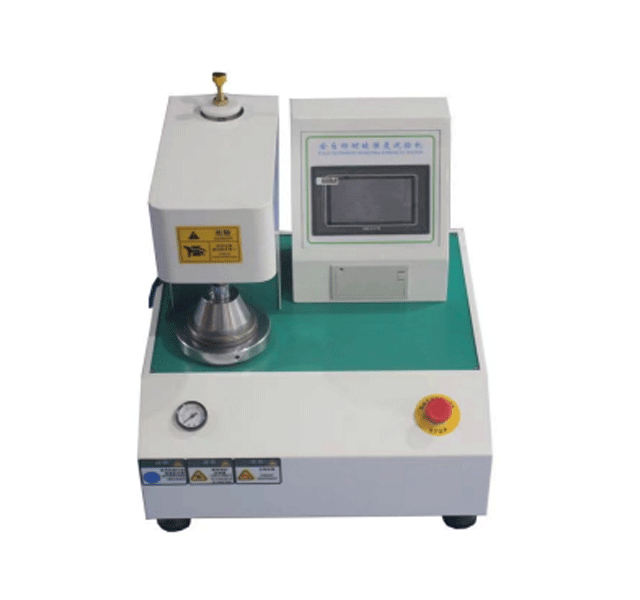

BST-02 Auto Burst Strength Tester

Packaging Testing Equipment

BST-02 Auto Burst Strength Tester is designed for testing the burst strength of packaging materials such as ordinary paper, corrugated paper, toilet paper, wrapping paper, etc. It can test the leather, cloth, packaging film, and effectively inspect the quality of products.

Full Description

CHARACTERISTICS

  • Micro-computer control, LCD display;
  • Computer control systerm, open architecture, highly automatic program, to ensure the high accuracy, and convenience to operate.
  • Automatic measurement, Intelligent calculating functions.
  • Equipped with micro-printer, convenient to get the test result.
  • Mechatronics modern design concept, hydraulic system, compact structure, nice appearance, easy maintenance.
  • Self-developed software, having automatical measure, statistics, print test results, data save function.
  • Mini-printer;
  • RS232 port;

Specifications

Capacity High Pressure:0–100 kg/cm² (0.1 kg/cm²)
Units:kPa, psi, kg/cm²
Material of the Ring:Stainless Steel SUS304
Accuracy:±0.5%
Pressure Range:250–5600 kPa
Specimen Clamping Force≥690 kPa
Oil:85% Glycerin, 15% Distilled Water
Outside Dimension (L × W × H)445 × 425 × 525 mm
Weight:Approx. 70 kg
Power:AC220V ±10%, 50 Hz
Sensing Method:Pressure Converter
Motor:Anti-vibration Motor 1/8 HP
Opening in Upper Clamp:31.5 ± 0.05 mm Diameter
Opening in Lower Clamp:31.5 ± 0.05 mm Diameter

Applicable standards

ISO 2759
