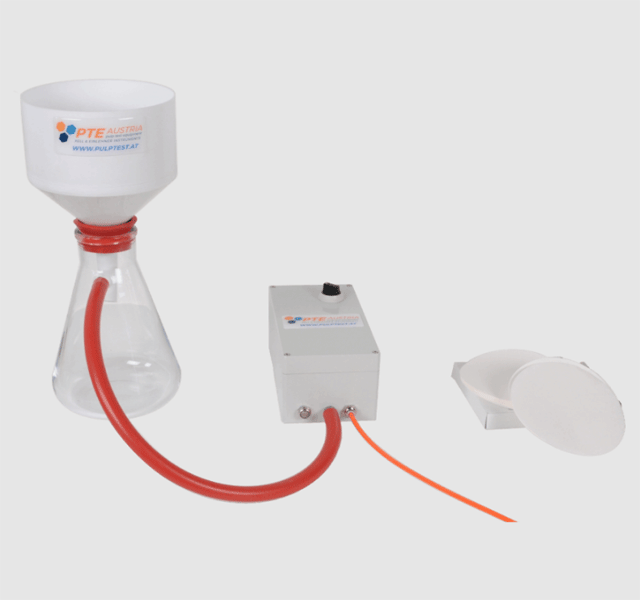

Buchner Funnel Set
For determining the consistency of pulp according to ISO 4119.
Full Description
Code: P.935.xxx-xxx
Device description
The Büchner funnel set is ideal for vacuum filtration in the laboratory, e.g. after the classification process with the Somerville device. It is available with a water jet pump or Venturi control. The Büchner funnel is made of high-quality, heat-resistant plastic and the upper and lower parts can be separated for cleaning. The suction flask is made of borosilicate glass 3.3 and is autoclavable.
Applicable standards
ISO 4119
Connections
| Water connection required for water jet pump |
|---|
| Air connection required for Venturi control |
Features
| Funnel made of high-quality PP (polypropylene) |
|---|
| Suction flask made of borosilicate glass 3.3 |
| Autoclavable suction flask |
| incl. filter starter set |
Specifications
| Application | Pulp filtration |
|---|
Models
| code | Bottle size | Funnel size | Filter diameter | System |
|---|---|---|---|---|
| P.935.SET-05 | 0.5 l | 390 ml | Ø 90 mm | Water jet pump |
| P.935.SET-10 | 1.0 l | 810 ml | Ø 110 mm | Water jet pump |
| P.935.SET-20 | 2.0 l | 2,100 ml | Ø 150 mm | Water jet pump |
| P.935.SET-V05 | 0.5 l | 390 ml | Ø 90 mm | Venturi control box |
| P.935.SET-V10 | 1.0 l | 810 ml | Ø 110 mm | Venturi control box |
| P.935.SET-V20 | 2.0 l | 2,100 ml | Ø 150 mm | Venturi control box |
Applicable standards
ISO 4119
