CANADIAN STANDARD - DIGITAL
For determining the degree of refining and the drainage rate of pulp suspensions in accordance with Canadian standards.
Full Description
FREENESS TESTER
CODE: P.404.D
USAGE
To measure the freeness and dewatering rate of suspensions according to Canadian standards.
DEVICE DESCRIPTION

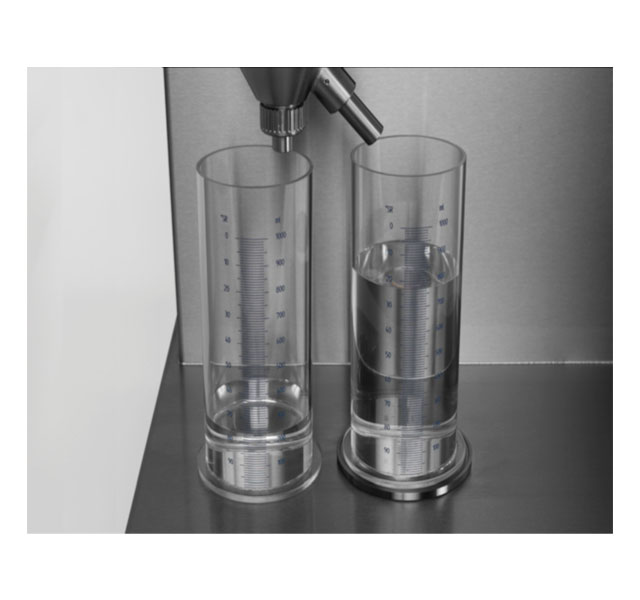

The PTE Austria’s Canadian freeness standard tester consists of a sturdy frame with a built-in measuring balance for precise measuring and a 10” touchscreen for easy operation. Mounted on this frame is the 1 000 ml cylinder with a special screen plate and the funnel, which guides the water from the upper cylinder into the measuring beaker, which is permanently weighed.
FEATURES
- top quality materials and manufacturing
- high quality light weight POM chambers
- stainless steel construction of the frame
- stainless steel housing
- automatic process
- operated via 10” touchscreen

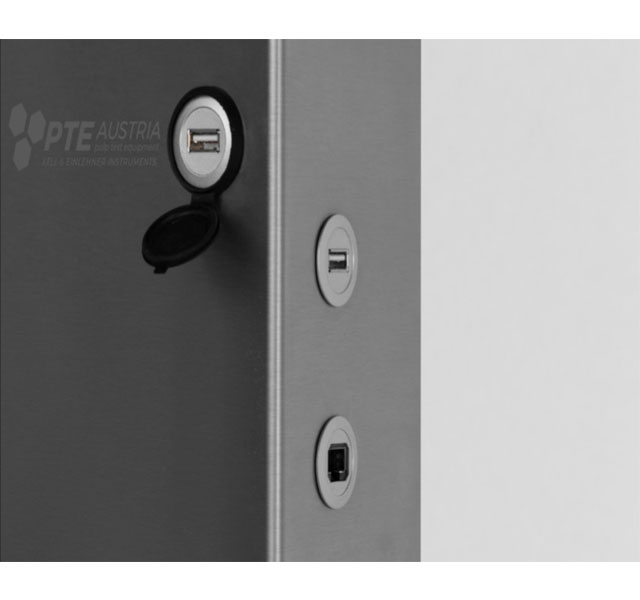

- USB and Ethernet port
- PTE Austria’s own software
- intuitive and easy operation
Connections
Voltage 110–240 V, 50/60 Hz AC
Compressed air 400–600 kPa
Models
| Code | Description |
|---|---|
| P.404.D | CSF digital |
| P.404.DT | CSF digital with temperature control |
Applicable standards
ISO 5267-2; TAPPI T227; SCAN C21/M4
