Chip Classifier

Pulp, Paper, Cardboard & Tissue

For fast and reproducible sorting and classification of wood chips.

Full Description

CODE: P.100.XXX

Device description

The wood chip classifier consists of a sturdy, heavy metal frame with motor, control panel and integrated timer. A set of sieves is mounted on a movable base plate, which is driven by a powerful motor. The individual sieves made of high-quality, lightweight aluminum are placed on top of each other and clamped together with a quick-action clamping device. The device moves the sieve set back and forth by 120 mm at a speed of 160 cycles per minute.

Connections

Voltage 230 V, 50 Hz AC

Specifications

ApplicationWood chip size classification

Models

Code Device
P.100.SCAN 4001 Device with sieve set according to SCAN CM 40:01 (see P.100.Z1)
P.100.TAPPI UM21 Device with sieve set according to TAPPI UM 21 (see P.100.Z2)
P.100.SCAN 4792 Device with sieve set according to SCAN CM 47:92 (see P.100.Z3)
Available sieve sets
Code Description Screens trays

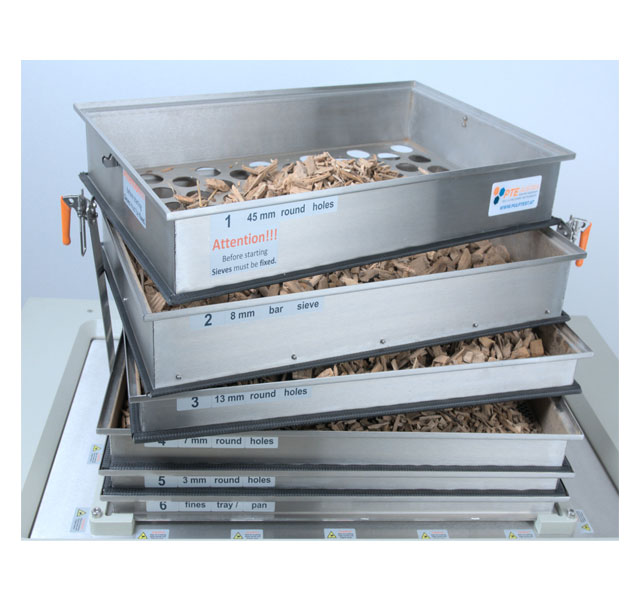

P.100.Z1 according to SCAN CM 40:01 45 mm round hole
8 mm bar screen
13 mm round hole
7 mm round hole
3 mm round hole
dust tray
P.100.Z2 according to TAPPI UM 21 45 mm round hole
8 mm bar screen
7 mm round hole
3 mm round hole
dust tray
P.100.Z3 according to SCAN CM 47:92 10 mm bar screen
8 mm bar screen
6 mm bar screen
4 mm bar screen
2 mm bar screen
dust tray

Applicable standards

SCAN CM 40:01; TAPPI UM 21; SCAN CM 47:92
