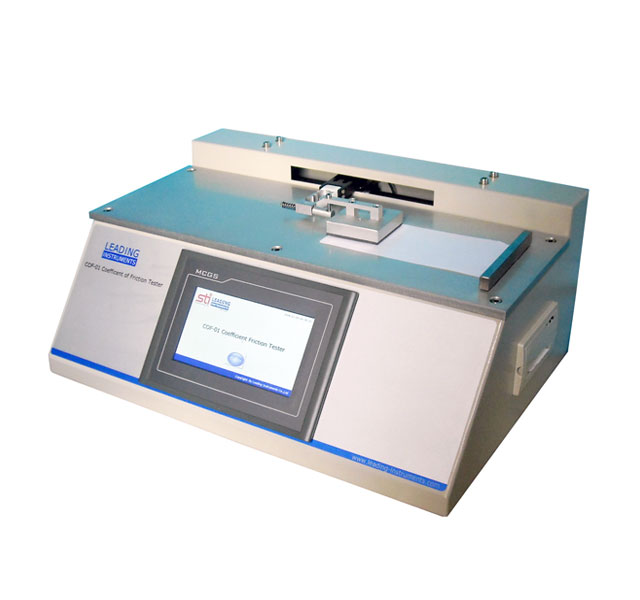

COF-01 Coefficient Of Friction Tester

Packaging Testing Equipment

The COF-01 Coefficient of Friction Tester is applicable for measuring the static and kinetic coefficients of friction of plastic films, sheets, rubber, paper, PP woven bags, fabric styles, metal-plastic composite strips/belts for communication cables, conveyor belts, wood, coatings, brake pads, windshield wipers, shoe materials and tyres, etc.

Full Description

With its material smoothness testing, users can control and adjust material quality technical indexes to meet application demands. Besides, this tester is applicable for measuring the smoothness of cosmetics, eye drops and other daily chemistry products.

APPLICATION PRODUCTS

  • Plastic films and sheets

  • Packaging materials and PP woven bags

  • Paper and cardboard

  • Rubber materials

  • Coated materials

  • Composite materials

  • Metal-plastic composite strips and belts

CHARACTERISTICS

  • PLC control and touchscreen operation.

  • Real-time display of test data, results and curves.

  • Both static and kinetic coefficients of friction can be measured.

  • In accordance with multiple international standards.

  • Test results calculation, analysis and curve superposition.

  • RS232 output and professional software.

  • Microprint for easy printing of test results.

Specifications

Load Cell Range0–5 N
Accuracy1% of reading force
Stroke130 mm
Test Speed150 mm/min
Mass of Sled200 g (Other weights customization available)
Ambient ConditionsTemperature 10°C–40°C; Humidity 20%RH–70%RH
Power SupplyAC 220V, 50Hz
Dimensions540 mm (L) × 380 mm (W) × 240 mm (H)

Applicable standards

ASTM D1894
