Leading Instruments Co Ltd

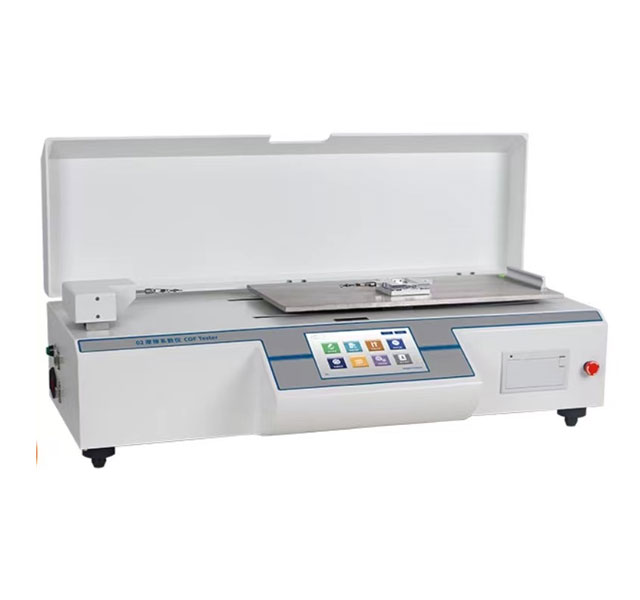

COF-02 Coefficient Of Friction Tester

Packaging Testing Equipment

COF-02 Coefficient Friction Tester is applicable in static and kinetic coefficient of friction tests of plastic films, sheets, rubber, paper, PP woven bags, fabric style, metal-plastic composite strips/belts, communication cable, conveyor belts, wood, coatings, brake pads, windshield wipers, shoe materials and tyres, etc

Full Description

With the material smoothness testing, users can control and adjust material quality technical indexes to meet application demands. Besides, this tester is applicable for the smoothness measurement of cosmetics, eye drops and other daily chemistry.

CHARACTERISTICS

  • Micro-computer control; LCD displays data, results and curves;

  • Menu interface, PVC operation board;

  • Adjustable testing speed;

  • Sled of any weight supportive;

  • Kinetic test, static test, and kinetic & static test are selectable;

  • Single or group testing results statistical analysis;

  • Various report modes;

  • Original data re-analysis, curve group comparison;

  • RS232 interface;

Specifications

Test Range:0-5N
Accuracy:±0.5% of reading force
Stroke:70 mm, 150 mm
Mass of sled:200g (standard)
.Note: Sleds of other weights can be ordered, sleds of any weights supportive.
Test Speed:100 mm/min, 150 mm/min (Note: other speeds should be adjusted before delivery)
Power:AC 220V 50Hz
Dimensions630mm(L) × 360mm(B) × 230mm(H)
Net weight33kg

Applicable standards

ISO8295, ASTM D1894

Product video

Downloads
