Double Knife Cutter
For preparing paper samples and even foils in a single operation – quickly and precisely.
Also searched as: double knife cutter, sample cutter, paper cutting, specimen preparation, 1924, 5626, 9895, 12625, P38, T456, T494, T549
Full Description
Code: E.209.xxx

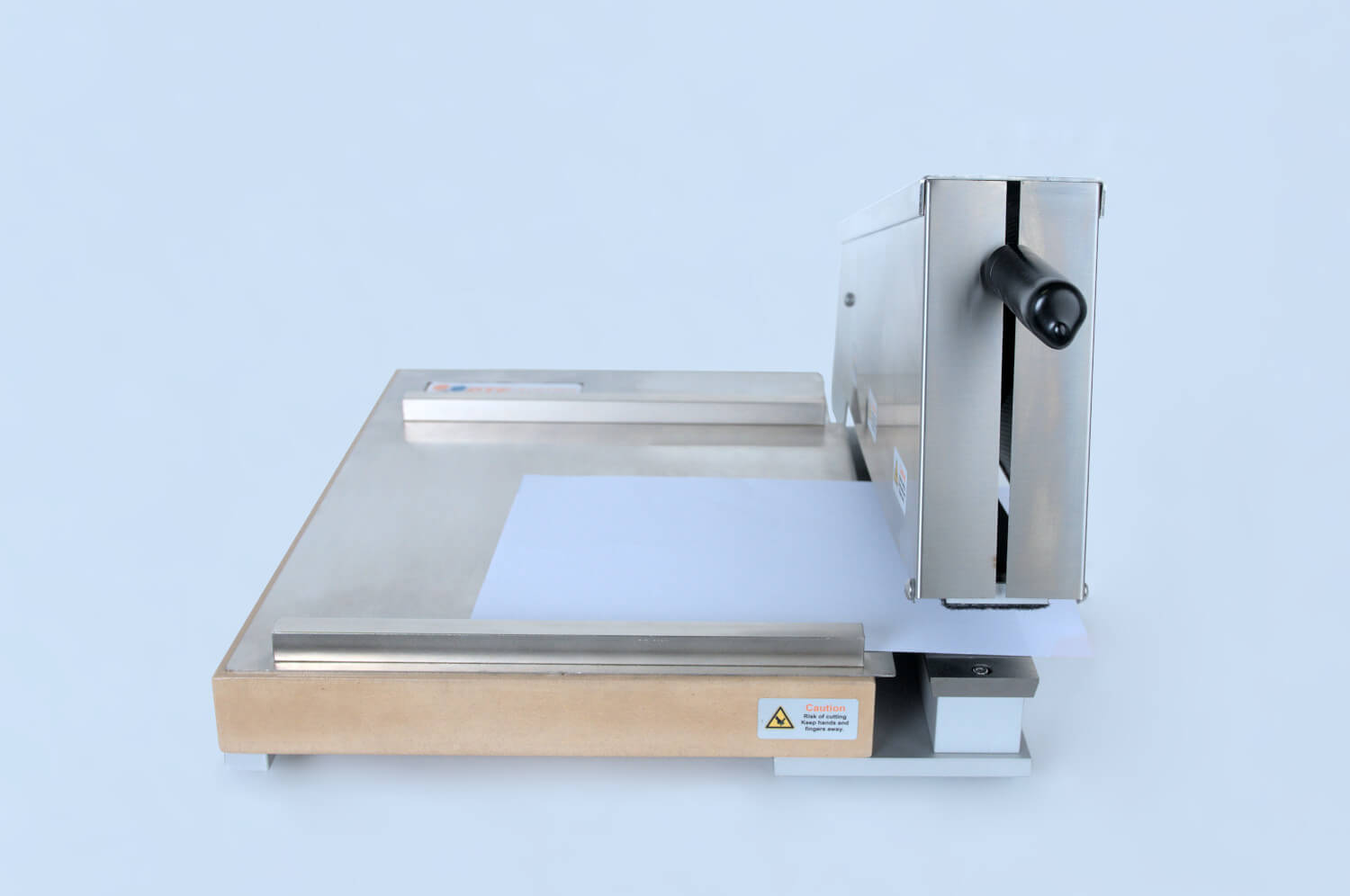

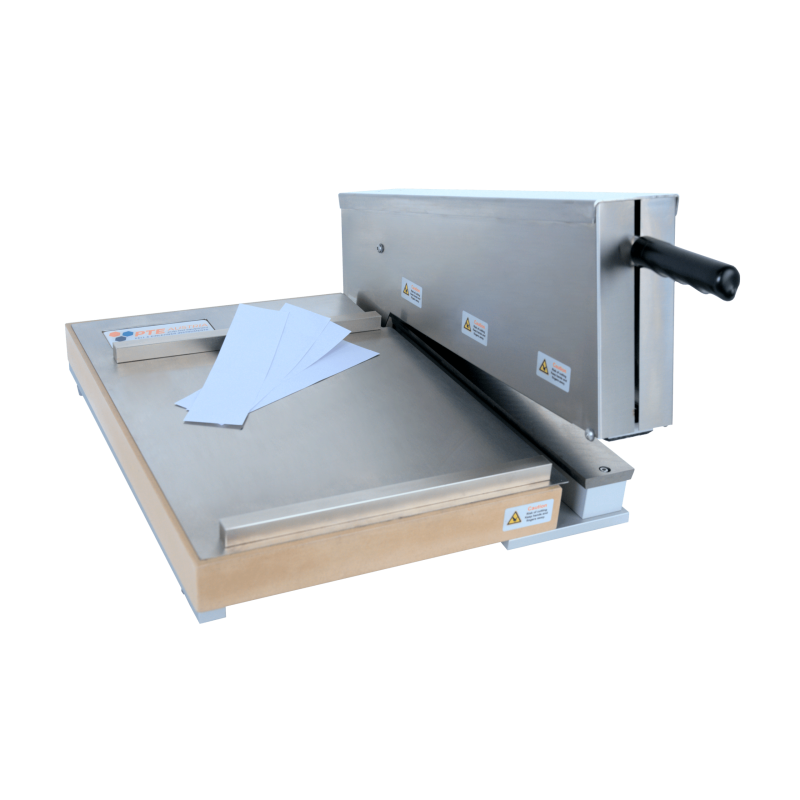

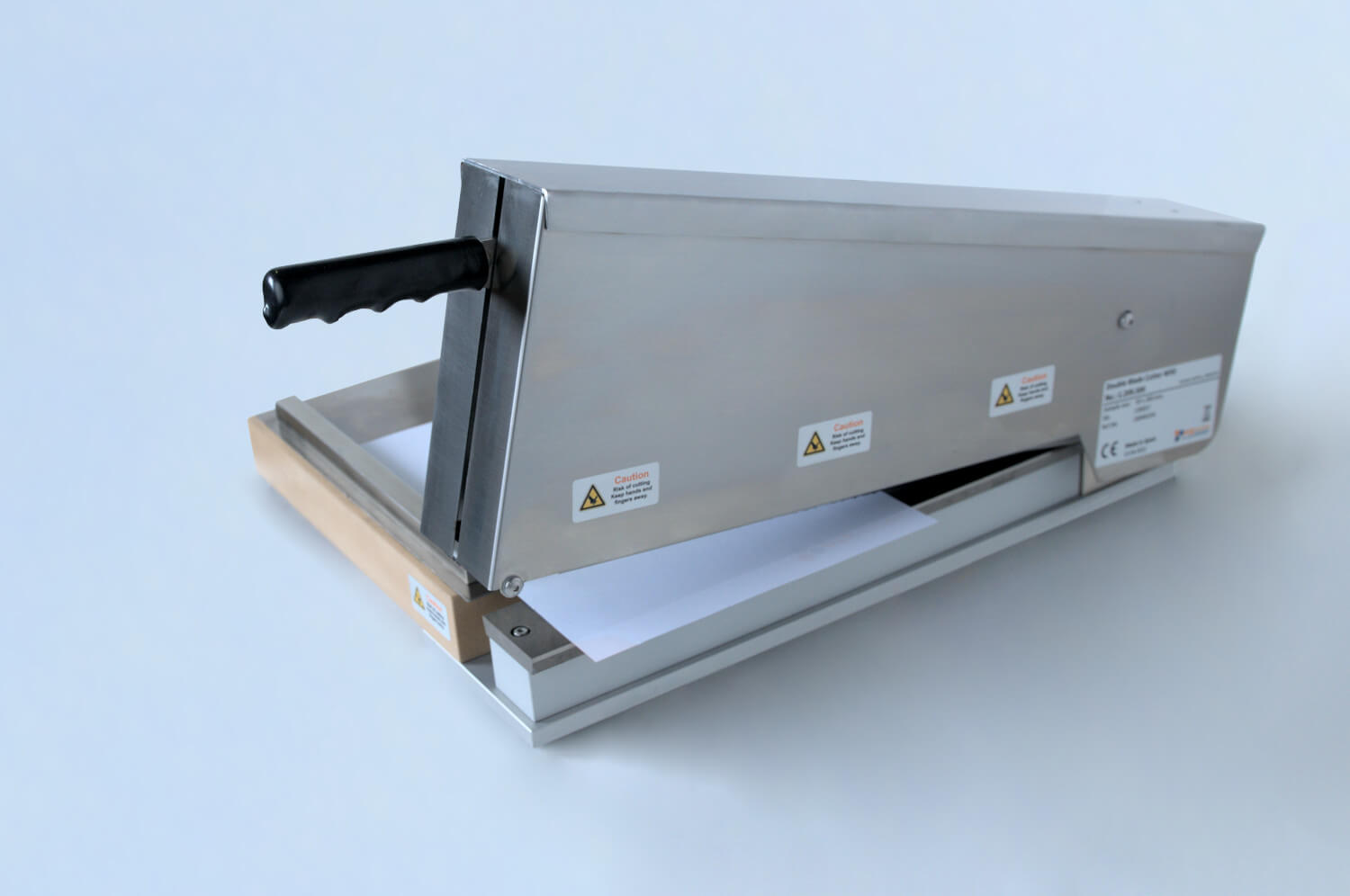

Device description

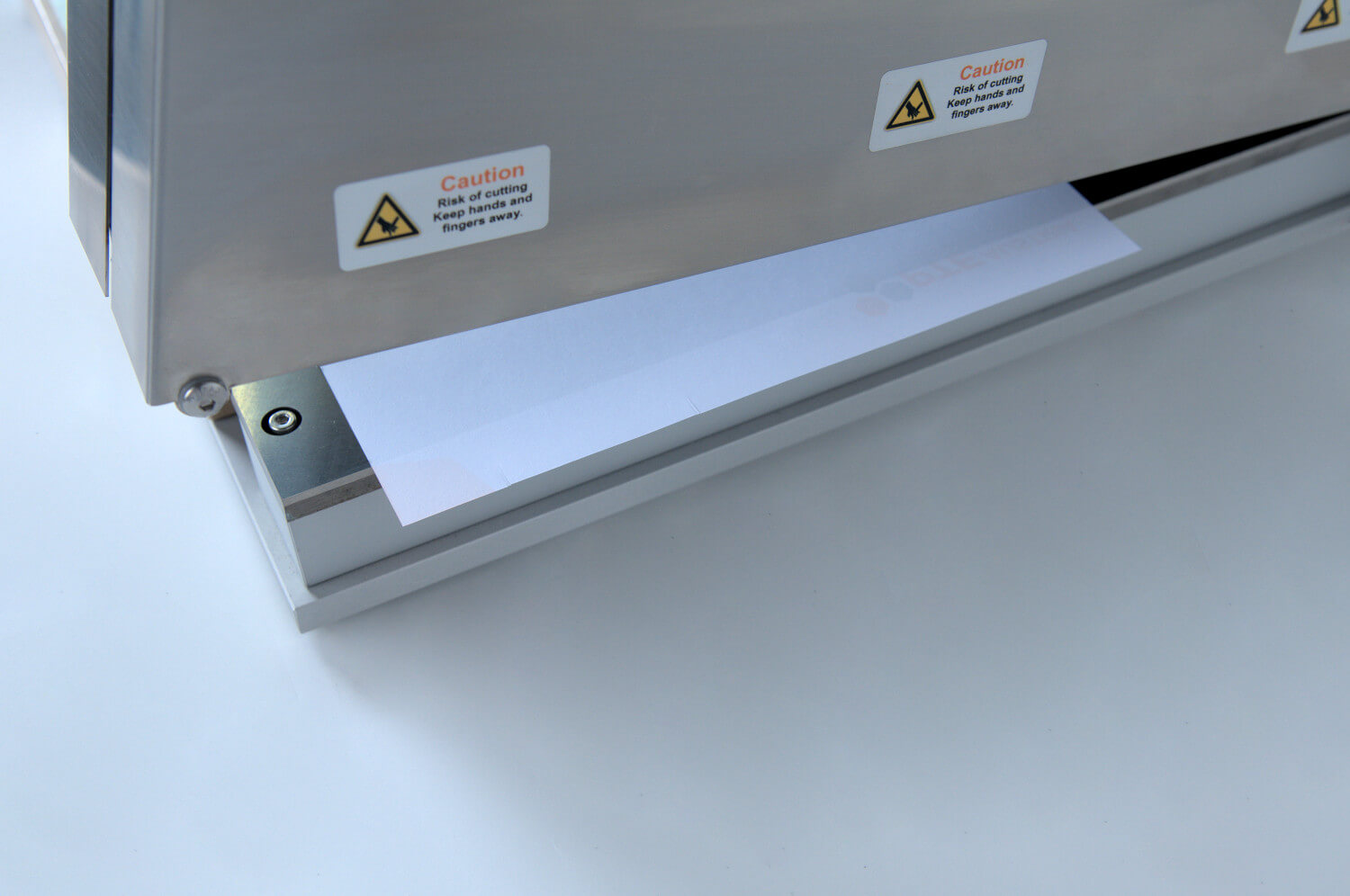

The double-knife cutter was developed to prepare sample strips with simple and effortless one-handed operation. The blades, made of hardened and ground special steel, are integrated in the lever and concealed under a safety cover. When inserting the sample material, the lever can be pressed down slightly to fix the sample and achieve greater accuracy of the samples. The standard cutting length is 260 mm and there are several cutting options of 10; 12.7; 15; 20 and 25.4 mm as well as the special cutting width of 50 mm for tissue tensile test samples.
Models
| code | Device |
|---|---|
| E.209.100 | Double knife cutter, sample width: 10 mm |
| E.209.127 | Double knife cutter, sample width: 12.7 mm |
| E.209.150 | Double knife cutter, sample width: 15 mm |
| E.209.254 | Double knife cutter, sample width: 25.4 mm |
| E.209.500 | Double knife cutter, sample width: 50 mm |
Applicable standards
ISO 1924; 5626; 9895; 12625, SCAN P38, TAPPI T456; T494; T549
