PTE Pulp Test Equipment GmbH

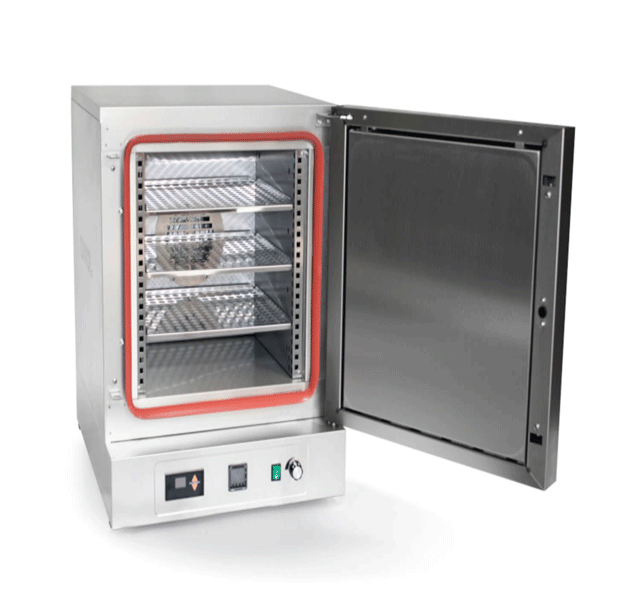

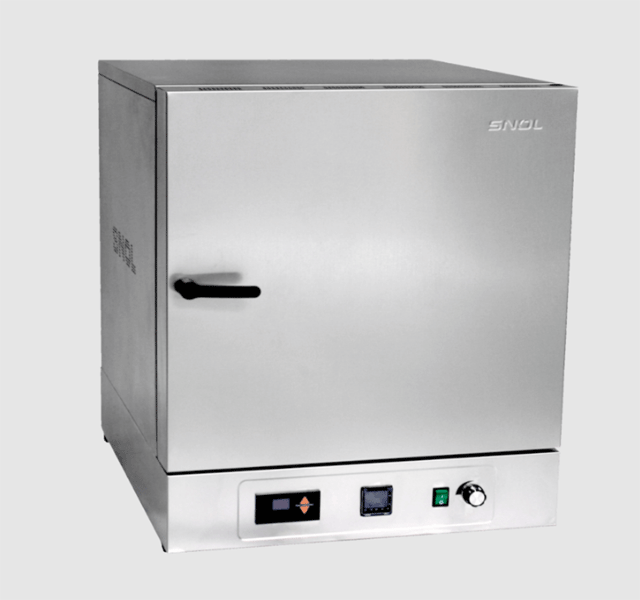

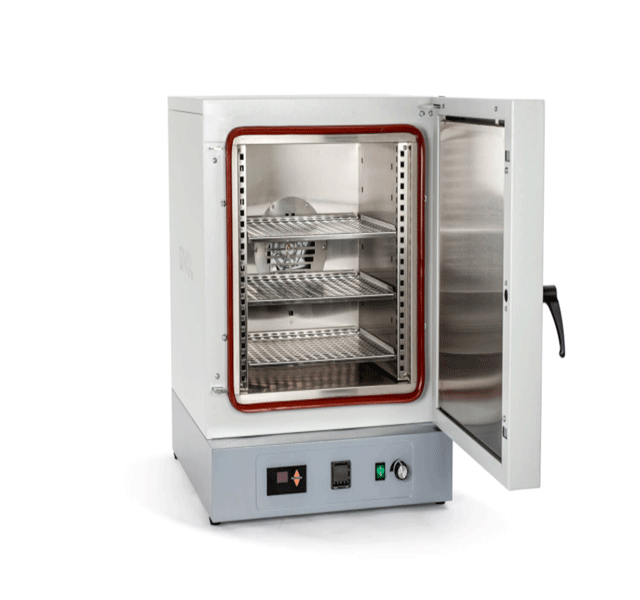

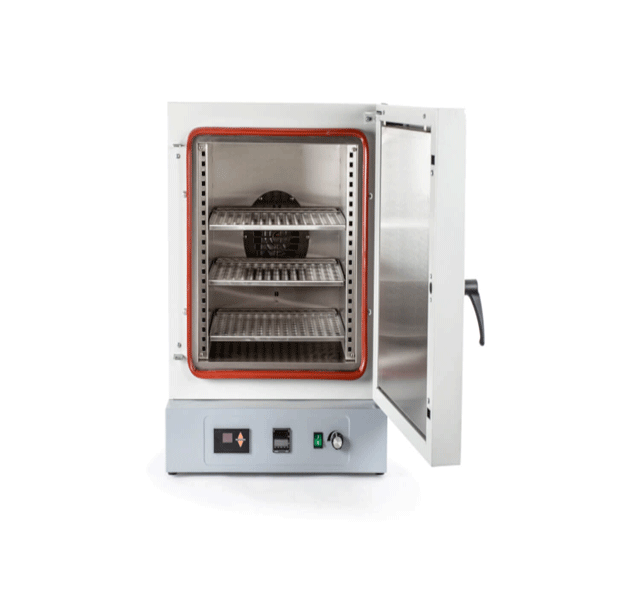

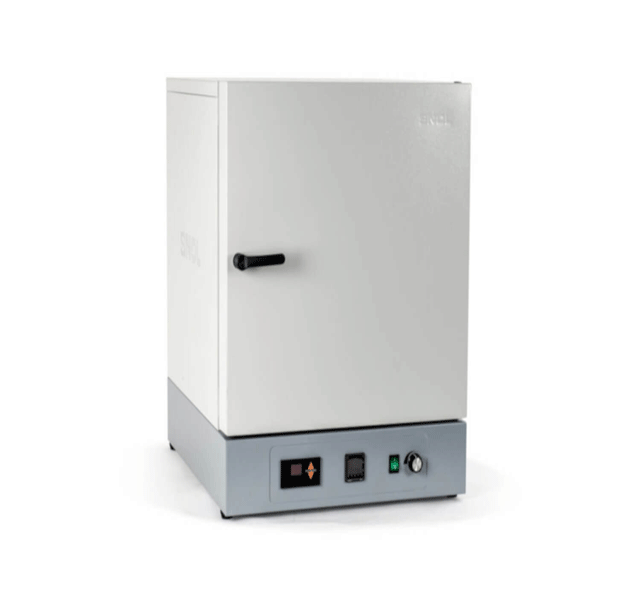

Drying Cabinet

Pulp, Paper, Cardboard & Tissue Packaging Testing Equipment

For heat treatment of various materials up to 300°C.

Full Description

Stainless steel or gray powder-coated housing

Code: L.801.xxx.xx

Device description

This electric oven is perfect for drying, heating, thermal testing, ageing and similar applications in an environment with natural air circulation. The forced air circulation enables an even temperature distribution and ensures optimum results. The oven is ideal for use in scientific laboratories, educational institutions, medicine and the pulp industry.

Connections

Voltage 230 V, 50 Hz

Optional accessories

“Eurotherm 3216” (non-programmable temperature controller)
“Eurotherm 3208” (programmable temperature controller)
“Omron E5CC-T” (programmable temperature controller)
PC interface and proprietary software
Non-adjustable overheating protection
Adjustable overheating protection “Eurotherm 3216i”
Timer
Argon or nitrogen protective gas supply system (flow meter, reducer and connections) + additional chamber seal
Additional hole with cover Ø 50 mm
Additional chamber seal
Window with 258 x 200 mm
Additional shelf
Reinforced shelf

Models

code Execution Max. Temp. Useful chamber volume Chamber dimensions [mm] External dimensions [mm] Net weight
L.801.020 gray* 300°C 20 l 240 x 280 x 340 460 x 680 x 640 36 kg
L.801.020.SS Stainless steel 300°C 20 l 240 x 280 x 340 460 x 680 x 640 36 kg
L.801.060 gray* 300°C 60 l 380 x 380 x 420 600 x 755 x 720 49 kg
L.801.060.SS Stainless steel 300°C 60 l 380 x 380 x 420 600 x 755 x 720 49 kg
L.801.120 gray* 300°C 120 l 550 x 400 x 580 750 x 775 x 880 68 kg
L.801.120.SS Stainless steel 300°C 120 l 550 x 400 x 580 750 x 775 x 880 68 kg
L.801.220 gray* 300°C 220 l 730 x 500 x 620 930 x 875 x 915 91 kg
L.801.220.SS Stainless steel 300°C 220 l 730 x 500 x 620 930 x 875 x 915 91 kg
L.801.420 gray* 300°C 420 l 1000 x 500 x 860 1200 x 905 x 1200 178 kg
L.801.420.SS Stainless steel 300°C 420 l 1000 x 500 x 860 1200 x 905 x 1200 178 kg

Downloads
