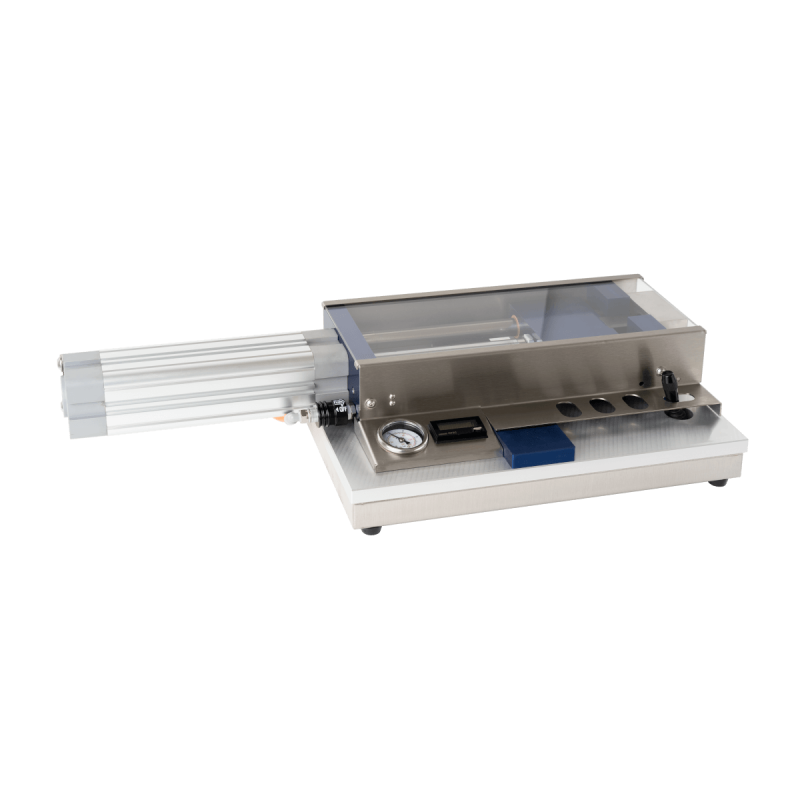

ECT Cutter
For preparing samples for the edge crush test (ECT).
Also searched as: ECT cutter, edge crush, sample cutter, corrugated board, double roll cutter, strip cutting, specimen preparation, ect cutter type billerud pte pulp test equipment gmbh
Full Description
Billerud” type
Code: D.312.025
Device description
This high-precision “Billerud” cutter is equipped with two parallel guided razor blade knives, which cut clean and parallel cardboard samples with a width of 25 mm and a length of 100 mm. When the sample to be cut is placed on the safety guide and the lever is operated, the knives move by means of compressed air and cut out a sample piece.
Features
- High-precision razor blades
- Parallel and clean cuts
- Mechanical timer
- Safety guides
- Acrylic glass safety cover
- Pneumatic cutting
- CE certified
Connections
| Compressed air | Ø 6 mm (max. 400 kPa) |
Specifications
| Sample width | 25 mm |
|---|---|
| Sample width | 100 mm |
| Sample width | up to 7 mm |
Applicable standards
ISO 3037
