PTE Pulp Test Equipment GmbH

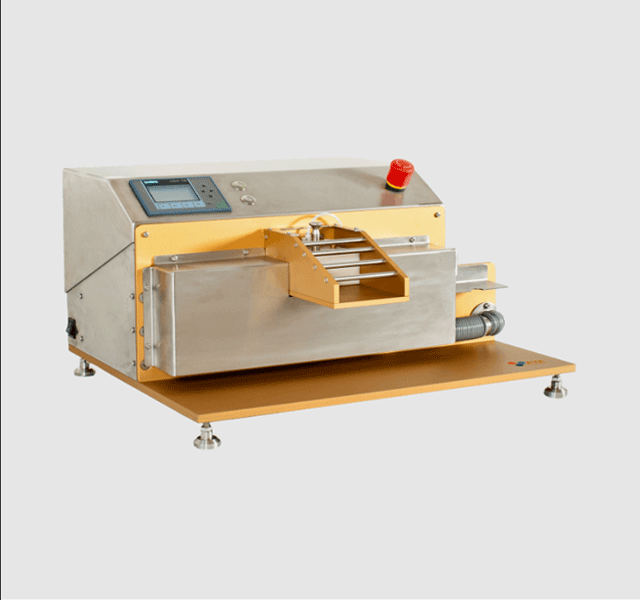

ECT sample saw

Pulp, Paper, Cardboard & Tissue

To prepare very precise and exact corrugated board samples for the Edge Crush Test.

Full Description

Code: P.302

Use

For the preparation of very precise and exact cardboard samples for the edge compression test (ECT).

Device description

Studies have shown that a specimen prepared by the ECT specimen saw achieves better results in the edge crush test. Therefore, this saw was developed by PTE Austria in a modern and new design for the automatic preparation of precise and accurate ECT samples. The device is built into a robust stainless steel housing with stylistic golden elements.

Features

  • Robust design with elegant gold elements
  • High-speed motor for the cleanest cuts
  • Automatic cutting process

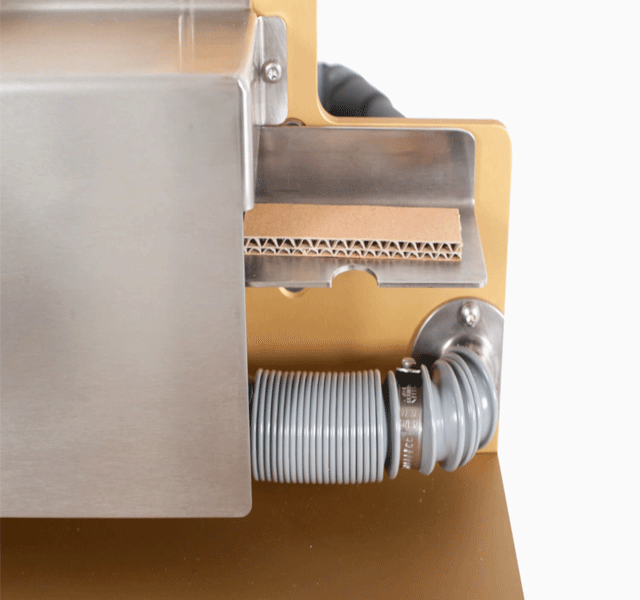

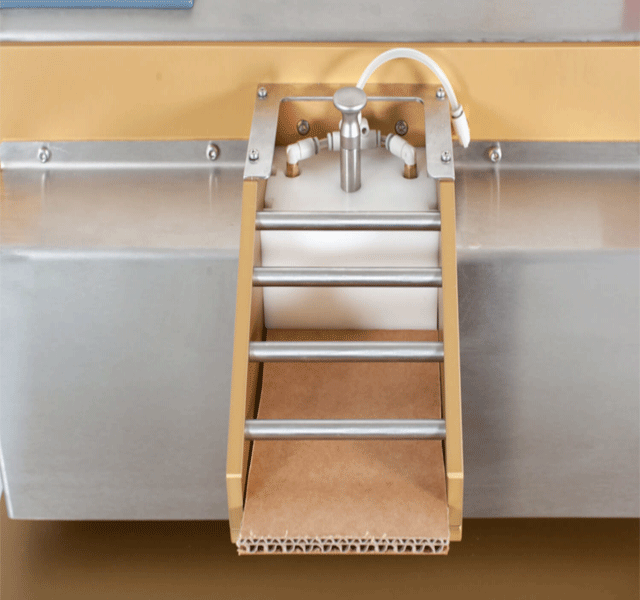

  • Automatic sample ejection
  • Cut counter
  • Easily replaceable saw blades
  • Safety and protective devices
  • with vacuum cleaner cleaning system
  • digital display
  • CE certified

Connections

Voltage 230 V, 50 Hz AC
Compressed air 400 – 600 kPa
Vacuum cleaner Connection on the back of the appliance

Specifications

Sample thicknessup to 22 mm
Sample widthexactly 25.4 mm (1-inch)
Sample length100 mm

Applicable standards

DIN EN ISO 3037; ISO 13821; DIN 53149; TAPPI T811, T823, T838, T839; FEFCO No. 8
