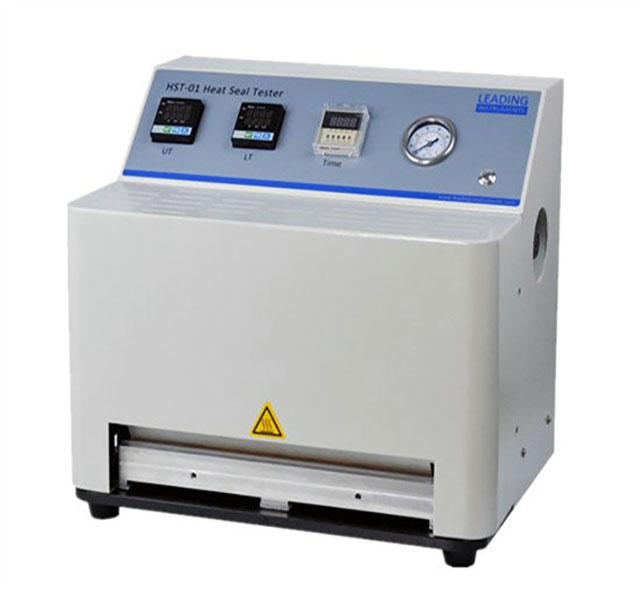

HST-01 Heat Seal Tester
HST-01 Heat Seal Tester seals the specimen to determine the seal parameters of basic film, laminated films, coating paper and other heat sealing laminated films according to the requirement of relative standards. The seal parameters include heat seal temperature, dwell time, and the pressure of heat seal.
Full Description
Heat seal materials that have different melting point, heat stability, fluidness, and thickness could show various heat seal properties, which cause obviously different seal technique.
HST_01 Heat Seal Tester seals the specimen to determine the seal parameters of basic film, laminated films, coating paper and other heat sealing laminated films according to the requirement of relative standards. The seal parameters include heat seal temperature, dwell time, and the pressure of heat seal. Heat seal materials that have different melting point, heat stability, fluidness, and thickness of could show various heat seal properties, which cause obviously different seal technique.
CHARACTERISTICS
-
Micro-computer control; LCD display;
-
Manu interface, PVC operation board;
-
P.I.D digital temperature control system;
-
Underlying double cylinder simultaneous loop;
-
Two test start mode of manual and foot pedal;
-
Independent temperature control of the upper and lower heat seal head;
-
Various heat seal surfaces made to order;
-
Encapsulate even-temperature heating pipe by aluminum;
-
Rapid insertion and separation heating pipe plug;
-
Anti-scald design;
-
RS232 port;
TECHNICAL INDEXES
-
Seal Temperature: Room temperature–300°C
-
Temperature Control Accuracy: ±0.2°C
-
Dwell Time: 0.1s–999.9s
-
Dwell Pressure: 0.05MPa–0.7MPa
-
Seal Surface: 330 mm × 10 mm (also customize)
-
Heat Type: Single heat surface or double heat surface
-
Gas Source Pressure: 0.05MPa–0.7MPa (Users prepare gas source themselves)
-
Gas Source Inlet: Φ6mm polyurethane pipe
-
Power: AC 220V 50Hz
-
Net Weight: 43kg
Applicable standards
ASTM F2029
