Leading Instruments Co Ltd

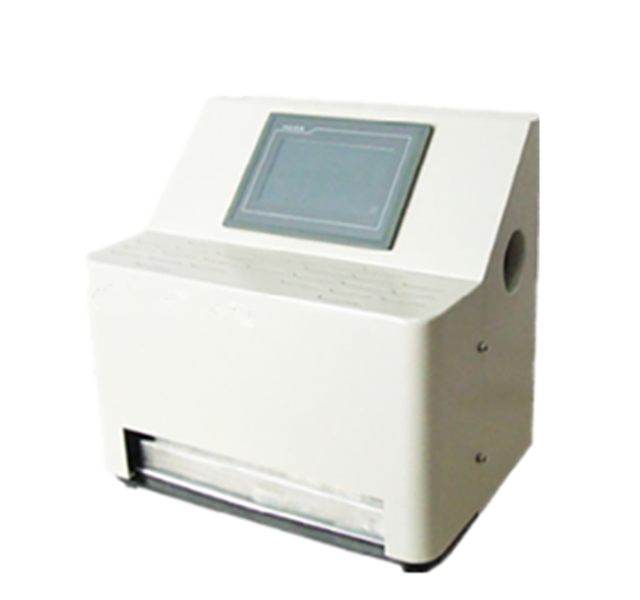

HST-01A Heat Seal Tester

Packaging Testing Equipment

The HST-01A Heat Seal Tester tests the specifications of sealing force and performance of heat-sealing films, laminated films, coated paper and other heat-sealing laminated materials according to the requirements of relevant standards.

Full Description

The test parameters include heat-seal temperature, dwell time and heat-seal pressure. Heat-sealing materials with different melting points, heat stability, fluidity and thickness may exhibit different heat-sealing properties, which can result in different sealing techniques.

1. CHARACTERISTICS

  • Micro-computer control LCD display;

  • Menu interface, PLC operation board;

  • R&D digital temperature control system;

  • Underlying double-cylinder simultaneous loop;

  • Two test start modes: manual and foot pedal;

  • Independent temperature control of the upper and lower heat-seal heads;

  • Various heat-seal surfaces made to order;

  • Encapsulated even-temperature heating pipe by aluminum;

  • Rapid immersion and separation heating pipe;

  • Anti-scald design;

  • RS232 port.

Specifications

Seal Temperature:Room temperature to 300°C
Temperature Control Accuracy±0.2°C
Dwell Time:0.1–99.9 sec
Dwell Pressure:0.05 MPa–0.7 MPa
Seal Surface:300 mm × 10 mm (customizable)
Heat Seal Range:Suitable for different heat-seal surfaces
Gas Source Pressure:0.05 MPa–0.7 MPa (Prepare pure gas source themselves)
Gas Source InletΦ6 mm polyurethane pipe
PowerAC 220V, 50Hz
Net Weight:15 kg

Applicable standards

ASTM F2029
