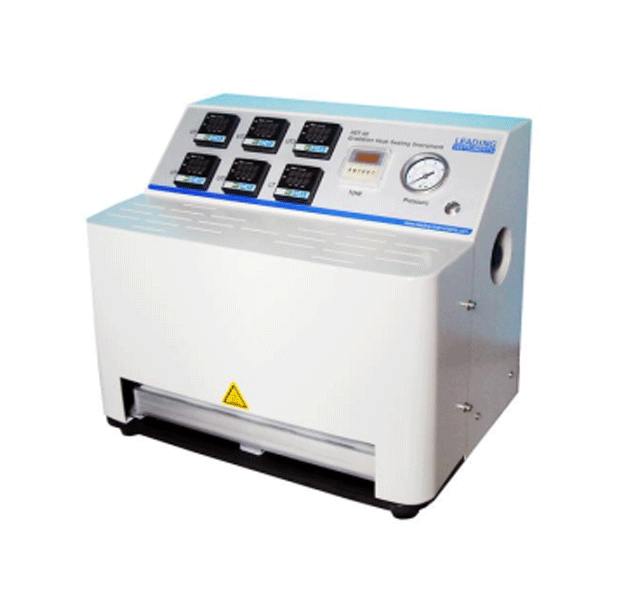

HST-02 Gradation Heat Sealing Instrument

Packaging Testing Equipment

The HST-02 Gradation Heat-Sealing Instrument can determine five groups of seal parameters at one time, including heat-seal temperature, time and pressure of plastic films, laminated films for flexible packaging, coating paper, and other materials.

Full Description

With different melting points, heat stability, fluidity and thickness of heat-seal materials, the instrument can determine different seal technical parameters accurately and efficiently.

CHARACTERISTICS

  1. A single test can efficiently obtain five groups of different heat-sealing parameters, thus saving operation time.

  2. Digital PID temperature control for accurate temperature calibration.

  3. Sealing jaws are heated evenly to prevent uneven heating of the sample.

  4. Manual and pedal test start-up modes with anti-scald safety design.

  5. Independent temperature control of the upper and lower sealing jaws.

  6. Non-standard sealing jaws and patterns can be customized.

Specifications

Heat Seal TemperatureRoom temperature–250°C
Dwell Pressure:0.05 MPa–0.7 MPa
Dwell Time:0.1 s–999.9 s
Temperature Control Accuracy±0.2°C
Temperature Gradation≤2°C
Gas Supply Pressure0.05 MPa–0.7 MPa (users provide gas source themselves)
Gas InletΦ6 mm polyurethane pipe
Seal Surface40 mm × 10 mm × 5 pcs
Power Supply:AC 220V, 50Hz

Applicable standards

ASTM F2029
