PTE Pulp Test Equipment GmbH

Laboratory Pulper

Pulp, Paper, Cardboard & Tissue

For dissolving dry samples in suspension on a laboratory scale.

Full Description

Code: P.950.xxxx

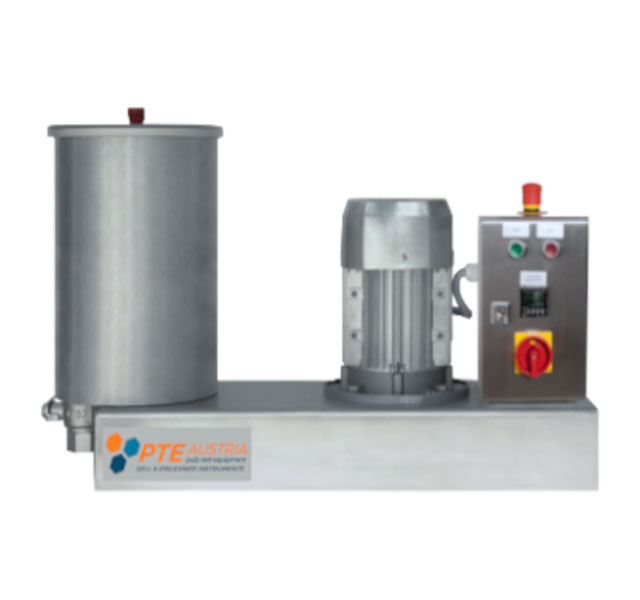

Device description

The device consists of a stirring tank in which a propeller runs at the bottom. The propeller in the lower part of the pulper is driven by a V-belt. The motor is equipped with a frequency converter for speed regulation. An outlet with a ball valve is located at the bottom of the pulper for removing the suspension.

Features

  • Top-notch quality and craftsmanship
  • Pulper tank and base made of stainless steel
  • Corrosion-resistant Materials
  • Several safety devices
  • Digital revolution counter
  • Stepless speed regulation
  • Ball valve outlet for easy withdrawal of sample

Connections

Voltage 230 V, 50 Hz AC

Specifications

Speed0 – 1 400 rpm
Consistency range2 – 7 %

Models

Code Description
P.950.0005 Pulper with 5l suspension capacity (~ 8l tank)
P.950.0008 Pulper with 8l suspension capacity (~ 12l tank)
P.950.0017 Pulper with 17l suspension capacity (~ 22l tank)
P.950.0025 Pulper with 25l suspension capacity (~ 30l tank)
P.950.0045 Pulper with 45l suspension capacity (~60l tank)
