PTE Pulp Test Equipment GmbH

Luminous Table & Special Device

Pulp, Paper, Cardboard & Tissue

For the visual examination of dirt and splinters in paper and cardboard samples in transmitted light.

Full Description

FULLY ERGONOMIC DESIGN

CODE: D.806.XXX

DEVICE DESCRIPTION

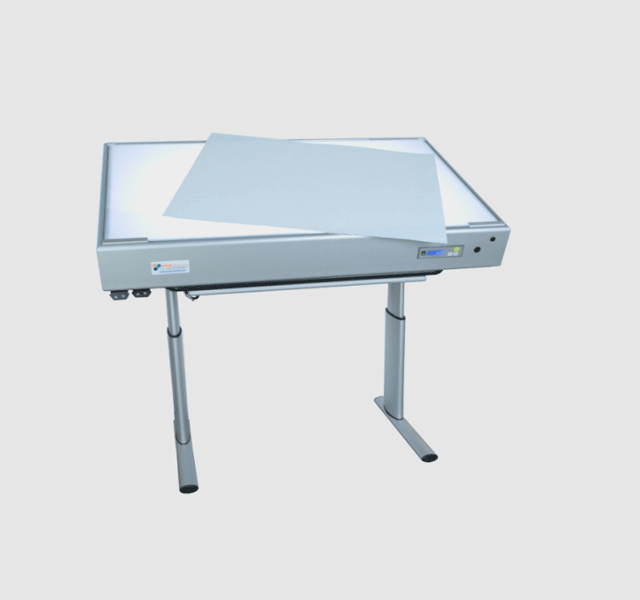

This especially ergonomic luminous table model ensures highest comfort for every user and tends to all your needs. It not only permits classical transparency and film viewing, but also quality control of translucent copy under a D50 standard illuminant. The color-neutral, anti-reflective surface and special reflectors ensure homogeneous illumination with high luminous efficiency. The light is continuously dimmable between 500 and 5 000 lux via the integrated digital display or the dimming knob (depending on the model). The working height is easily adjustable by using the up & down switch and another switch is installed for tilting the luminous plate from 0 – 90°.

FEATURES

robust and especially ergonomic design

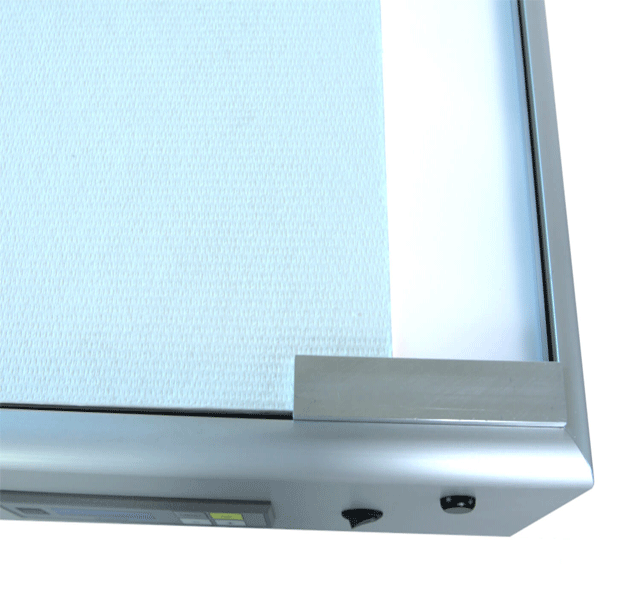

color-neutral, anti-reflective surface

special reflectors for homogeneous illumination with high luminous efficiency

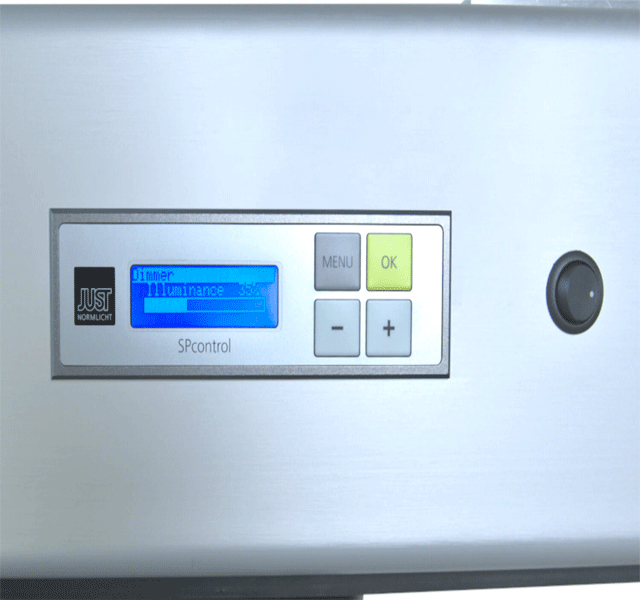

control via digital display

continuously dimmable: 500 – 5 000 lux

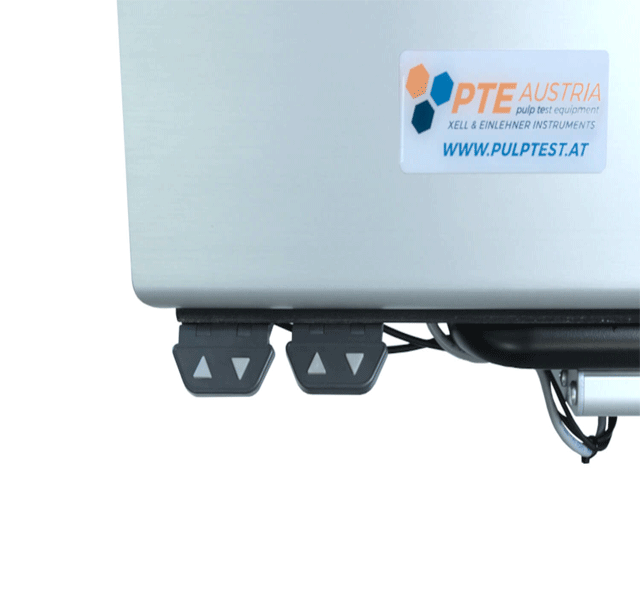

working height adjustable & tiltable via switches

luminous plate tiltable: 0 – 90°

luminous density: 2 500 – 3 000 cd/m²

illumination: 9 x 36 watts / 5 000 Kelvin

illumination area: 116 x 93 cm (other sizes possible upon request)

CONNECTIONS

Electricity 230 V, 50 Hz AC

Models

Article Code Description
D.806.700 Luminous Table fully ergonomic model with dimming knob
D.806.701 Luminous Table fully ergonomic model with digital display

Applicable standards

ISO 5350
