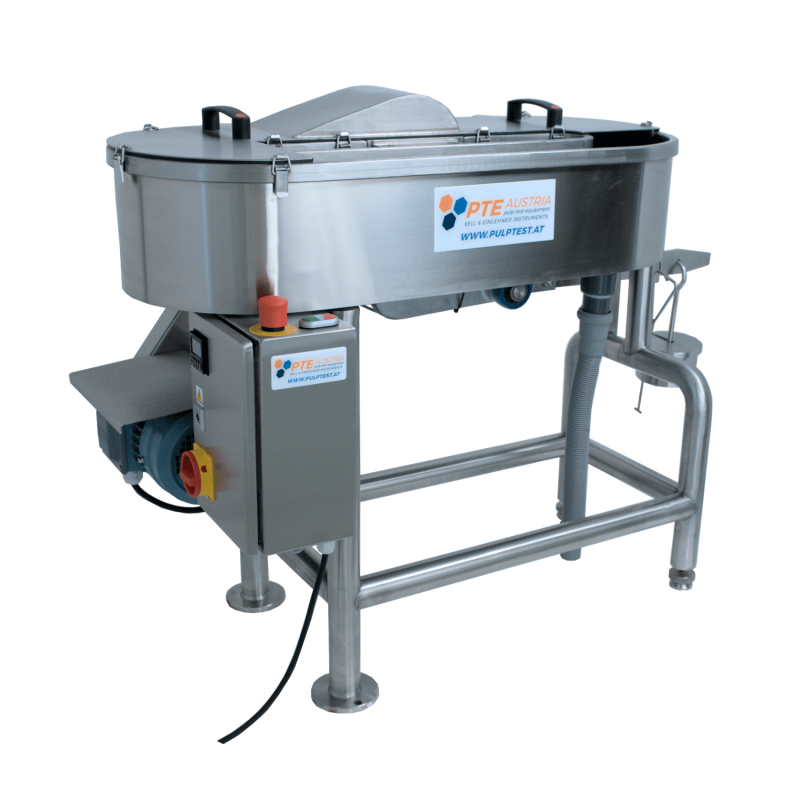

PTE Laboratory Valley Beater
For beating pulp according to standardised conditions (360g).
Also searched as: Valley beater, laboratory beater, pulp beating, pulp refining, T200m, T205m, 5264-1
Full Description
Code: P.505.023
Device description

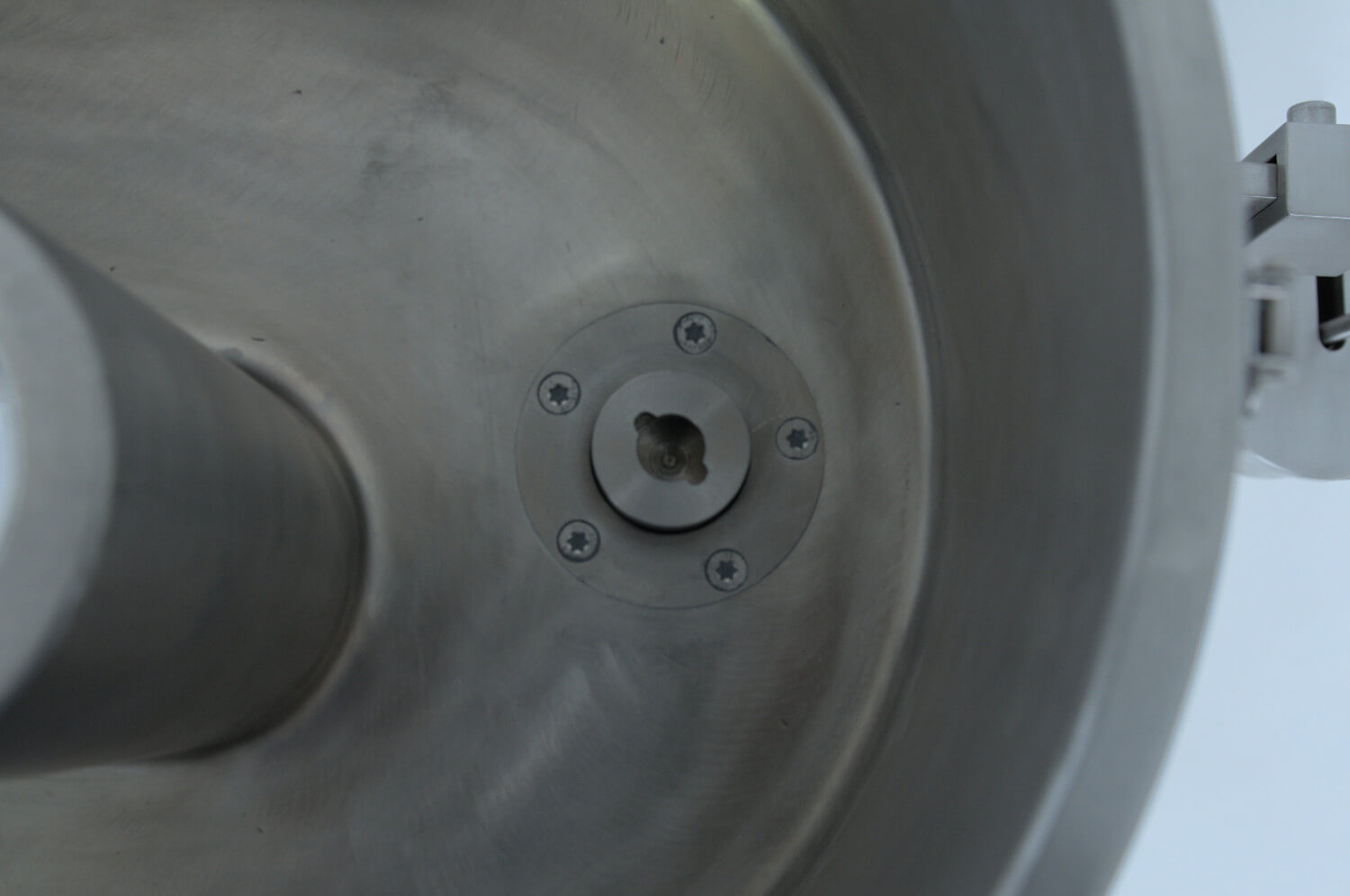

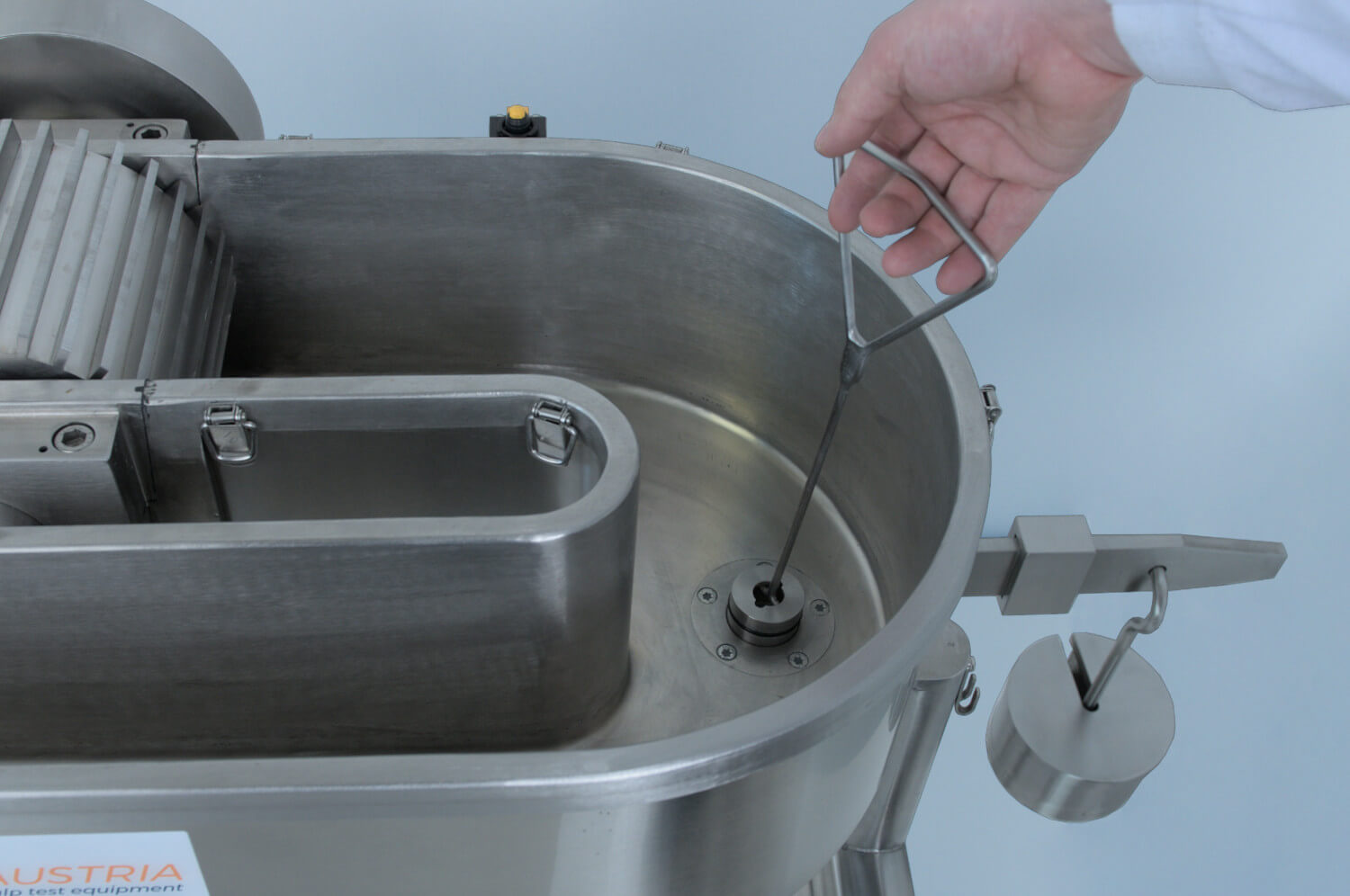

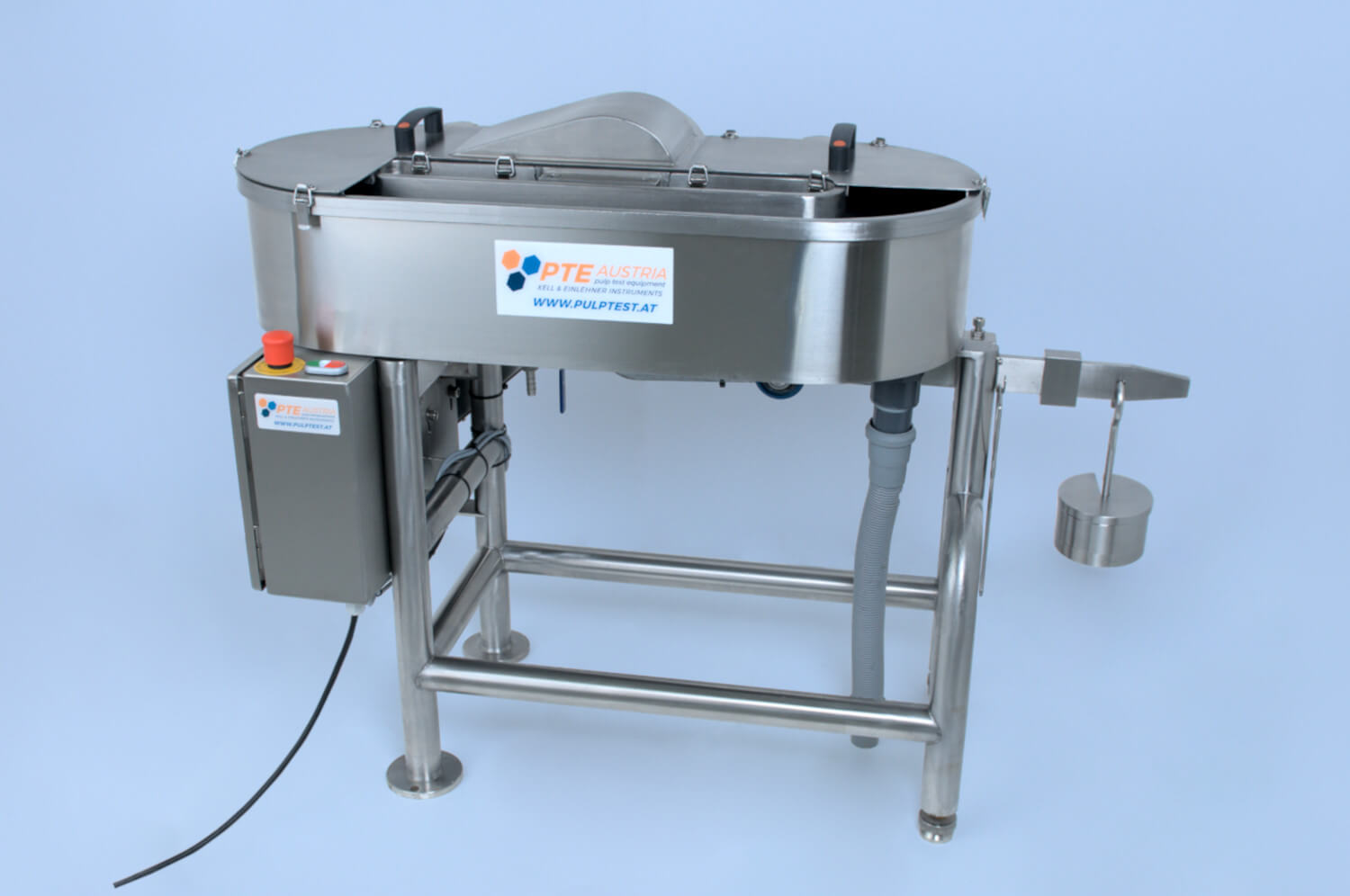

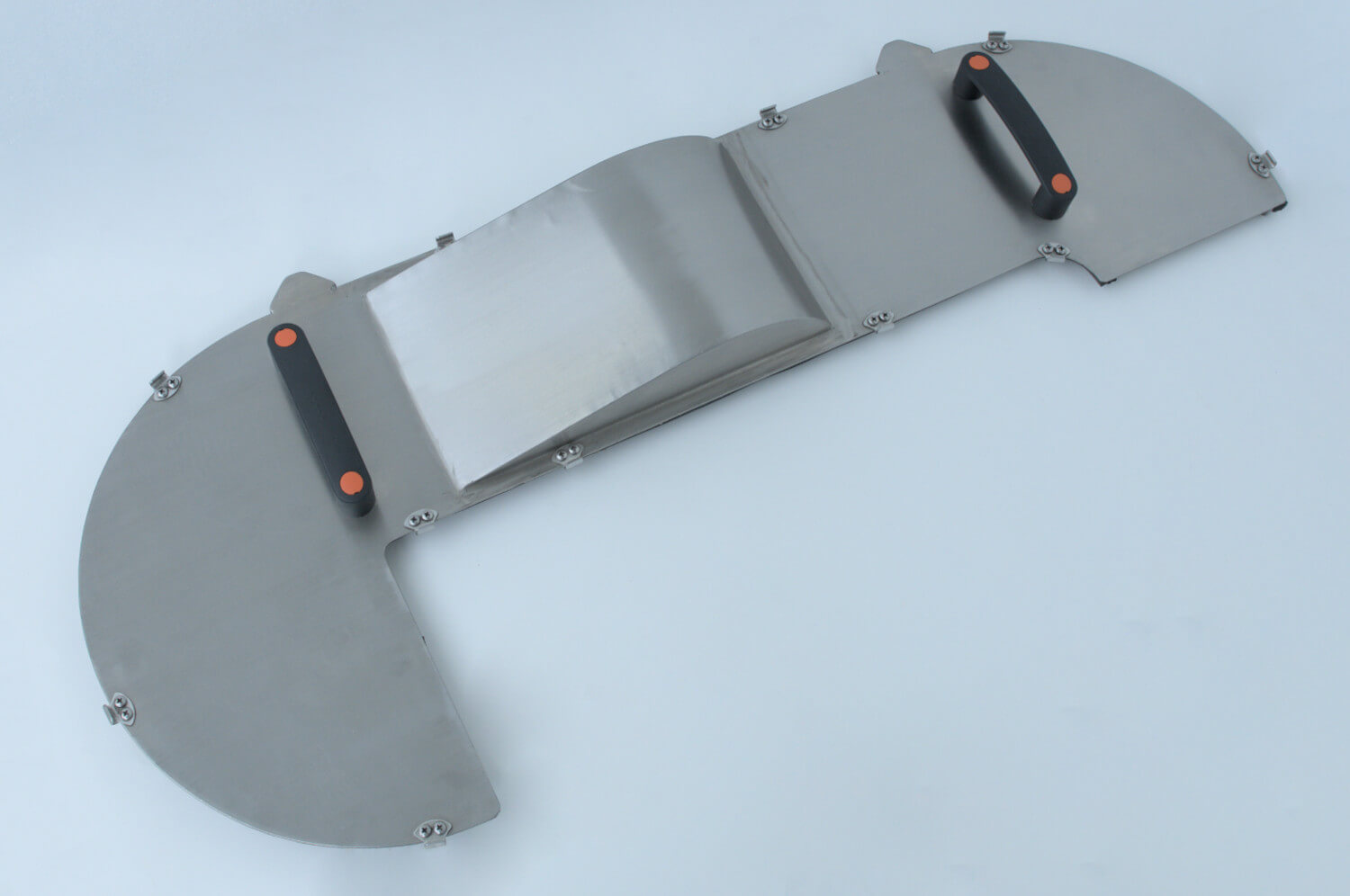

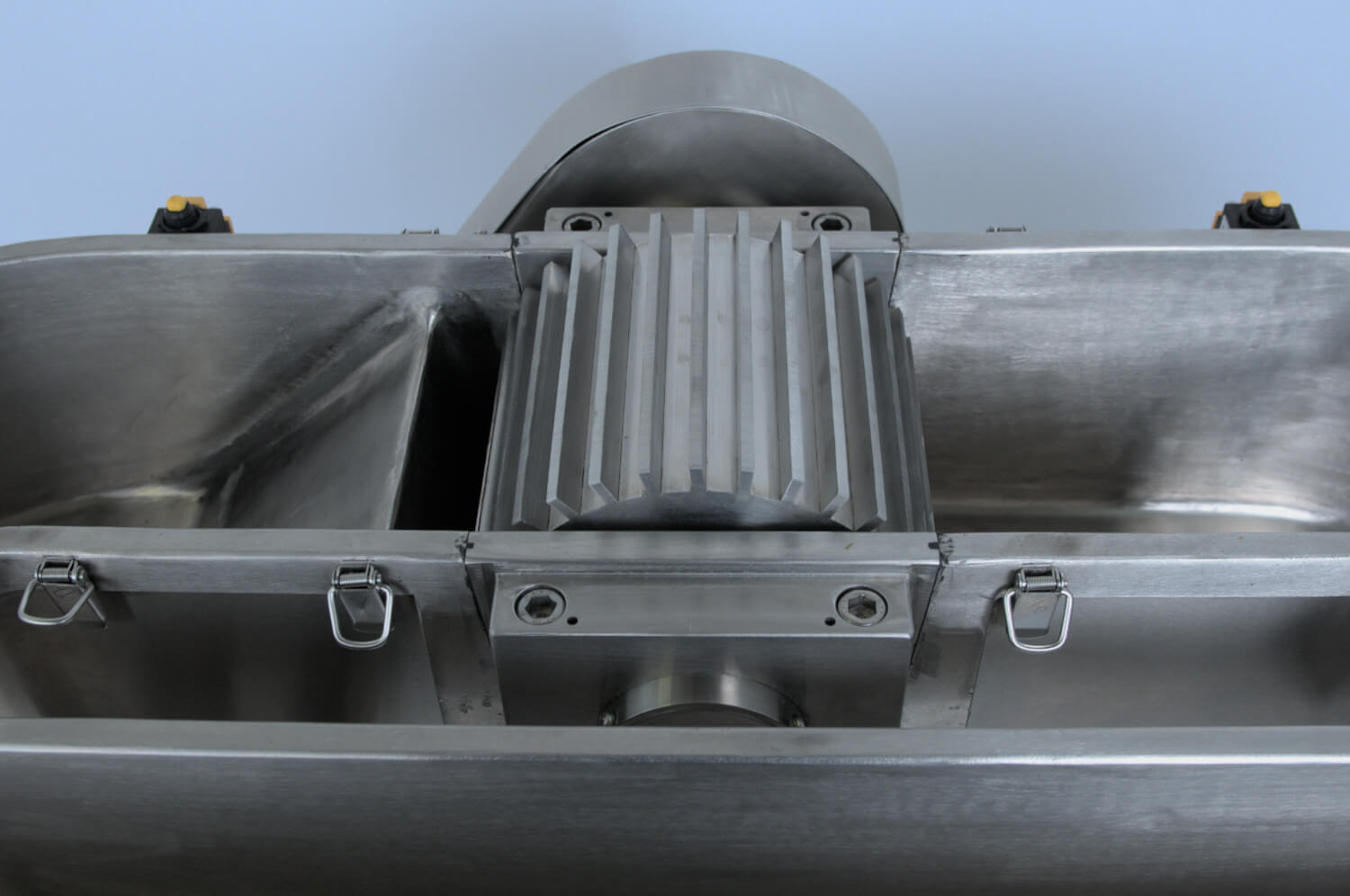

The “Valley” laboratory Hollander is made entirely of stainless steel. The beating tank has a capacity of 23 liters and can beat 360 g of pulp in a single cycle. The rollers, including the bed knife, have a width of 152 mm and a diameter of 190–194 mm. The bed knife consists of seven 3.2 mm-thick stainless steel blades. To ensure safe operation of the machine, the rollers and blades are enclosed by a stainless steel cover.
Features
- Top-notch quality and craftsmanship
- Made entirely of stainless steel
- High-quality knives and knife holders made of non-corrosive materials

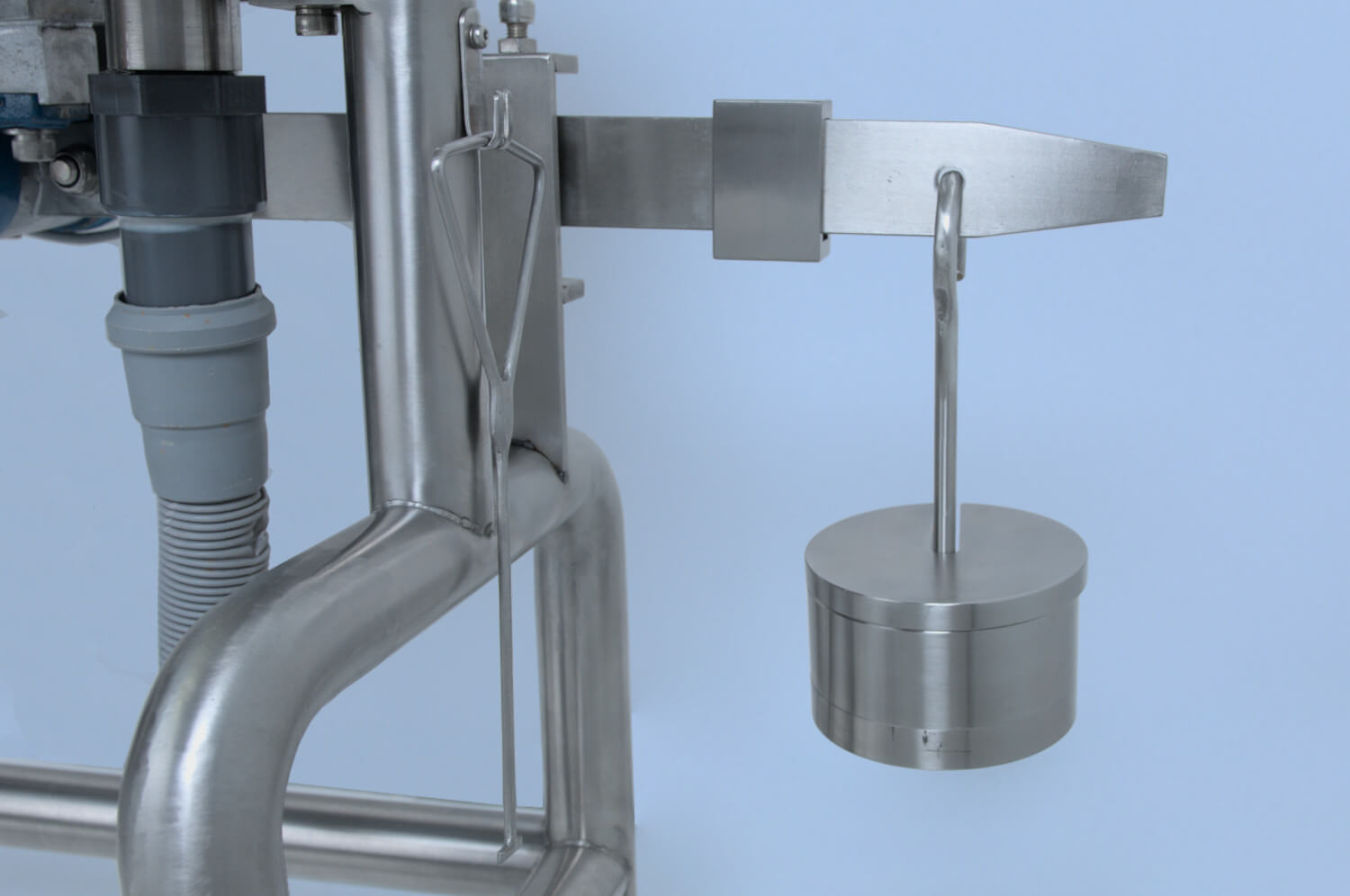

- Adjustable impact pressure
- Performance in accordance with international standards
Connections
| Voltage | 230 V, 50 Hz AC |
Specifications
| Volume | 23 liter |
|---|
Applicable standards
TAPPI T200m, T205m; ISO 5246-1; SCAN C25; CPPA C.2
