Rapid Köthen Dryer Table
For drying laboratory sheets made by the Rapid Köthen sheet former.
Also searched as: Rapid Köthen dryer, sheet dryer, laboratory sheet drying, handsheet dryer, 5269-2, 54358
Full Description
Rapid Köthen Dryer Table
Code: P.405.Dx
Device description

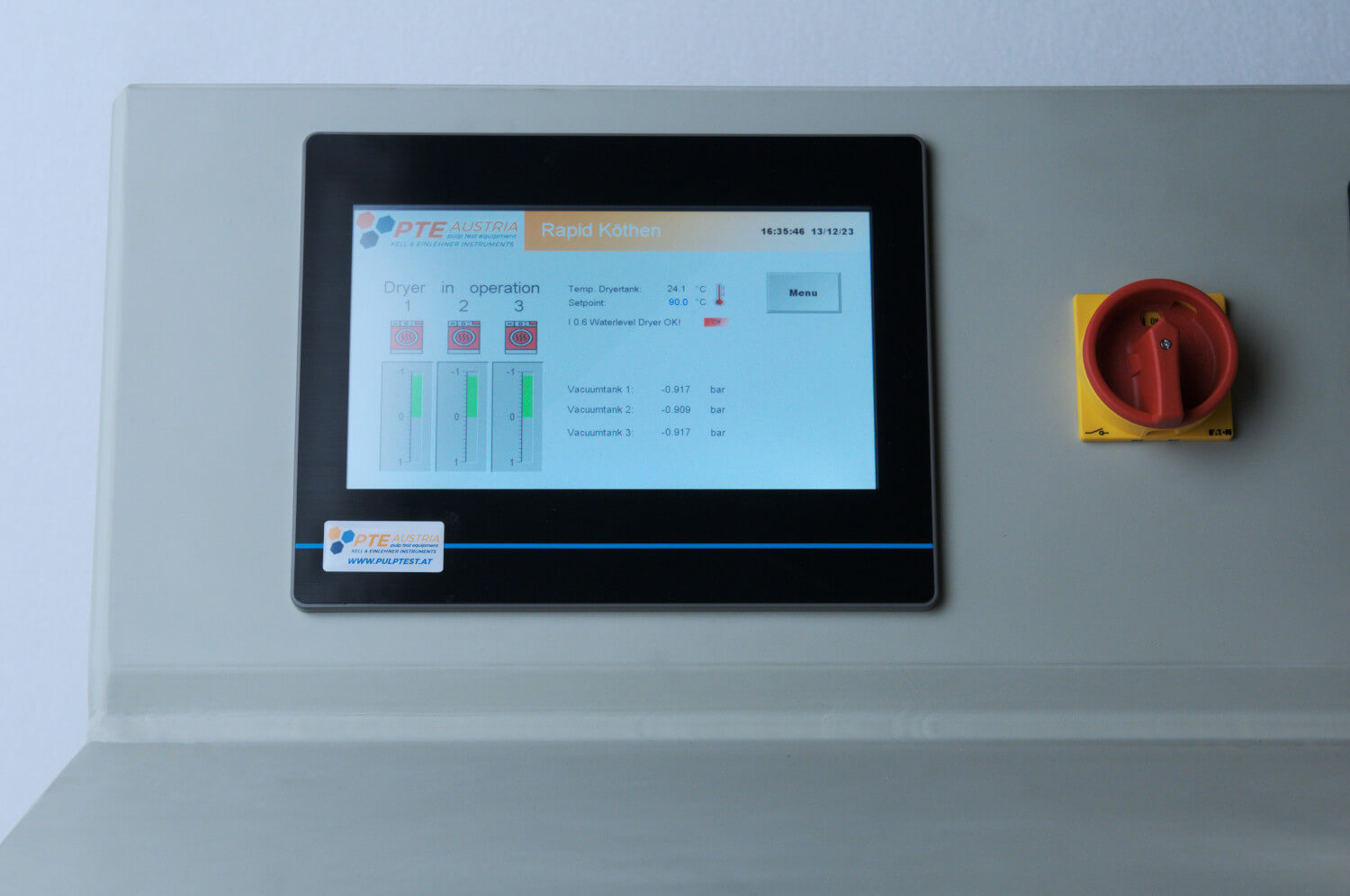

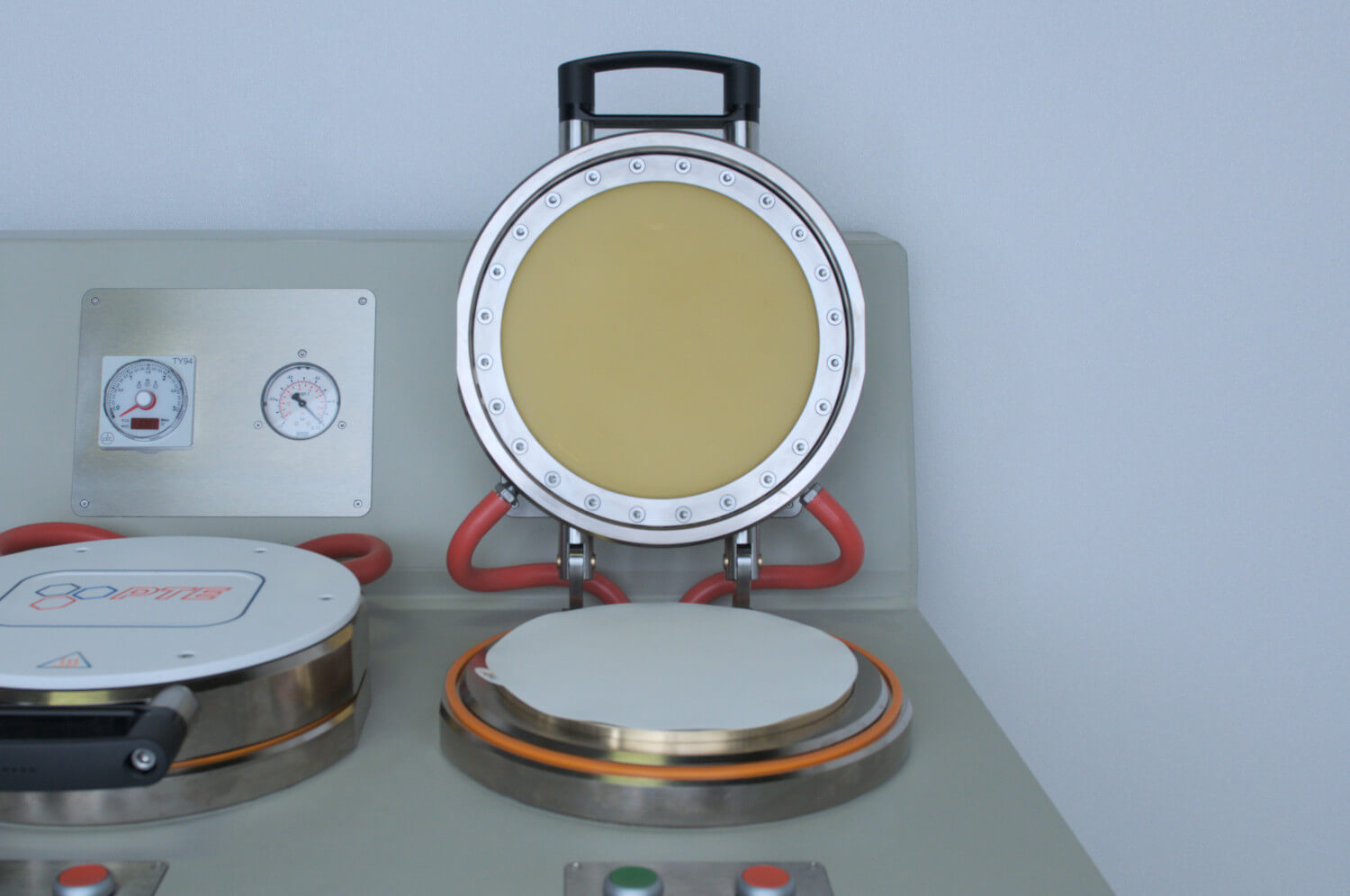

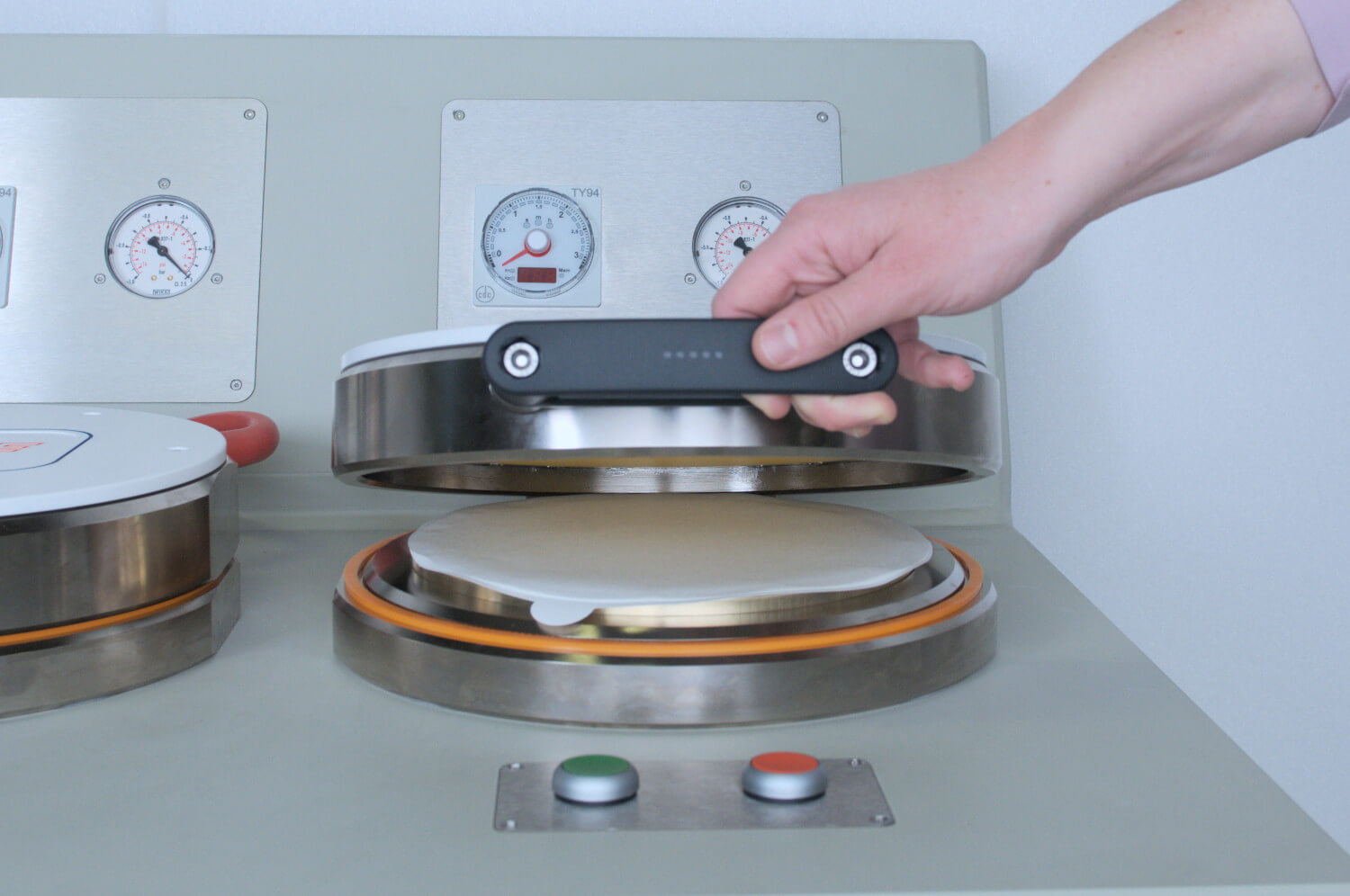

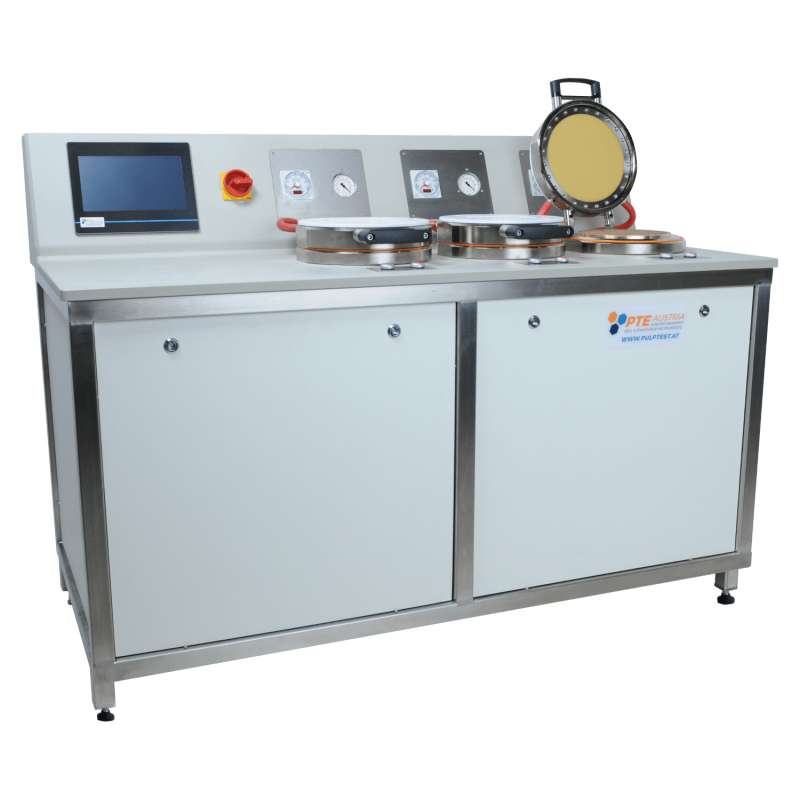

The Rapid Köthen drying table is mounted on a torsion-resistant stainless steel frame. This robust substructure houses the pump, the hot-water bath, and other components. The control module with an integrated touchscreen is located on the left side of the worktable, while the dryers are housed on the right side. To provide more workspace, only the most essential switches are installed on the tabletop. The parameters for the drying process can be conveniently controlled via the touchscreen.
Features
- premium corrosion resistant material
- easy operation via integrated touchscreen
- easy accessible main switch
- suction of air inside the dryers via vacuum pump
Connections
| Voltage | 400 V, 50 Hz |
| Compressed air | 600 kPa |
| Water | 200 kPa |
| Drain | Ø 50 mm drain pipe |
Specifications
| Water circulation | 3-6 l/min acc standards |
|---|---|
| Water temperatur | 93 – 97°C acc standards, individually adjustable |
Models
| Code | Article |
|---|---|
| P.405.D1 | Dryer Table with one dryer |
| P.405.D2 | Dryer Table with two dryers |
| P.405.D3 | Dryer Table with three dryers |
| P.405.D4 | Dryer Table with four dryers |
| P.405.D5 | Dryer Table with five dryers |
Applicable standards
ISO 5269-2; DIN 54358
