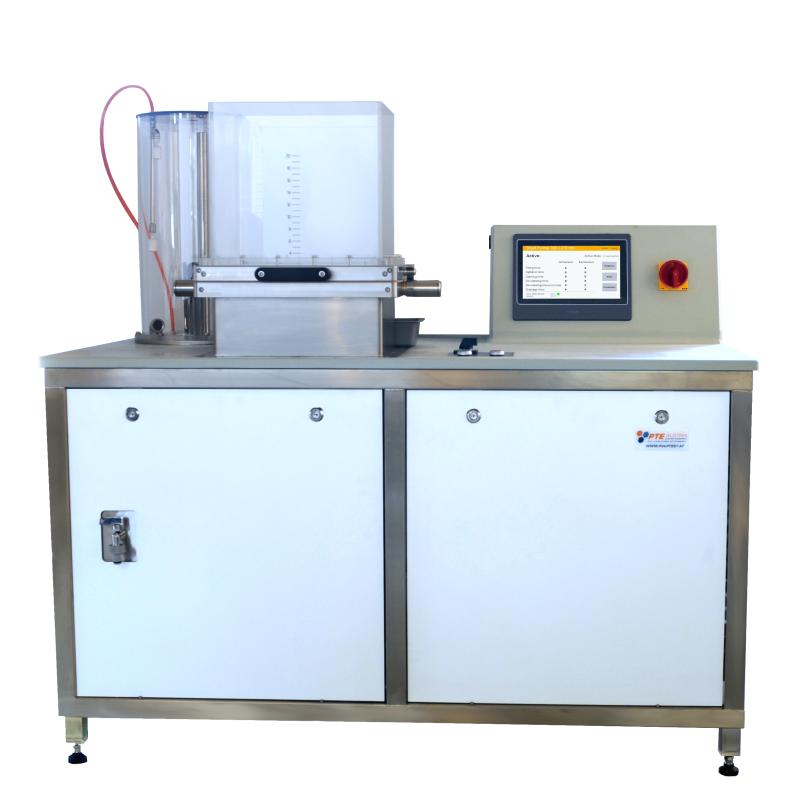

Rapid Köthen – Square & Rectangular
For preparing laboratory sheets from cellulose using the Rapid Köthen method for physical testing.
Full Description
CODE: P.506.XXX.XX
Device description
The square or rectangular sheet former is mounted on a robust base with a torsion-resistant stainless steel frame. The forming column, the white water tank (depending on the model) and a control panel for manual operation are located on the left-hand side of the waterproof worktop. An easy-to-use touchscreen display and the main switch are positioned higher up (for improved usability) on the right-hand side. To maximise the work surface area, only the essential switches are fitted to the worktop. The fully automatic sheet-forming process can be controlled intuitively and easily via the PTE Austria software installed on the touchscreen display. It is possible to switch to manual operation at any time.
Features
- Top-notch quality and craftsmanship
- Housed in a sturdy stainless steel frame
- Former column made of stainless steel and water-resistant premium acrylic glass
- Integrated waterproof touchscreen panel
- Easy and intuitive operation via touch display
- Fully automatic sheet forming process
- Additional 6-position switch for manual operation at any time
White water circulation system – features
- White water tank to safe water during the sheet forming process
- White water in tank heatable up to 60°C
- Adjustable water source: tapwater or white water (process water)
- Faucet on front side to draw white water for chemical analysis
Connections
| Voltage | 230 V, 50 Hz AC without dryer / 400 V, 50 Hz AC with dryer |
| Compressed air | 400–600 kPa |
| Water | Water connection required |
| Drain | Ø 50 mm drain pipe |
Models
| automatic / automatic with white water circulation | |||
|---|---|---|---|
| Code | Type | Dryer | System |
| P.506.xxx.xx | square / rectangular | 0-3 |
Applicable standards
ISO 5269-2; DIN 54358
