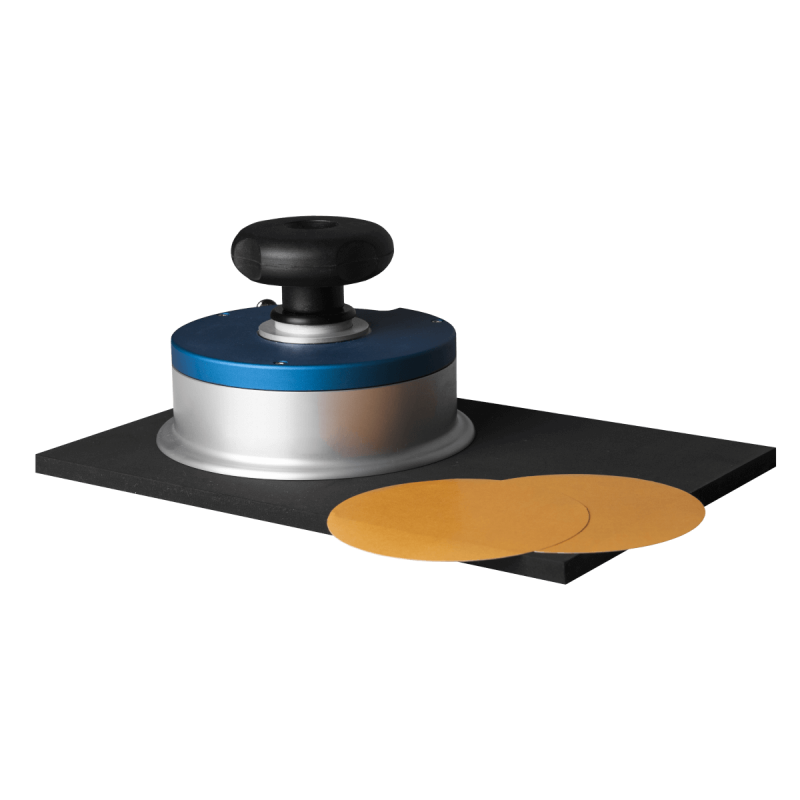

Round Sample Cutter
For the preparation of round samples for grammage determination.
Also searched as: round sample cutter, circular cutter, sample preparation, paper cutting, circular sample cutter manual pte pulp test equipment gmbh
Full Description
Manually
Code: D.513.xxx
Device description
Sharp, circularly guided blades produce true-to-size, round samples with absolutely smooth edges. Even critical materials such as thin foils, tissue paper, corrugated cardboard, hosiery, non-woven fabrics, carpets, artificial leather, fluffy or velvety fabrics can be cut without any problems. The cutting base is made of Poro rubber into which the blades can safely cut. The standard device has a cutting depth of 5 mm, but some models are also available with a cutting depth of 10 mm.
Models
| Code | Sample size |
|---|---|
| D.513.010 | 10 cm² = Ø 35,7 mm |
| D.513.025 | 25 cm² = Ø 56,4 mm |
| D.513.050 | 50 cm² = Ø 79,8 mm |
| D.513.100 | 100 cm² = Ø 112,8 mm |
| D.513.D47 | 17.34cm² = Ø 47 mm |
| D.513.D50 | 19.63 cm² = Ø 50 mm |
